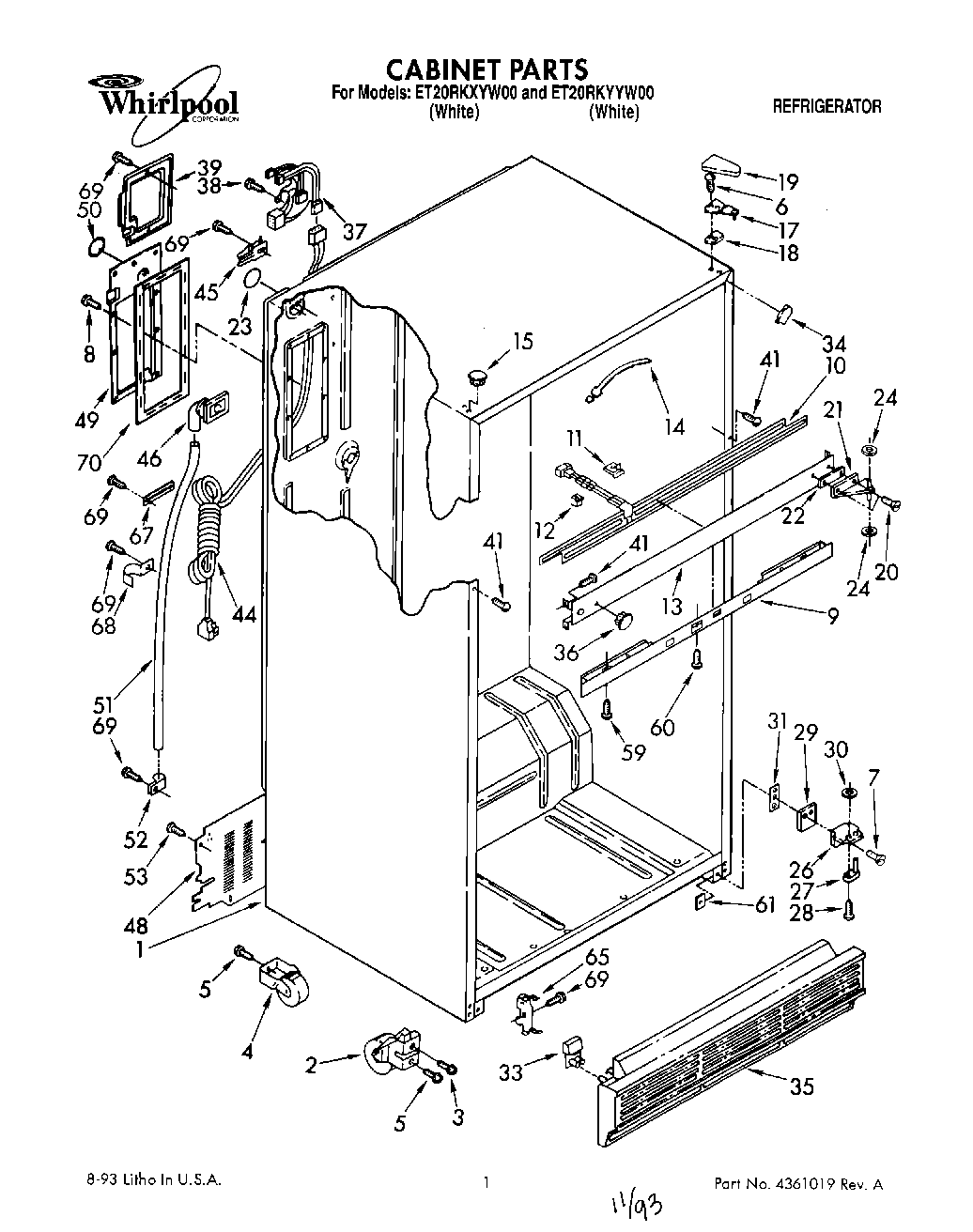

ET20RKXYW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP999367 Whirlpool Refrigerator Screw
7	Screw
8	WP489464 Whirlpool Refrigerator Screw
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail (White)
14	Clip, Strap
15	Hole Plug (6) (Almond)
15	WP2151652 Whirlpool Refrigerator Button Plug
17	Hinge, Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
20	WP489349 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	Hole Seal
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Spacer
30	WP487802 Whirlpool Refrigerator Washer
31	Shim, Bottom
33	Corner Filler, Grille (White)
34	Filler, Wrapper Corner (2) (White)
35	Grille (White)
36	Hole Plug (4) (White)
37	Cabinet, Wiring Assembly
38	WP250830 Whirlpool Refrigerator Screw
39	Cover, Wiring
44	Cord, Service
45	Clamp
46	Fitting, Drain
48	Cover, Unit
49	Cover, Plug
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 836077
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap Plate (2)
65	WP2155013 Whirlpool Refrigerator Clip
67	Tube Clamp (2)
68	WPL 1110564
69	WP489478 Whirlpool Refrigerator Screw
70	WPL 1114548
