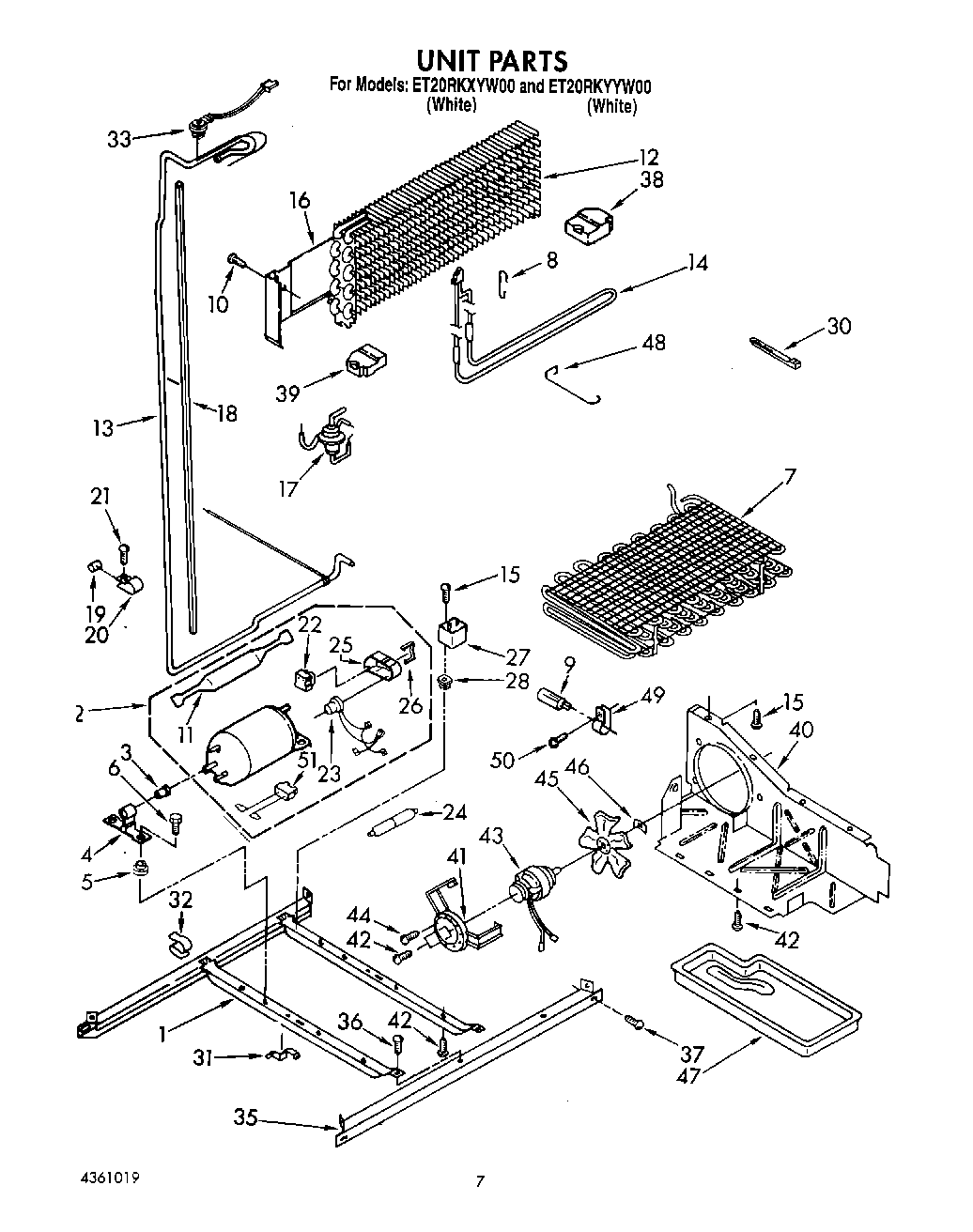

ET20RKXYW00 05 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor Kit (Includes Items 11, 22, 23, 25, 26, 27) (Service Compressor May Look Different Than O
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	876811 Whirlpool Grommet
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
9	Capacitor, Start
10	WP965173 Whirlpool Dishwasher Screw
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Heat, Exchanger
14	Heater, Defrost
15	WP489478 Whirlpool Refrigerator Screw
16	Heat Shield Evaporator
17	Valve, Fluid
18	WP2002171 Whirlpool Refrigerator Sleeve
19	Dampener (2)
20	Clamp Tube
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Relay (See Overload)
23	Overload
23	OVERLOAD
24	Muffler
25	Cover
25	Terminal Cover (Service)
26	Strap, Cover
26	Strap
27	Running Capacitor (Service)
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
30	Strap
31	Clip (2)
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35	Unit Mounting Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Support, Heater
39	Support (L.S.)
40	Air, Baffle
41	Bracket, Motor
42	Screw, 8 x 3/8
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan, Blade
46	WP486692 Whirlpool Refrigerator Nut
47	WPW10614158 Whirlpool Refrigerator Evaporator Tray
48	1105612 Whirlpool Fan Guard
49	Tube Clamp
50	WP489128 Whirlpool Refrigerator Screw
51	VALVE, ACCESS (5/8“)
51	978026 Whirlpool Refrigerator Primary Valve
51	978027 Whirlpool Refrigerator Primary Valve
51	876764 Whirlpool Refrigerator Primary Valve
51	978030 Whirlpool Refrigerator Valve
51	WP978025 Whirlpool Refrigerator Valve
51	WP2172890 Whirlpool Refrigerator Wire
51	VALVE, ACCESS (1/2“)
