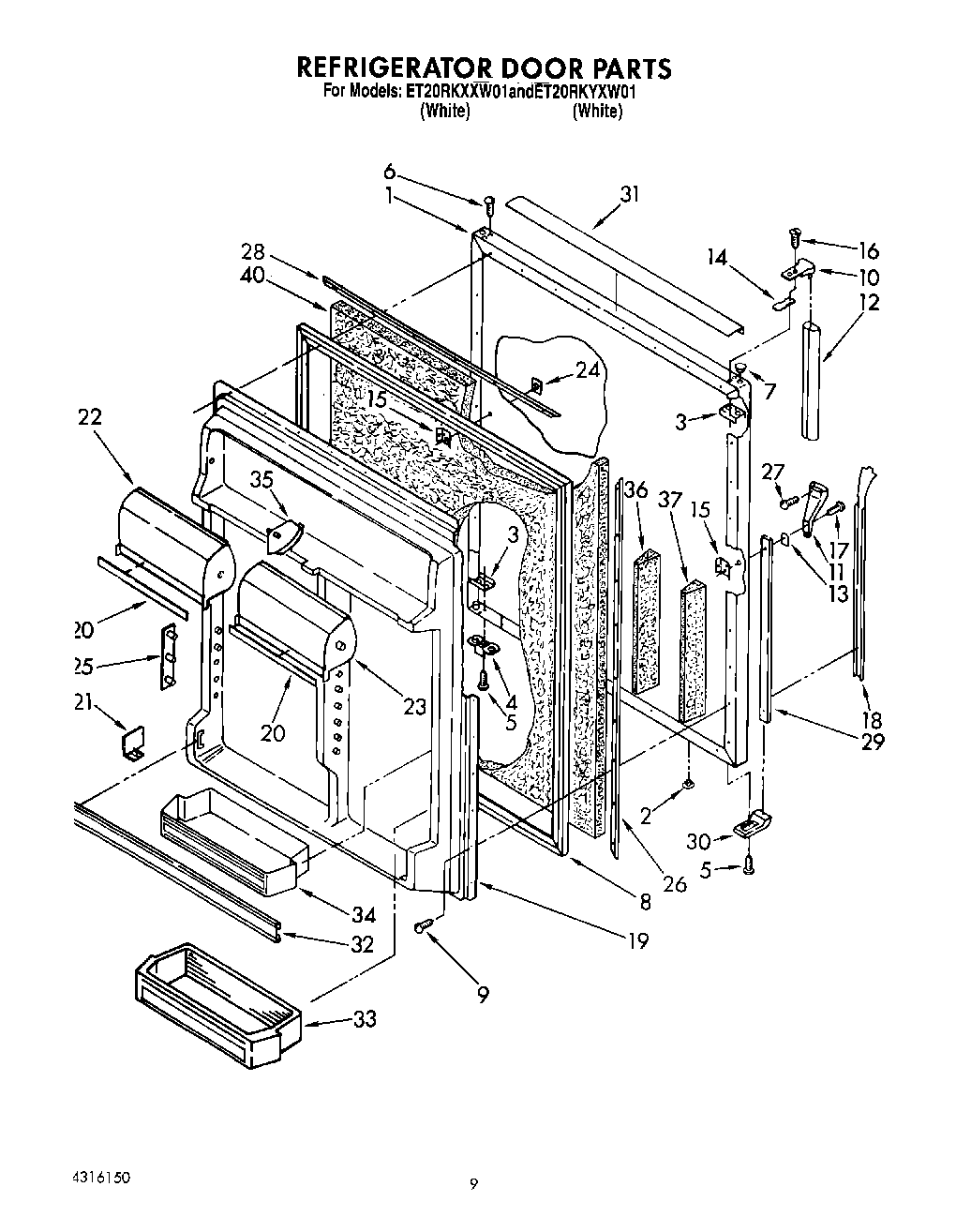

ET20RKYXW01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 27) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle (White)
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider (3)
22	Compartment Door, Left Side
23	Compartment Door, Right Side
24	WP2189000 Whirlpool Refrigerator Handle Plug
25	Pin Plate (8)
26	Gasket, Retainer
27	Screw
28	Gasket Retainer, Top & Bottom
29	Retainer, Insert
30	WPL 1105804
31	Trim, Door
32	Trim, Door Shelf
33	WPL 2148549
34	WPL 2148550
35	WP1118001 Whirlpool Hinge Pin
36	WPL 1122711
37	WPL 1122709
40	Trimless Black Decor Panel R.H.
40	Trimless Black Decor Panel L.H.
40	Blac
40	WPL 819288
40	WPL 876029
40	WPL 819344
