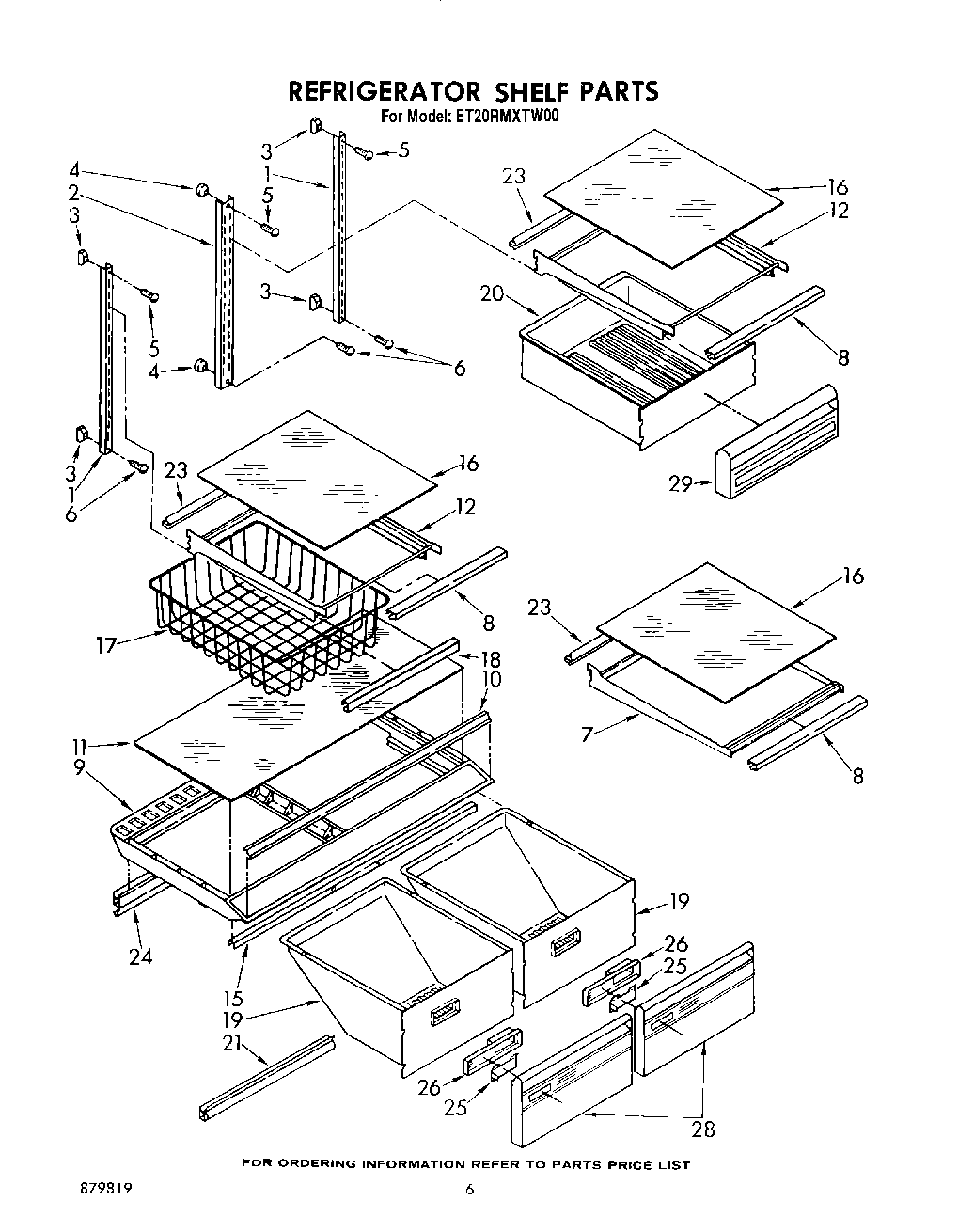

ET20RMXTF00 05 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw (Repair)
5	Screw, 8-32 x 1-1/4 (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (3)
8	Trim, Shelf
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Basket, Utility
18	Trim, Basket
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
23	Reflector, Shelf
24	Gasket, Rear
25	Slide, Humidity Control
26	Housing, Humidity Control
28	Crisper, Pan Front
29	Meat Pan, Front
