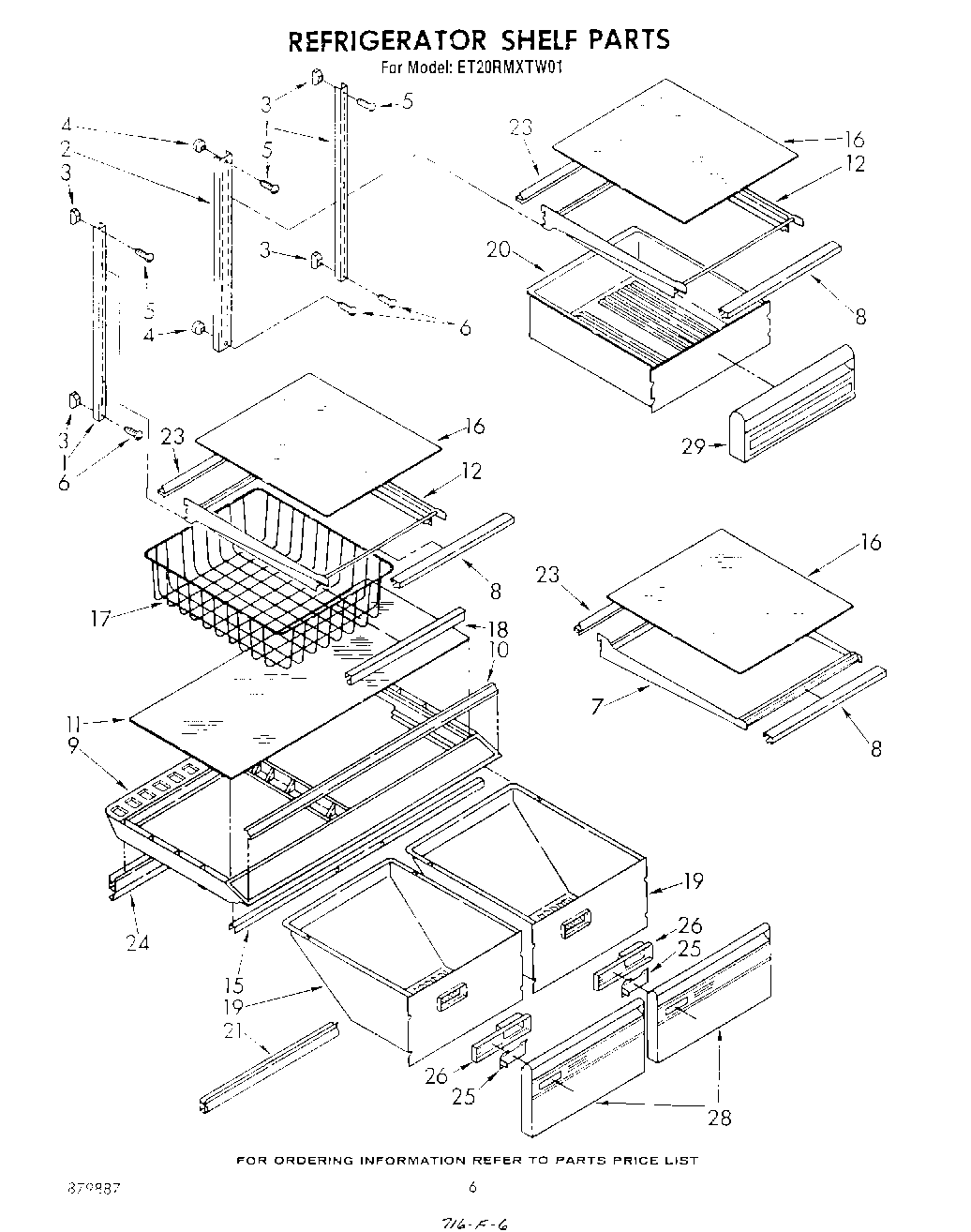

ET20RMXTF01 05 – REFRIGERATOR SHELFadmin2025-04-26T12:45:08+00:00ET20RMXTF01 05 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | 520965 Whirlpool Refrigerator Support |
| 4 | Screw Support, Center Ladder (2) |
| 5 | Screw (Repair) |
| 5 | Screw, 8-32 x 1-1/4 (3) |
| 6 | WP488163 Whirlpool Refrigerator Screw |
| 7 | Shelf, Cantilever (3) |
| 8 | Trim, Shelf |
| 9 | WP2151749 Whirlpool Refrigerator Cover |
| 10 | Trim, Crisper Cover |
| 11 | Glass, Crisper Cover |
| 12 | Pan Shelf, Cantilever |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | Shelf, Glass |
| 17 | Basket, Utility |
| 18 | Trim, Basket |
| 19 | Pan, Crisper |
| 20 | Pan, Meat |
| 21 | Gasket-Front |
| 23 | Reflector, Shelf |
| 24 | Gasket, Rear |
| 25 | Slide, Humidity Control |
| 26 | Housing, Humidity Control |
| 28 | Crisper, Pan Front |
| 29 | Meat Pan, Front |
