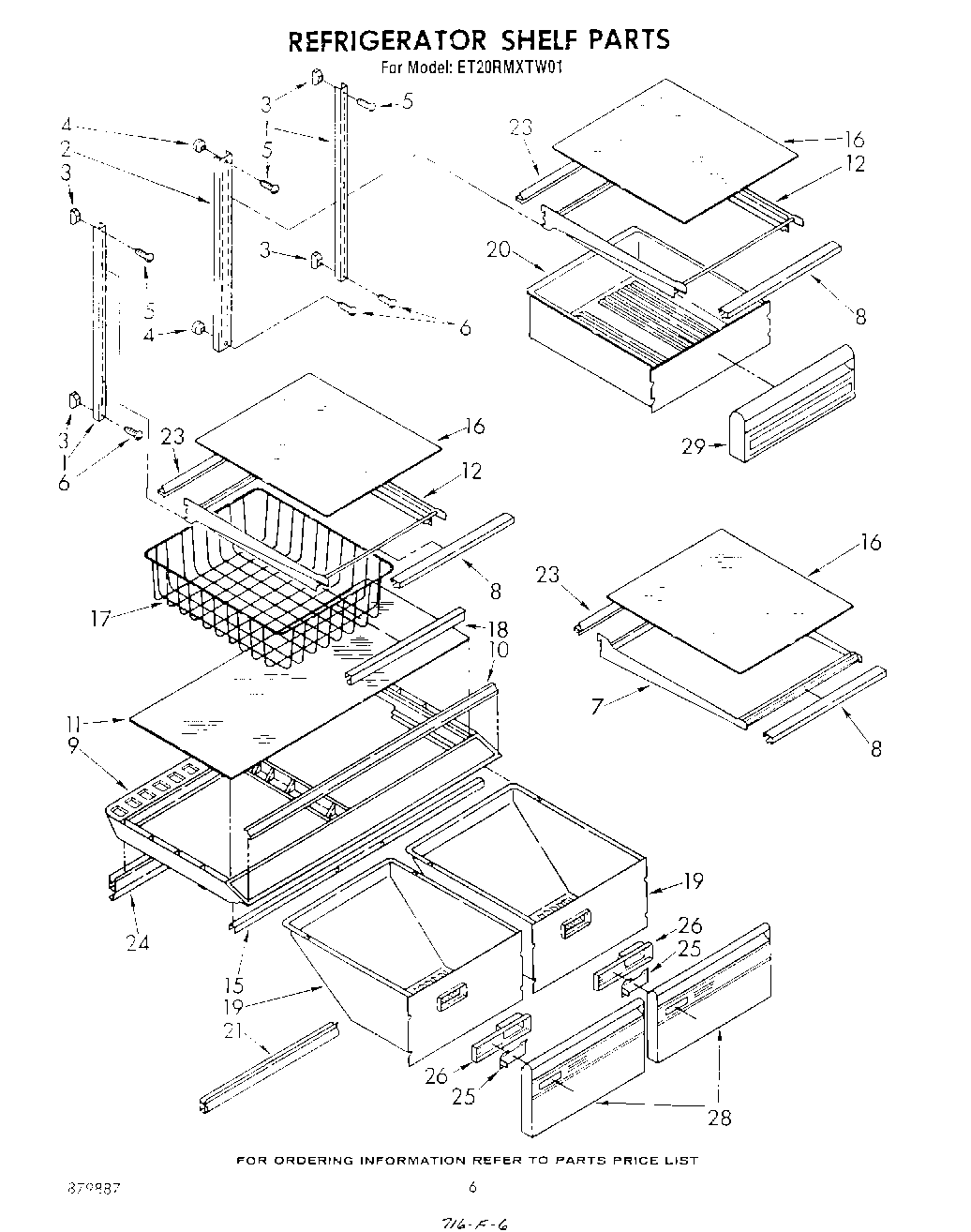

ET20RMXTW01 05 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4Screw Support, Center Ladder (2)
5Screw (Repair)
5Screw, 8-32 x 1-1/4 (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever (3)
8Trim, Shelf
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
15WP2172748 Whirlpool Drawer Support
16Shelf, Glass
17Basket, Utility
18Trim, Basket
19Pan, Crisper
20Pan, Meat
21Gasket-Front
23Reflector, Shelf
24Gasket, Rear
25Slide, Humidity Control
26Housing, Humidity Control
28Crisper, Pan Front
29Meat Pan, Front
