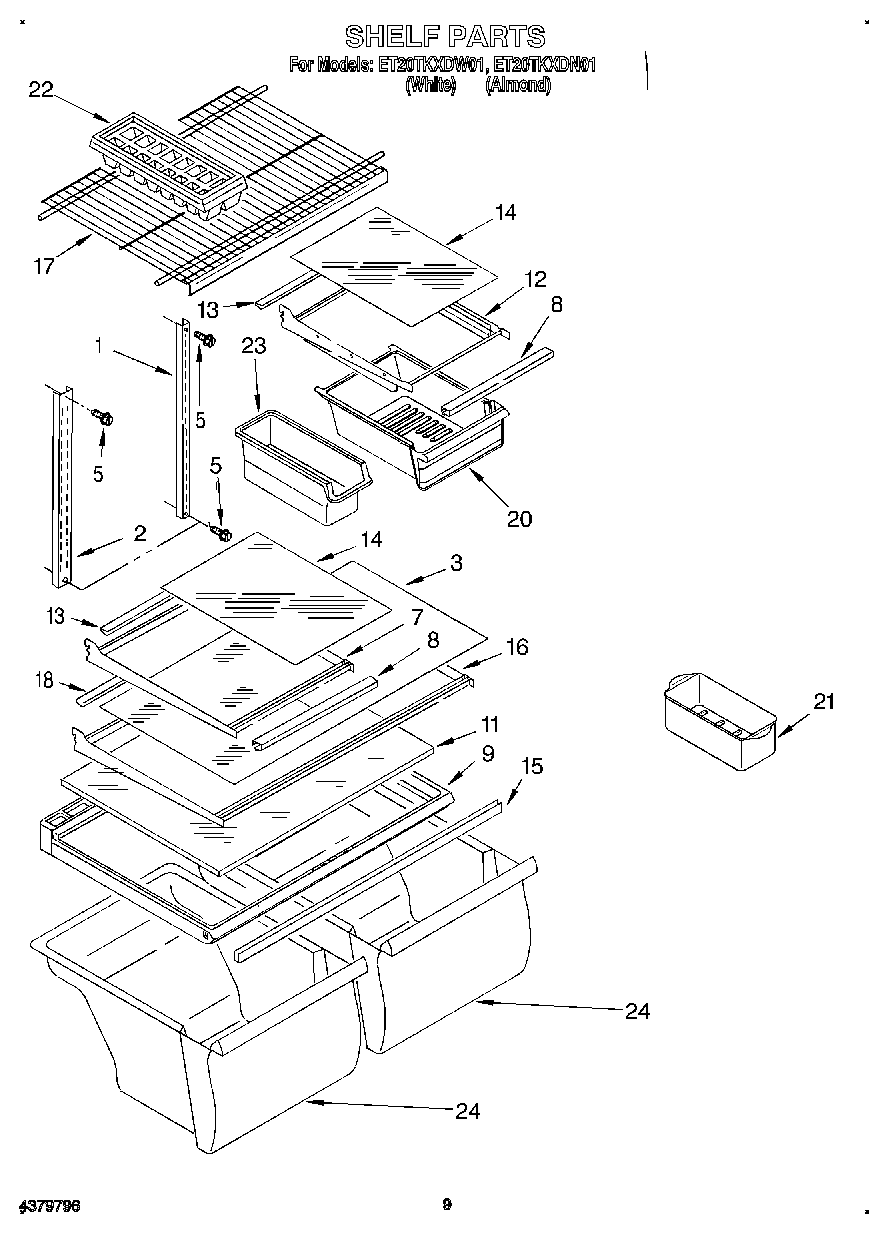

ET20TKXDN01 05 – SHELF, LIT/OPTIONAL

ET20TKXDN01 05 – SHELF, LIT/OPTIONAL

Written by

in

ET20TKXDN01 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
Torx Key
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
WPL LIT677971
WPL LIT2172667
WPL LIT2182509
WPL LIT2180401
1Shelf, Ladder (2)
2Shelf, Ladder Center
3Glass, Full Shelf
5W11544659 Whirlpool Refrigerator Screw
7Shelf, Cantilever
8Trim, Shelf
9WP2314549 Whirlpool Refrigerator Cover
11WP2176225 Whirlpool Glass Shelf
12Pan Shelf, Cantilever
13Retainer, Glass
14Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
18Trim, Shelf Rear
20WP2218132K Whirlpool Crisper Meat Pan
21W10136387A Whirlpool Refrigerator Egg Container
22WP841180A Whirlpool Microwave Glass Turntable Tray
23WP982704 Whirlpool Refrigerator Container
24606755 Whirlpool Refrigerator Bag
24799344 Whirlpool Refrigerator Paint
2472017 Whirlpool Appliance Touch-Up Paint White
24WPL 799832
24876370 Whirlpool Refrigerator Insulation
24212643 Whirlpool Refrigerator Permagum Sealer
24TAPE, VINYL (3/4 X 108“)
24WP503695 Whirlpool Refrigerator Sealer
24350956 Whirlpool Spray Assembly
24350930 Whirlpool White Spray Paint
24WP542638 Whirlpool Refrigerator Grease
24WP72107 Whirlpool Touchup
24Almond (Uncut)
24W10854037 Whirlpool Refrigerator Crisper Pan
24WPL 876029
24285006 Whirlpool Spray
2472032 Whirlpool Touch Up Paint Black
24511873 Whirlpool Refrigerator Paint
24CEMENT, ALUMILASTIC (1 1/4 OZ.)
24WPL 799833
24350942 Whirlpool Spray Paint
24Door Reversal Instructions
24833938 Whirlpool Refrigerator Terminal
24WP505587 Whirlpool Refrigerator Sealer
