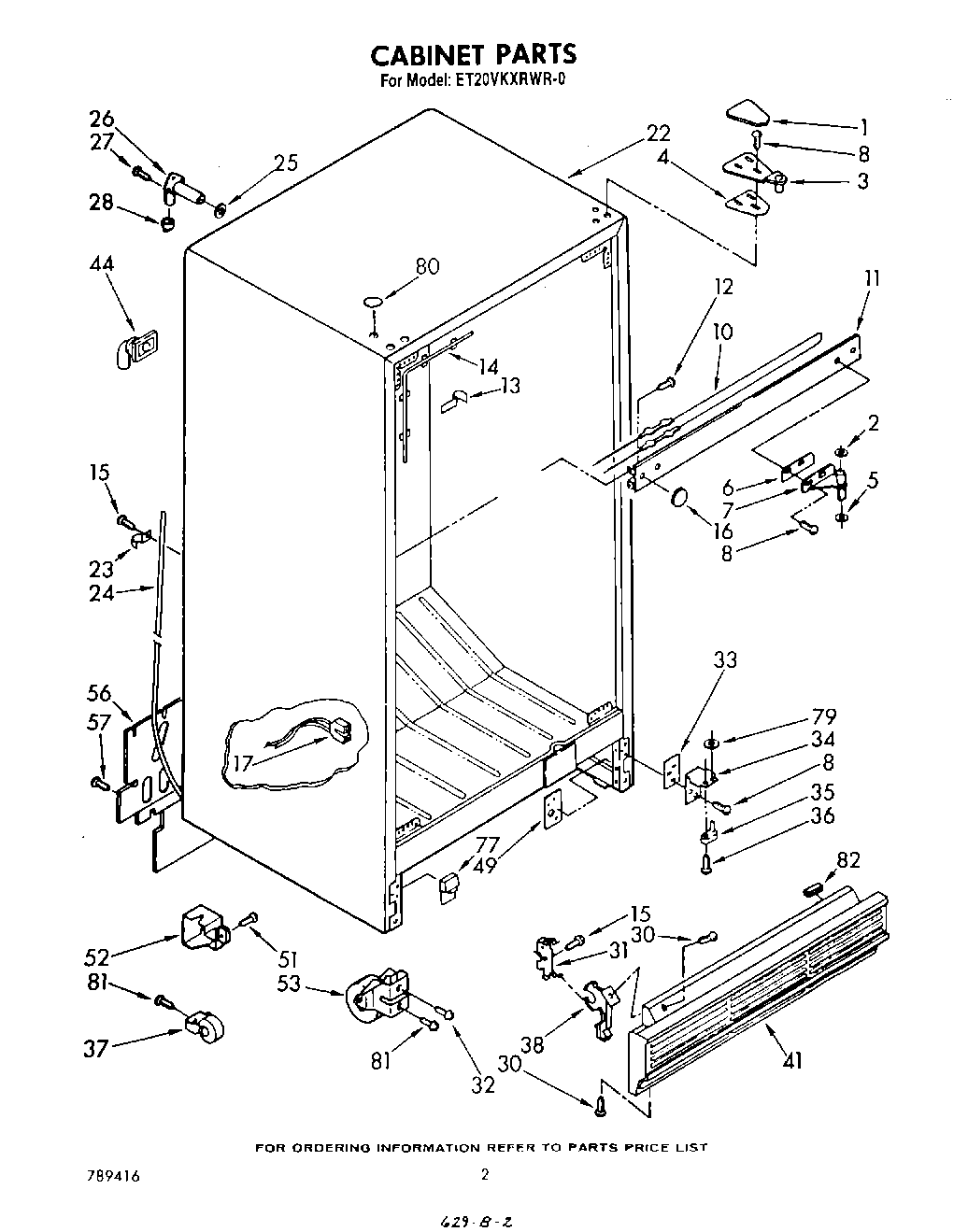

ET20VKXRWR0 02 – CABINET

ET20VKXRWR0 02 – CABINET

Written by

in

ET20VKXRWR0 02 – CABINET

Products

Position	Product
1	Hinge, Cover (Coffee)
1	Hinge Cover (Toast)
1	1119787 Whirlpool Refrigerator Hinge Cover
1	Hinge Cover (Golden Harvest)
2	WP488296 Whirlpool Washer Refrigerator
3	Hinge, Top
4	Shim, Hinge
5	WP487802 Whirlpool Refrigerator Washer
6	Shim, Hinge Center
7	Hinge, Center
8	WP999367 Whirlpool Refrigerator Screw
8	Screw (Repair)
10	Heater, Mullion
11	Center Rail (Almond)
11	Center Rail (Golden Harvest)
11	WPL 1100303
11	Center Rail (Coffee)
11	Center Rail (White)
11	WPL 1100304
12	Screw, 8 x 3/8
12	Screw (Repair)
13	WPL 935663
14	WPL 936075
15	W11624204 Whirlpool Screw
16	Hole Plug (Golden Harvest)
16	Hole Plug (Coffee)
16	Hole, Plug (Almond)
16	Hole, Plug (White)
16	Hole Plug (2) (Platinum)
16	Plug, Hole (2) (Toast)
17	WPL 548734
22	Cabinet (Not A Serviceable Part)
23	WPL 836077
24	8316810 Whirlpool Refrigerator Drain Tube
25	WP1106508 Whirlpool Refrigerator Gasket
26	WP2196157 Whirlpool Fill Tube
27	WP98165 Whirlpool Screw
28	WP487996 Whirlpool Refrigerator Cap Tube
30	WPL 489085
31	WPL 989068
32	Screw, 5/16-24 x 1
33	Shim, Bottom Hinge
34	Hinge, Bottom
35	Hinge Pin, Bottom
36	Screw 10-32 x 5/16
37	WPW10250570 Whirlpool Refrigerator Cabinet Roller
38	WP944224 Whirlpool Refrigerator Support
41	Exterior, Grille (Platinum)
41	Exterior, Grille (Almond)
41	Exterior, Grille (Toast)
41	Exterior, Grille (White)
41	Exterior, Grille (Coffee)
41	Exterior, Grille (Golden Harvest)
44	WPL 841687
49	Tap Plate
51	WP488729 Whirlpool Refrigerator Door Screw
52	WPL 549947
53	Roller, Front
56	WPL 850459
77	Filler, Grille (Toast)
77	WPL 989929
77	WPL 989931
77	Corner, Filler (
77	WPL 989928
77	Filler, Grille (Platinum)
80	Hole Plug (3) (Platinum)
80	Hole Plug (Coffee)
80	Hole Plug (3) (Toast)
80	Hole Plug (2) (White)
80	Hole Plug (2) (Almond)
80	Hole Plug (2) (Golden Harvest)
81	Screw, 1/4-28 x 1/2 (2)
82	Bumper, Grille
