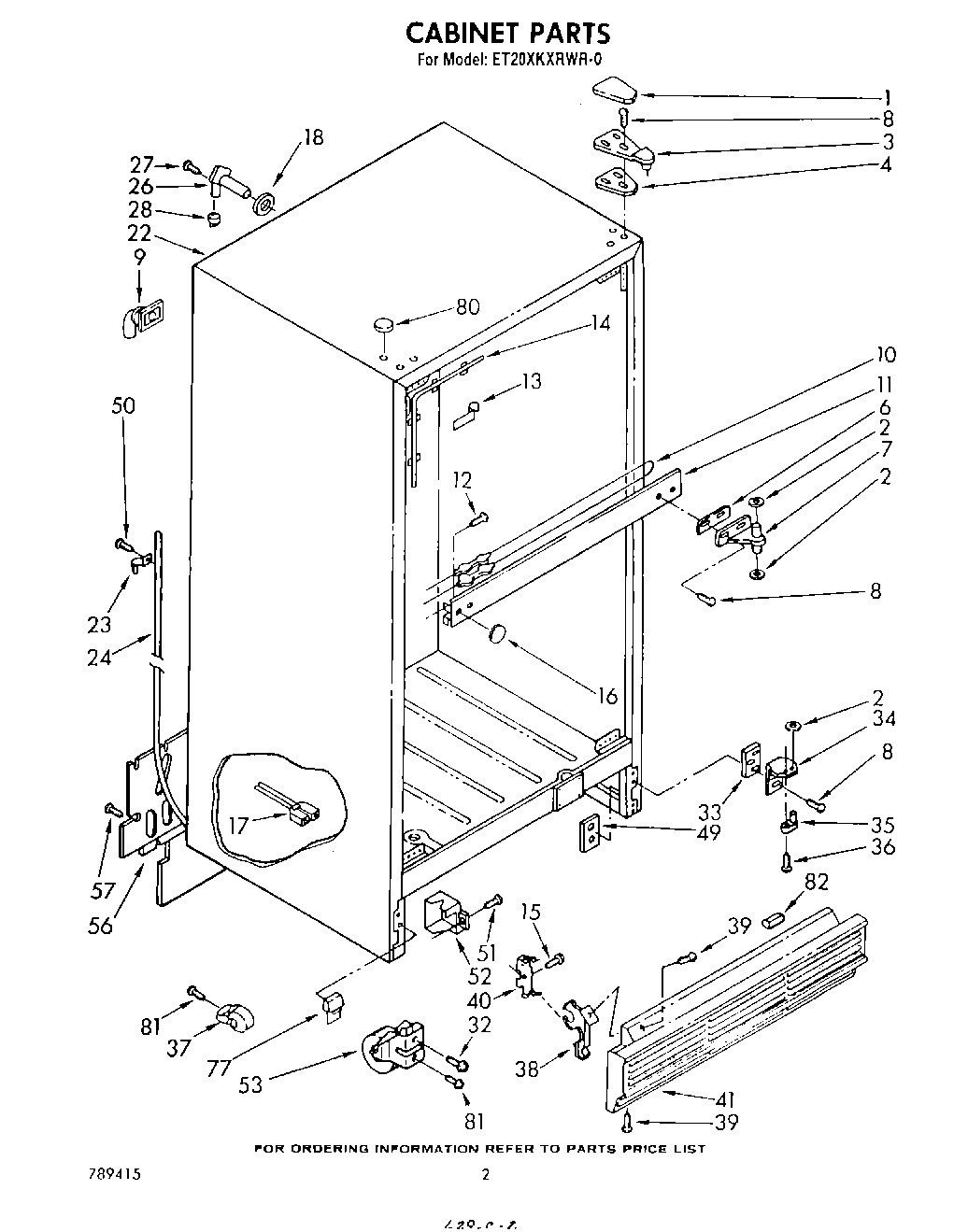

ET20XKXRWR0 02 – CABINET

Products

Position	Product
1	Hinge Cover (Toast)
1	1119787 Whirlpool Refrigerator Hinge Cover
1	Hinge Cover (Golden Harvest)
1	Hinge, Cover (Coffee)
2	WP487802 Whirlpool Refrigerator Washer
3	Hinge, Top
4	Shim, Hinge
6	Shim, Hinge Center
7	Hinge, Center
8	WP999367 Whirlpool Refrigerator Screw
8	Screw (Repair)
9	WPL 841687
10	Heater, Mullion
11	WPL 1100303
11	Center Rail (Almond)
11	Center Rail (Golden Harvest)
11	Center Rail (Coffee)
11	Center Rail (White)
11	WPL 1100304
12	Screw (Repair)
12	Screw, 8 x 3/8
13	WPL 935663
14	WPL 936075
15	W11624204 Whirlpool Screw
16	Hole Plug (Coffee)
16	Plug, Hole (2) (Toast)
16	Hole, Plug (Almond)
16	Hole, Plug (White)
16	Hole Plug (Golden Harvest)
16	Hole Plug (2) (Platinum)
17	WPL 548734
18	WP1106508 Whirlpool Refrigerator Gasket
22	Cabinet (Not A Serviceable Part)
23	WPL 836077
24	8316810 Whirlpool Refrigerator Drain Tube
26	WP2196157 Whirlpool Fill Tube
27	WP98165 Whirlpool Screw
28	WP487996 Whirlpool Refrigerator Cap Tube
32	Screw, 5/16-24 x 1
33	Shim, Bottom Hinge
34	Hinge, Bottom
35	Hinge Pin, Bottom
36	Screw 10-32 x 5/16
37	WPW10250570 Whirlpool Refrigerator Cabinet Roller
38	WP944224 Whirlpool Refrigerator Support
39	WPL 489085
40	WPL 989068
41	Exterior, Grille (Toast)
41	Exterior, Grille (Platinum)
41	Exterior, Grille (White)
41	Exterior, Grille (Coffee)
41	Exterior, Grille (Golden Harvest)
41	Exterior, Grille (Almond)
49	Tap Plate
50	WP489069 Whirlpool Compactor Screw
51	WP488729 Whirlpool Refrigerator Door Screw
52	WPL 549947
53	Roller, Front
56	WPL 850459
77	WPL 989931
77	WPL 989929
77	Filler, Grille (Platinum)
77	Filler, Grille (Toast)
77	WPL 989928
77	Corner, Filler (
80	Hole Plug (3) (Platinum)
80	Hole Plug (3) (Toast)
80	Hole Plug (2) (Golden Harvest)
80	Hole Plug (2) (Almond)
80	Hole Plug (2) (White)
80	Hole Plug (Coffee)
81	Screw, 1/4-28 x 1/2 (2)
82	Bumper, Grille
