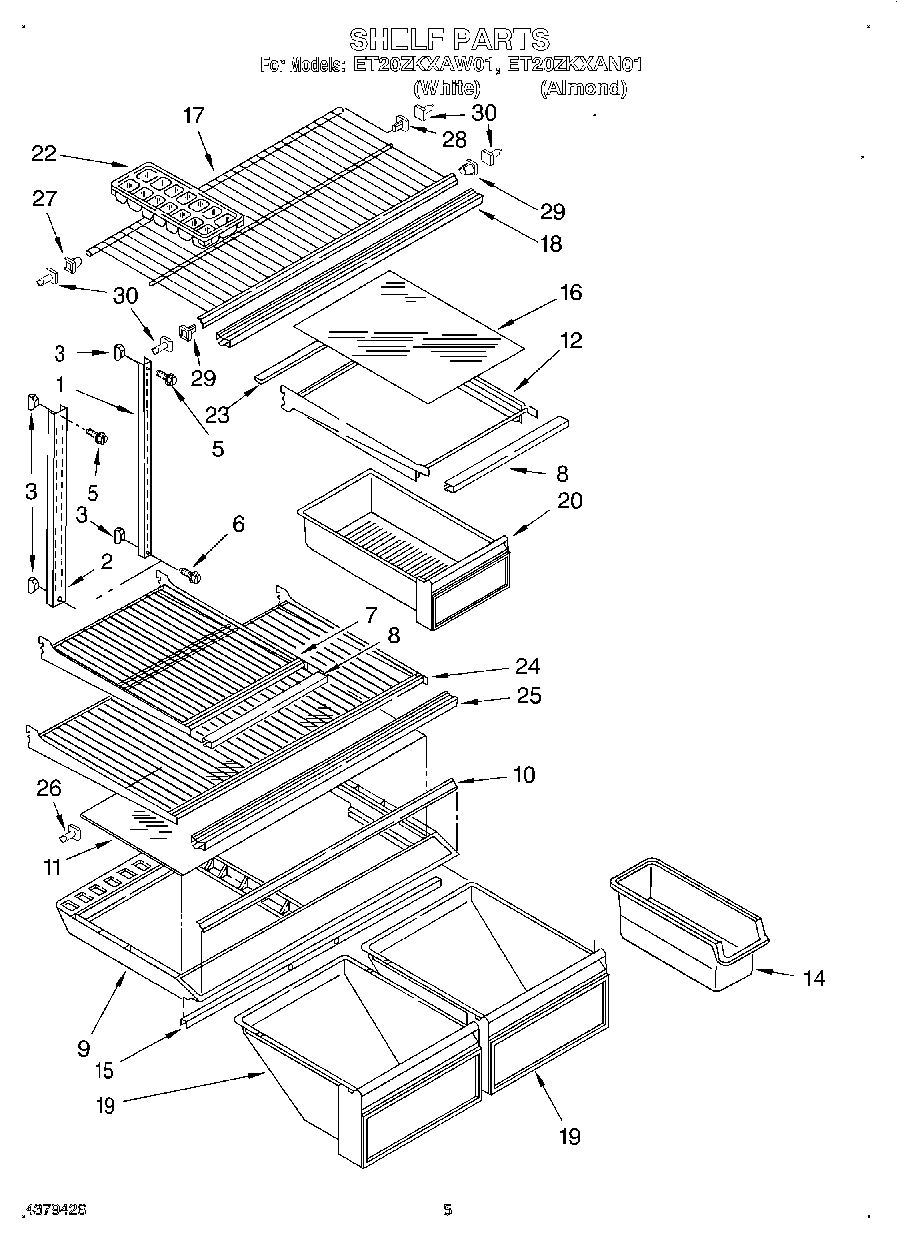

| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | 520965 Whirlpool Refrigerator Support |
| 5 | Screw (3) |
| 6 | WP488163 Whirlpool Refrigerator Screw |
| 7 | Shelf, Cantilever |
| 8 | Trim, Shelf |
| 9 | WP2151749 Whirlpool Refrigerator Cover |
| 10 | Trim, Crisper Cover |
| 11 | Glass, Crisper Cover |
| 12 | Pan Shelf, Cantilever |
| 14 | WP982704 Whirlpool Refrigerator Container |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | Glass, Shelf |
| 17 | Shelf, Freezer |
| 18 | Trim, Shelf Front |
| 19 | Pan, Crisper |
| 20 | Pan, Meat |
| 22 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 23 | Retainer, Glass |
| 24 | Shelf, Full Cantilever (2) |
| 25 | Trim, Shelf |
| 26 | W10854959 Whirlpool Refrigerator Shelf Stud |
| 28 | 819091 Whirlpool Refrigerator Shelf Stud |
| 29 | Stud, Front R.S. |
| 30 | Stud, Support |
