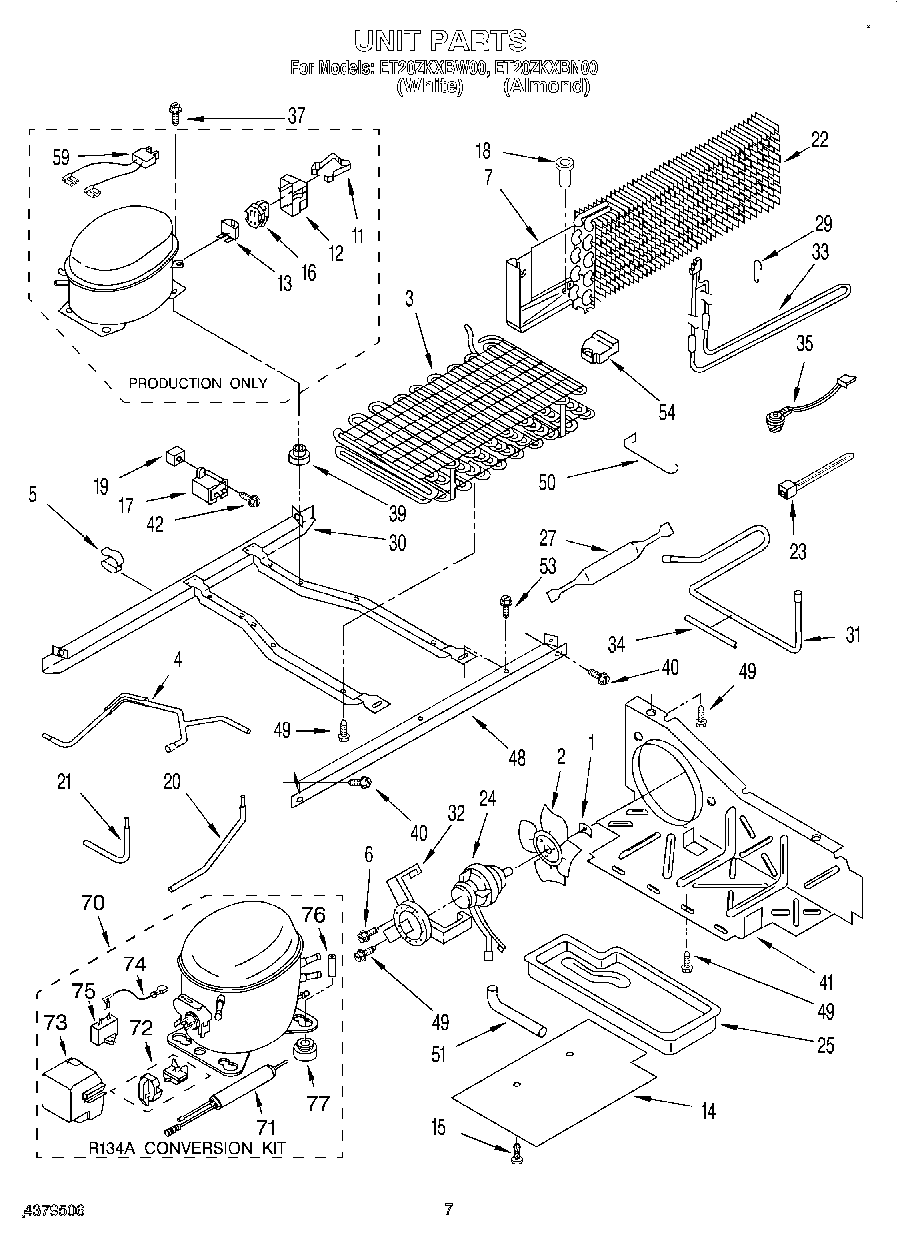

ET20ZKXBN00 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	Tube, Discharge
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
11	Strap
12	Cover
13	OVERLOAD
14	Cover-Unit Btm.
15	489396 Whirlpool Refrigerator Clip
16	Relay (See Overload)
17	Capacitor
18	Drain Fitting
19	Screw Grommet
20	Tube, Condenser To Heat Loop
21	2154109 Whirlpool Refrigerator Tube
22	Evaporator
23	WPW10339879 Whirlpool Wire Tie
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
27	W10843121 Whirlpool Refrigerator Tube
29	Support, Heater
30	Unit Mounting Frame
31	Tube, Suction
32	Fan, Motor Bracket
33	Heater, Defrost
34	SLEEVE
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
48	Unit Mounting Rail
49	WP489464 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	Screw, 1/4-28 x 1/2 (2)
54	Support (R.S.)
54	Support-Evaporator (L.S.)
59	WP2172890 Whirlpool Refrigerator Wire
70	876765 Whirlpool Primary Mounting Kit Refrigerator
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
73	WP2162358 Whirlpool Refrigerator Terminal Cover
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	978026 Whirlpool Refrigerator Primary Valve
77	VALVE, ACCESS (5/8“)
77	978027 Whirlpool Refrigerator Primary Valve
77	978030 Whirlpool Refrigerator Valve
77	WP978025 Whirlpool Refrigerator Valve
77	VALVE, ACCESS (1/2“)
77	876764 Whirlpool Refrigerator Primary Valve
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
