ET20ZKXBN00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

ET20ZKXBN00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

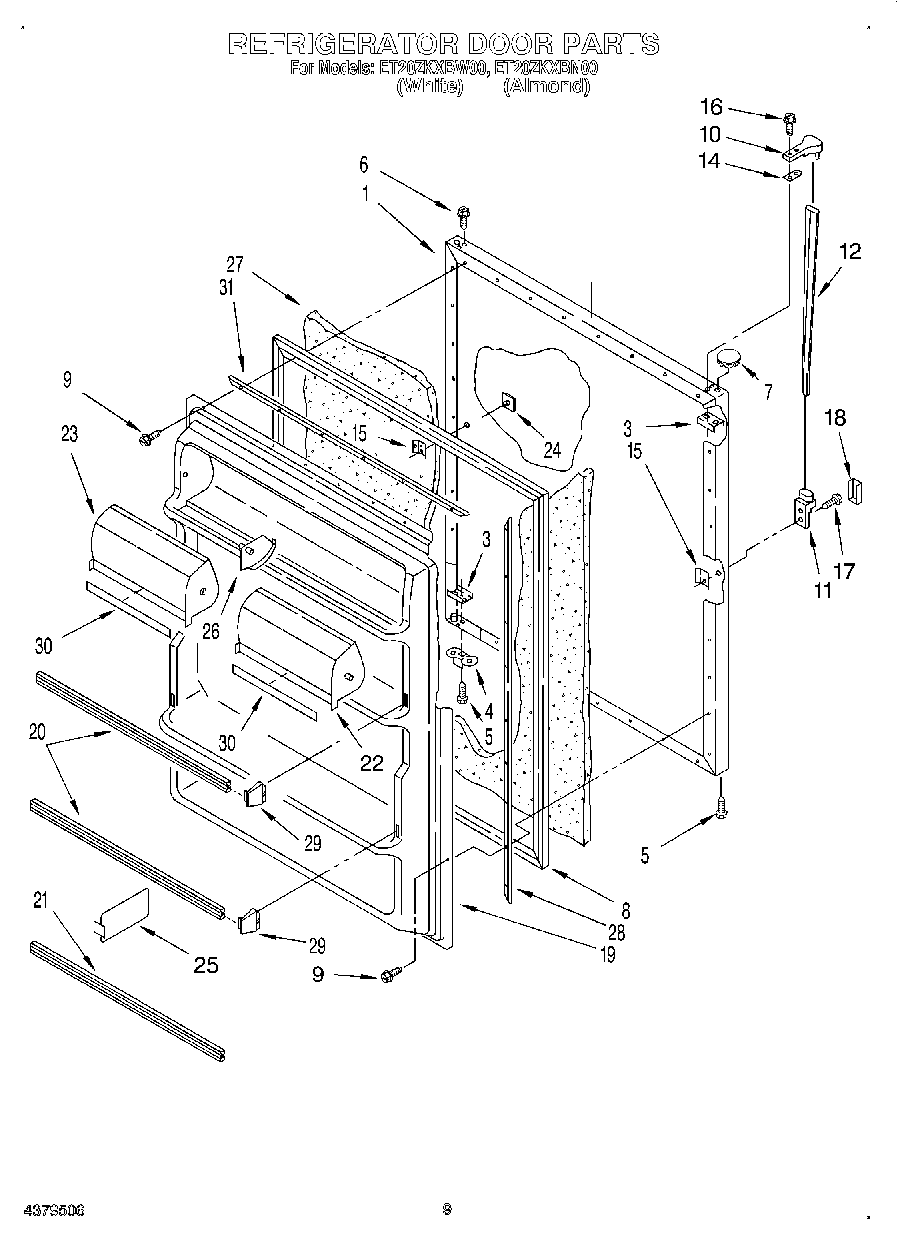

ET20ZKXBN00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2170724
	WPL LIT677971
	WPL LIT2154075
	WPL LIT2170977
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	WP2162555 Whirlpool Refrigerator White Door Handle
12	Handle, Center (Almond)
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door Shelf (2)
21	Trim, Door
22	Compartment Door (R.S.)
23	Compartment Door (L.S.)
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
25	Divider-Door
26	WP1118001 Whirlpool Hinge Pin
28	Gasket, Retainer
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30	Trim, Door Compartment
31	Gasket Retainer, Top & Bottom
31	212643 Whirlpool Refrigerator Permagum Sealer
31	Golden Harvest (Uncut)
31	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31	350930 Whirlpool White Spray Paint
31	Almond (Uncut)
31	Leveler (Thinner)
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	350956 Whirlpool Spray Assembly
31	72032 Whirlpool Touch Up Paint Black
31	350942 Whirlpool Spray Paint
31	285006 Whirlpool Spray
31	WPL 876029
31	WPL 799833
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	TAPE, VINYL (3/4 X 108“)
31	WP542638 Whirlpool Refrigerator Grease
31	WP505587 Whirlpool Refrigerator Sealer
31	WP503695 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	833938 Whirlpool Refrigerator Terminal
31	606755 Whirlpool Refrigerator Bag
31	511873 Whirlpool Refrigerator Paint
31	Door Reversal Instructions
