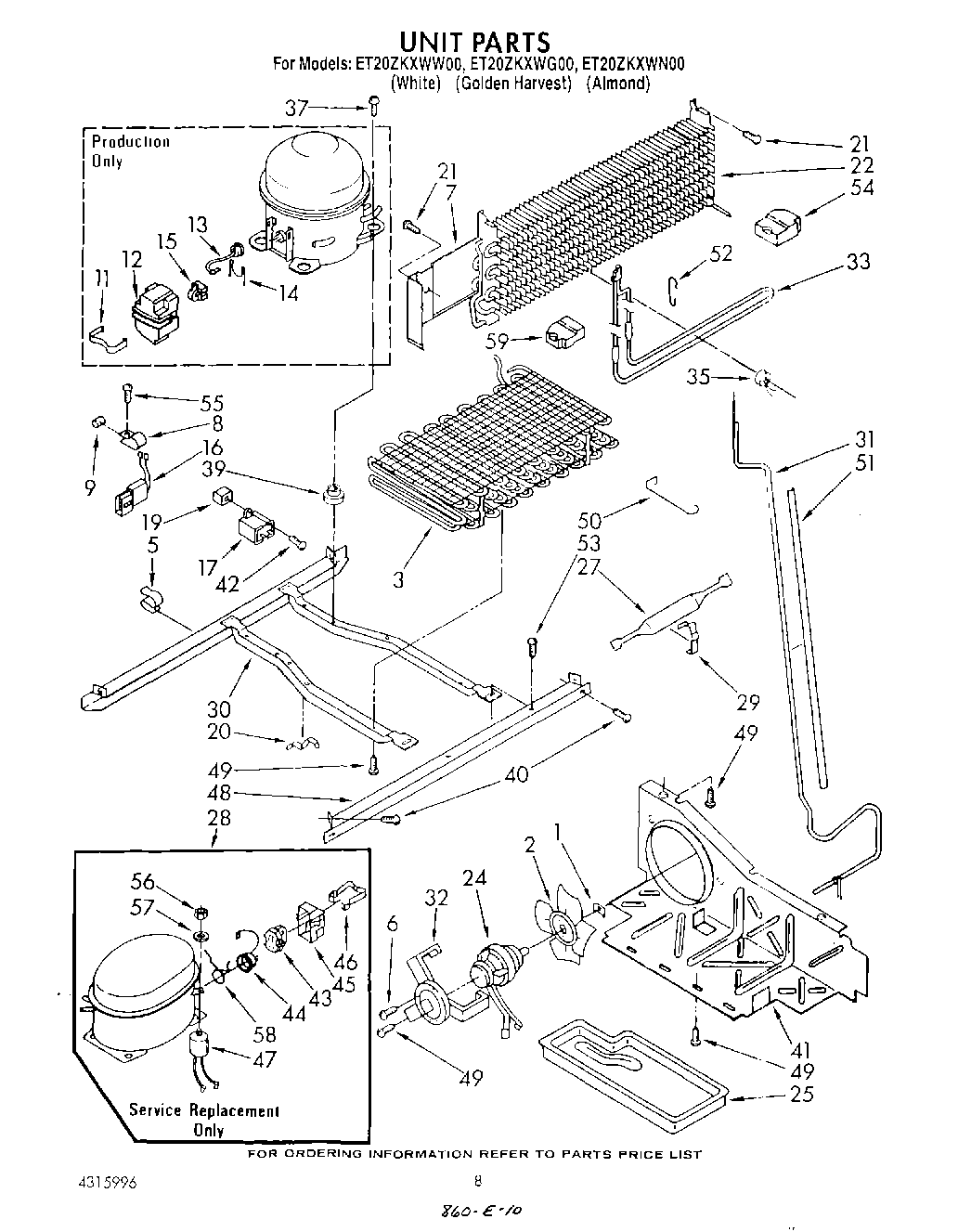

ET20ZKXWG00 07 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener (2)
11	case spring
12	Case, Relay
13	Overload
14	Spring, Overload
15	Relay
16	Housing Plug
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Screw Grommet
20	Clip (2)
21	W11624204 Whirlpool Screw
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Clamp, Dryer
30	Unit Mounting Frame
31	Heat, Exchanger
32	Bracket, Motor
33	Heater, Defrost
35	WP4387500 Whirlpool Refrigerator Bimetallic Defrost
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
42	W11693756 Whirlpool Screw Assembly
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	WP2002171 Whirlpool Refrigerator Sleeve
52	Support, Heater
53	Screw, 1/4-28 x 1/2 (2)
54	Support (R.S.)
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	Nut
57	Washer
58	Overload Spring
59	876764 Whirlpool Refrigerator Primary Valve
59	VALVE, ACCESS (5/8“)
59	978027 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (1/2“)
59	978026 Whirlpool Refrigerator Primary Valve
59	Support, Evaporator (L.S.)
