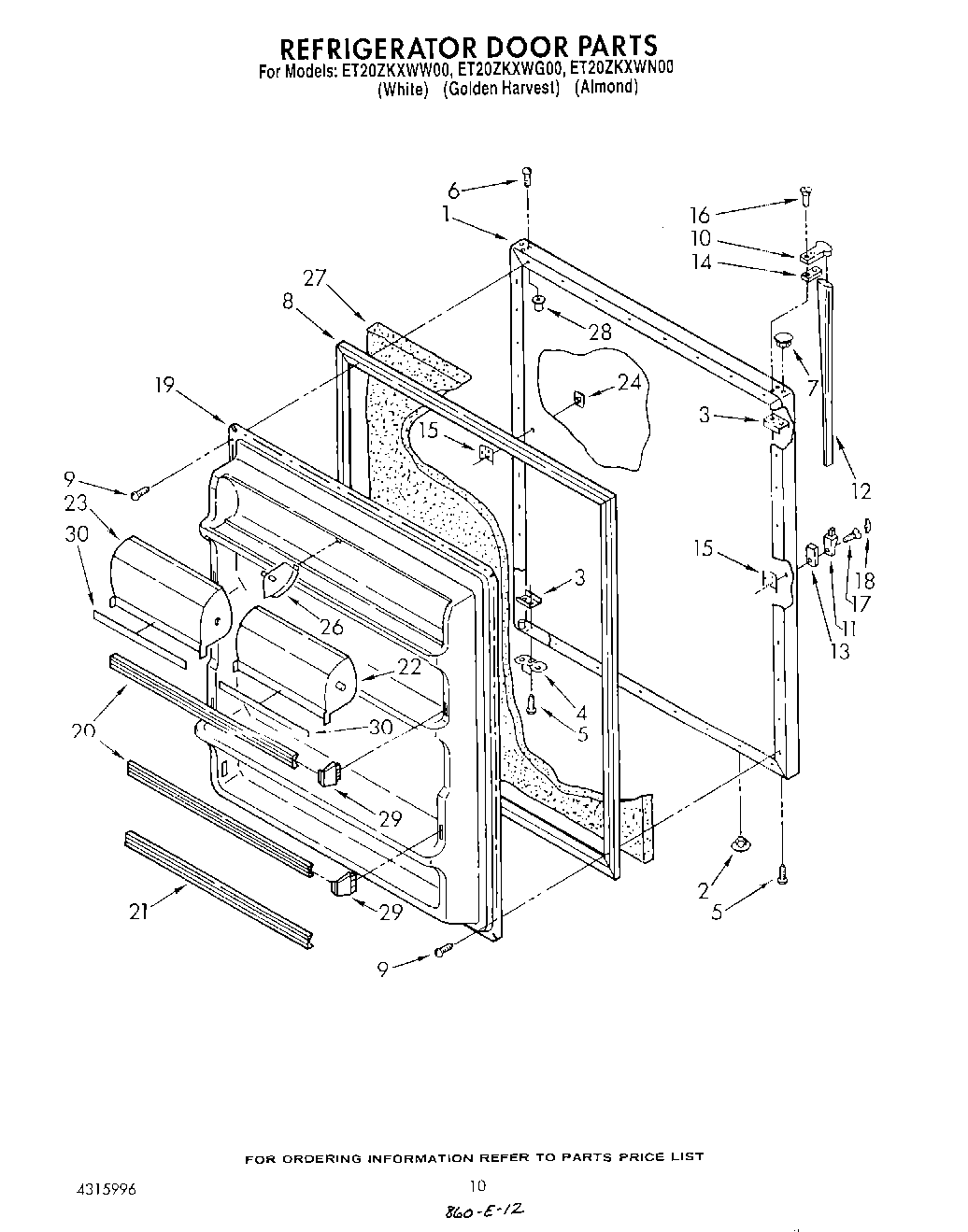

ET20ZKXWN00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
Torx Key
WPL LIT1124894
285006 Whirlpool Spray
WPL LIT1127854
WPL LIT2148071
Golden Harvest (Uncut)
WPL LIT4315996
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
350942 Whirlpool Spray Paint
Leveler (Thinner)
350956 Whirlpool Spray Assembly
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Almond)
1Panel, Refrigerator Door (Golden Harvest)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
6Screw (Repair)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82188450A Whirlpool Refrigerator Door Gasket
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12WP2162555 Whirlpool Refrigerator White Door Handle
12Handle, Center (Almond)
12Handle, Center (Golden Harvest)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
16Screw (Repair)
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door Shelf (2)
21Trim, Door
22Compartment Door, Right Side
23Compartment Door, Left Side
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
24Hole Plug, Handle (White)
26WP1118001 Whirlpool Hinge Pin
28Cap, Hinge Sleeve (2)
294318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30Trim, Door Compartment
3072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30WPL 876029
30799344 Whirlpool Refrigerator Paint
30WP72107 Whirlpool Touchup
30Almond (Uncut)
30212643 Whirlpool Refrigerator Permagum Sealer
30511873 Whirlpool Refrigerator Paint
30606755 Whirlpool Refrigerator Bag
30833938 Whirlpool Refrigerator Terminal
30876370 Whirlpool Refrigerator Insulation
30WP503695 Whirlpool Refrigerator Sealer
30WP505587 Whirlpool Refrigerator Sealer
30WP542638 Whirlpool Refrigerator Grease
30TAPE, VINYL (3/4 X 108“)
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
30WPL 799833
3072032 Whirlpool Touch Up Paint Black
3072017 Whirlpool Appliance Touch-Up Paint White
