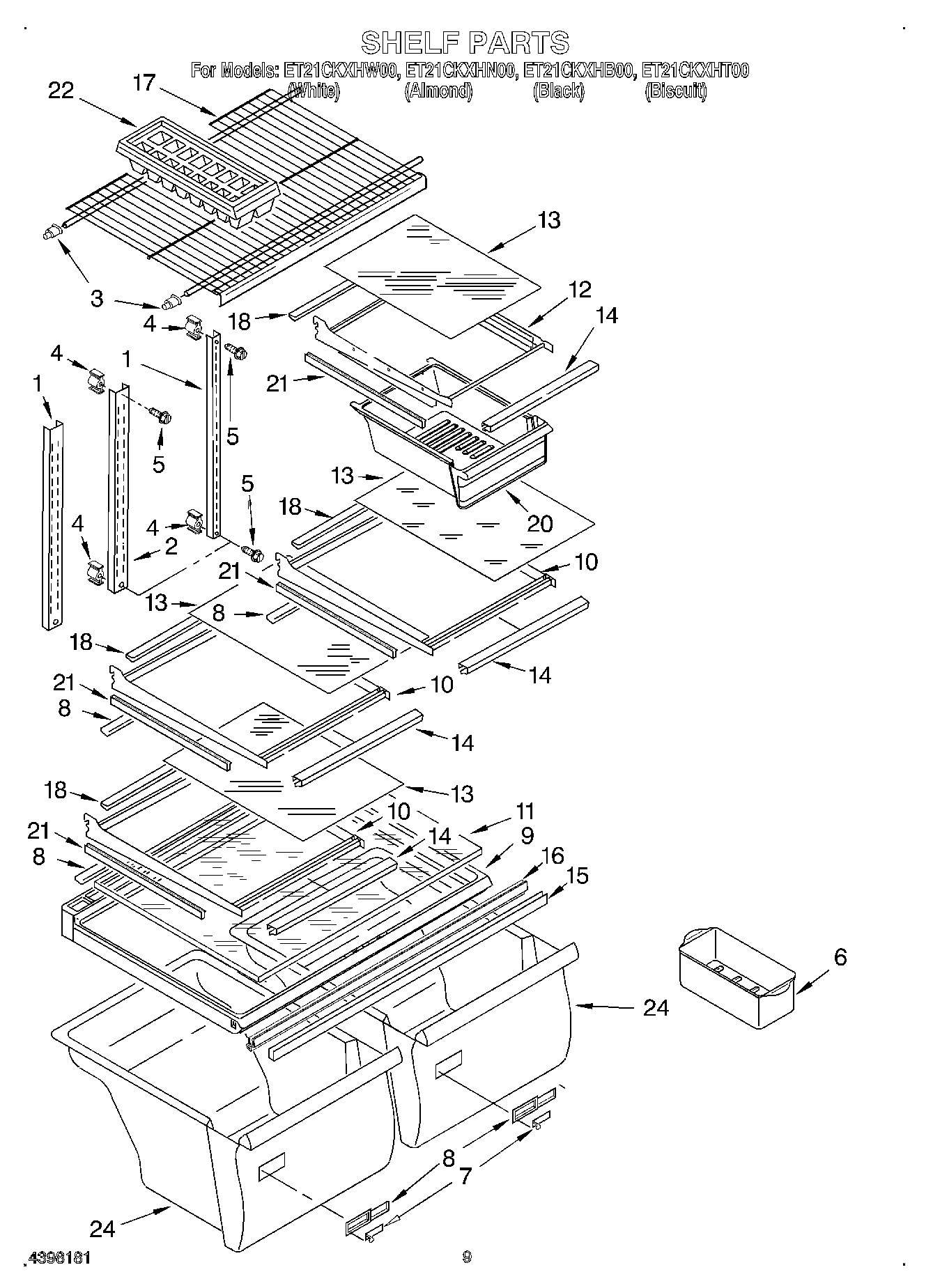

ET21CKXHT00 05 – SHELF, LIT/OPTIONAL

ET21CKXHT00 05 – SHELF, LIT/OPTIONAL

Written by

in

ET21CKXHT00 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2200945
	WPL LIT677971
	WPL LIT2199009
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2195481
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
4	520965 Whirlpool Refrigerator Support
5	W11544659 Whirlpool Refrigerator Screw
6	W10136387A Whirlpool Refrigerator Egg Container
7	WP2176222 Whirlpool Refrigerator Slide
8	WP2212446 Whirlpool Refrigerator Control Body
9	WP2314549 Whirlpool Refrigerator Cover
10	Shelf, Cantilever
11	WP2176225 Whirlpool Glass Shelf
12	Pan Shelf, Cantilever
13	Glass, Shelf
14	Trim, Shelf Front
15	WP2172748 Whirlpool Drawer Support
16	Gasket, Crisper Cover
17	Shelf, Freezer
18	Trim, Shelf Rear
20	WP2218132K Whirlpool Crisper Meat Pan
21	Trim, Shelf Side
22	WP841180A Whirlpool Microwave Glass Turntable Tray
24	W10856580 Whirlpool Crisper Pan
100	FeaturePak (Includes 16, 25, 29, 30, 31, 37, 41, 42) Also See Shelf Parts Page.
100	WPL 799833
100	212643 Whirlpool Refrigerator Permagum Sealer
100	Door Reversal Instructions
100	72032 Whirlpool Touch Up Paint Black
100	606755 Whirlpool Refrigerator Bag
100	511873 Whirlpool Refrigerator Paint
100	350942 Whirlpool Spray Paint
100	Almond (Uncut)
100	WP72107 Whirlpool Touchup
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	350956 Whirlpool Spray Assembly
100	833938 Whirlpool Refrigerator Terminal
100	876370 Whirlpool Refrigerator Insulation
100	285006 Whirlpool Spray
100	WPL 876029
100	WPL 799832
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	TAPE, VINYL (3/4 X 108“)
100	WP542638 Whirlpool Refrigerator Grease
100	WP505587 Whirlpool Refrigerator Sealer
100	WP503695 Whirlpool Refrigerator Sealer
100	350930 Whirlpool White Spray Paint
