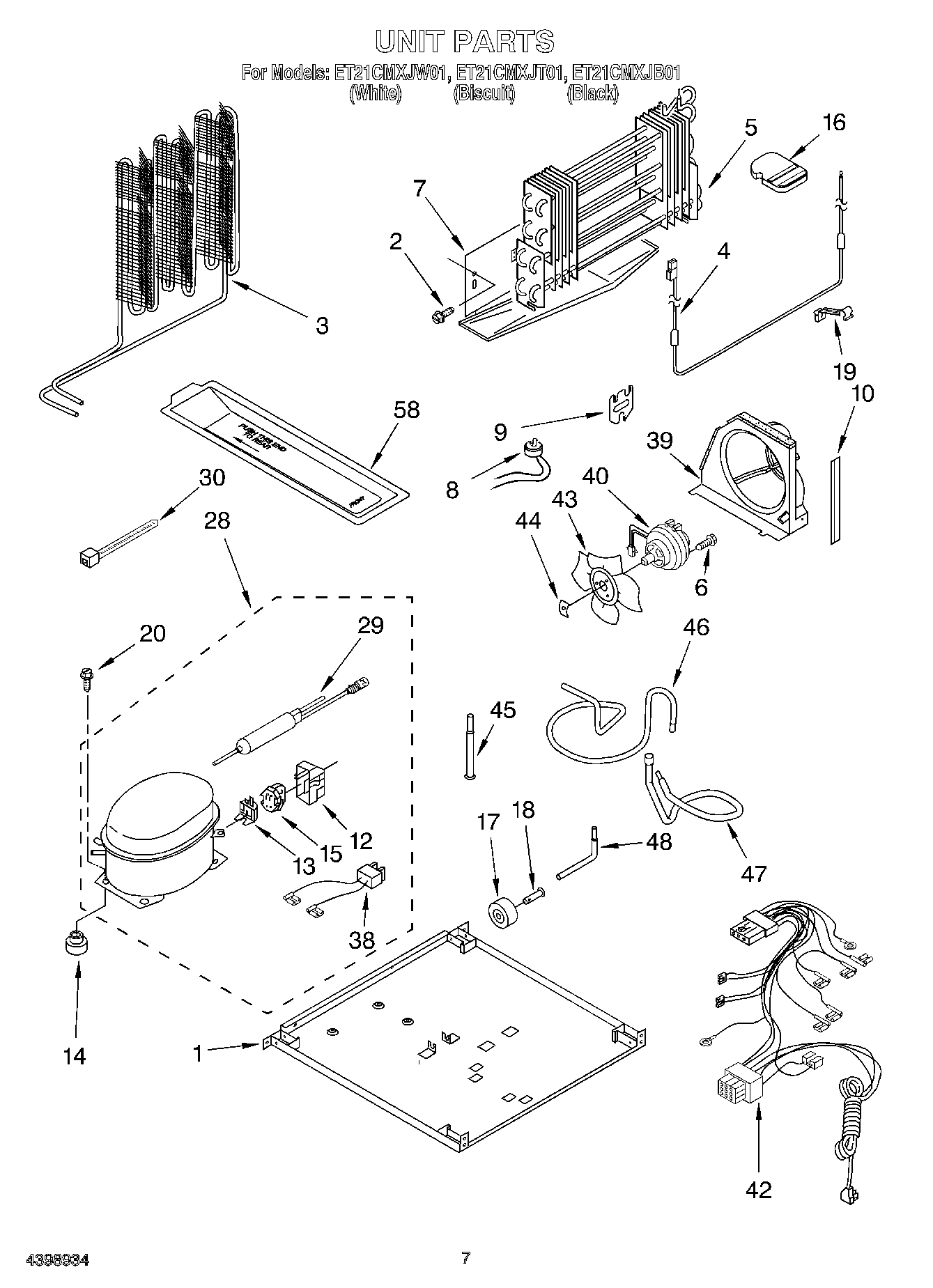

ET21CMXJB01 04 – UNIT

ET21CMXJB01 04 – UNIT

Written by

in

ET21CMXJB01 04 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315530 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
8WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
15WP4387938 Whirlpool Refrigerator Overload
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
28W10823815 Whirlpool Refrigerator Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Installation Kit
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
38WP2172890 Whirlpool Refrigerator Wire
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy. Unit
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
45Tube, Transition
46Tube, Discharge
472205293 Whirlpool Refrigerator Tube
48W11676464 Whirlpool Tube
58VALVE, ACCESS (1/2“)
58VALVE, ACCESS (5/8“)
58WP978025 Whirlpool Refrigerator Valve
58Tray, Evaporator
58978030 Whirlpool Refrigerator Valve
58Start Kit
58978027 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58876764 Whirlpool Refrigerator Primary Valve
