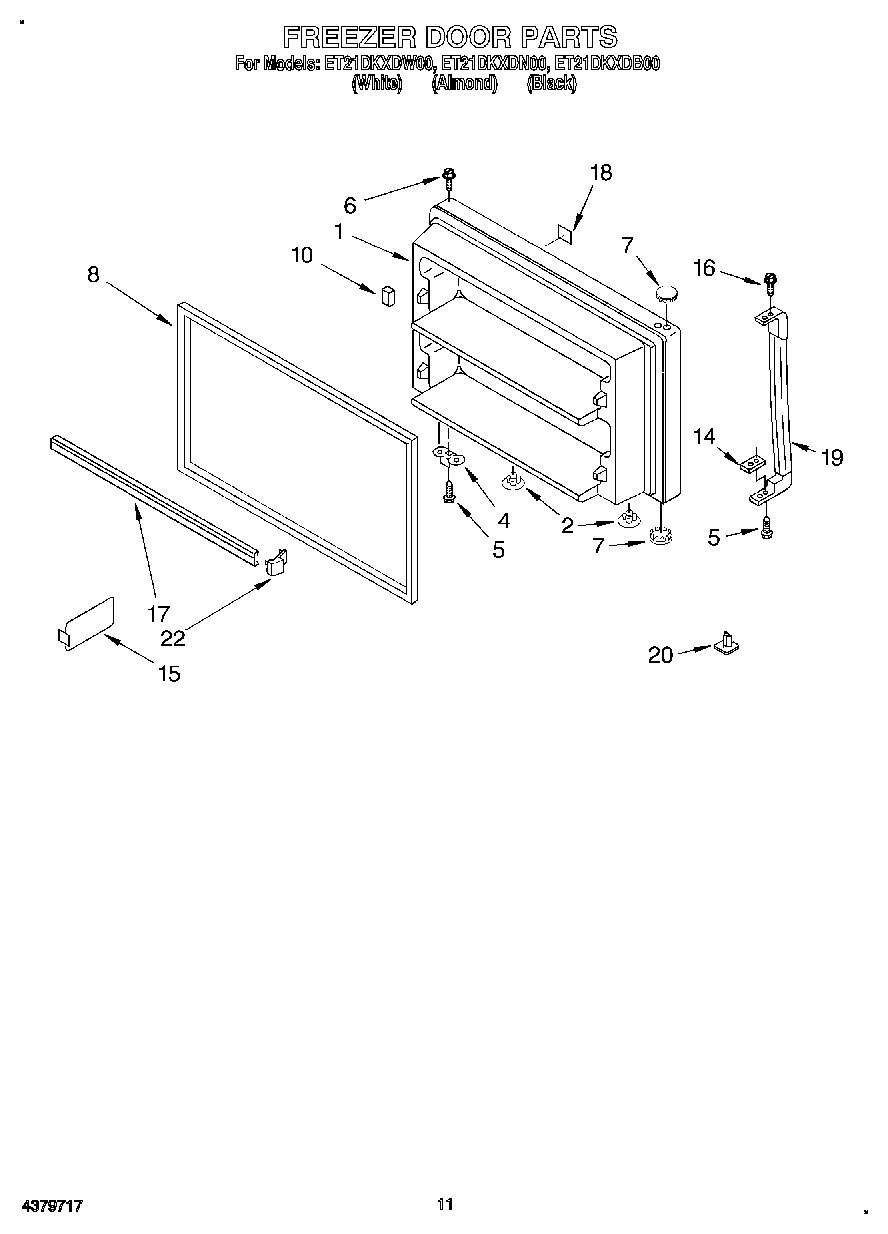

ET21DKXDN00 06 – FREEZER DOOR, LIT/OPTIONAL

ET21DKXDN00 06 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

ET21DKXDN00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2174687
	WPL LIT2172667
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT677971
	WPL LIT2176265
1	Freezer Door (Includes No.8) (White)
1	Panel, Freezer Door (Includes Item 8) (Black)
1	Freezer Door (Includes No.8) (Almond)
2	Hole Plug (2) (Black)
2	Hole Plug (2)
2	Hole Plug (2) (Almond)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212651 Whirlpool Refrigerator Button Plug
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	WHITE DOOR GASKET-FIP
8	2177310 Whirlpool Refrigerator Door Gasket
10	Door Clip, Freezer Light
14	Shim, Bottom
15	Divider-Door
16	WP488920 Whirlpool Refrigerator Screw
17	Trim-Door (2)
18	WPL 2162698
18	Nameplate
18	Nameplate (Black Model)
19	Handle (White)
19	Handle (Black)
19	Handle (Almond)
20	Hole Plug (Black)
20	Hole Plug (Almond)
20	Hole Plug (White)
22	350956 Whirlpool Spray Assembly
22	WP72107 Whirlpool Touchup
22	72017 Whirlpool Appliance Touch-Up Paint White
22	212643 Whirlpool Refrigerator Permagum Sealer
22	799344 Whirlpool Refrigerator Paint
22	Door Reversal Instructions
22	350930 Whirlpool White Spray Paint
22	ENDCAP
22	Almond (Uncut)
22	TAPE, VINYL (3/4 X 108“)
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	WPL 799832
22	WPL 799833
22	WPL 876029
22	WP503695 Whirlpool Refrigerator Sealer
22	876370 Whirlpool Refrigerator Insulation
22	WP542638 Whirlpool Refrigerator Grease
22	833938 Whirlpool Refrigerator Terminal
22	606755 Whirlpool Refrigerator Bag
22	72032 Whirlpool Touch Up Paint Black
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	285006 Whirlpool Spray
22	WP505587 Whirlpool Refrigerator Sealer
