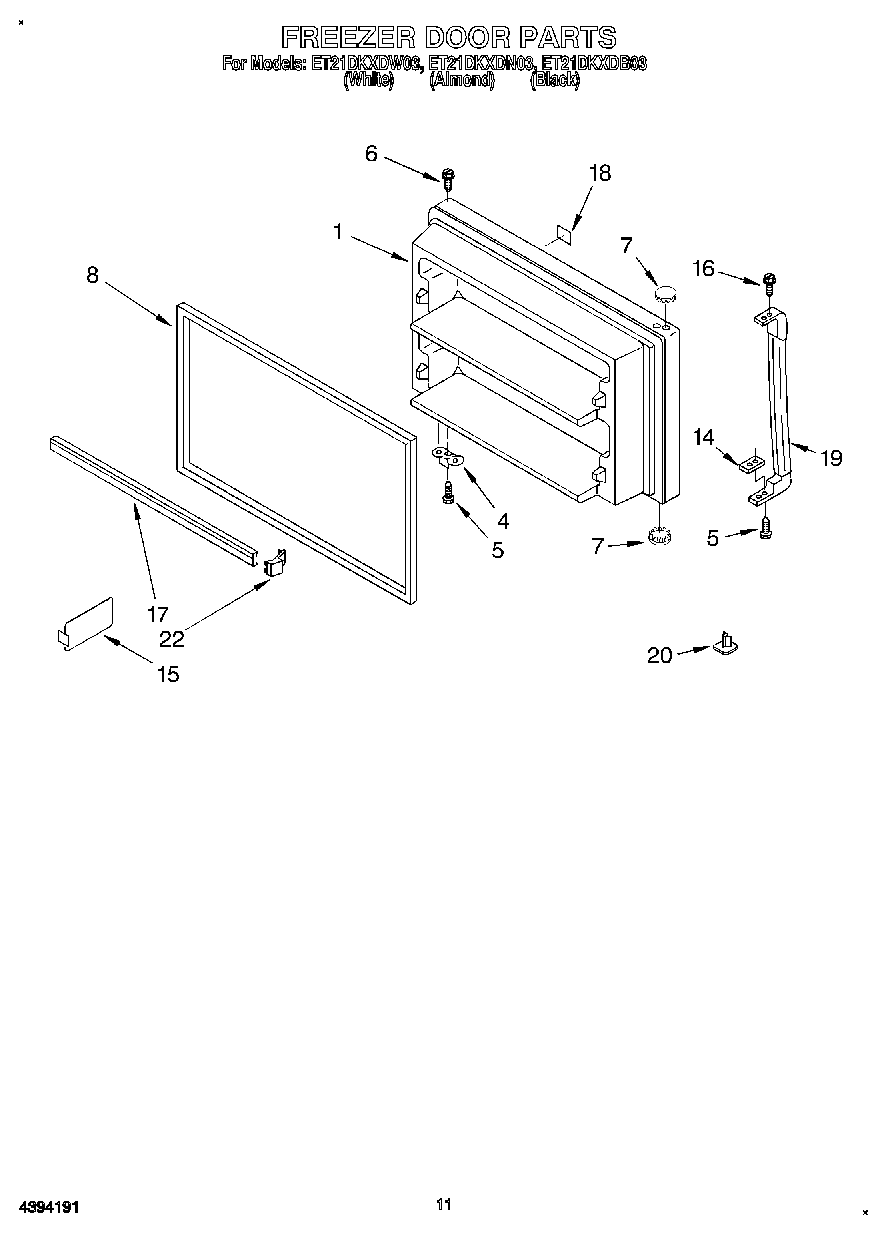

ET21DKXDN03 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2184589
	WPL LIT677971
	WPL LIT2182504
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2172667
1	Panel, Freezer Door (Includes Item 8) (Black)
1	Freezer Door (Includes No.8) (Almond)
1	Freezer Door (Includes No.8) (White)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	WHITE DOOR GASKET-FIP
8	2177310 Whirlpool Refrigerator Door Gasket
14	Shim, Bottom
15	Divider-Door
16	WP488920 Whirlpool Refrigerator Screw
17	Trim-Door (2)
18	Nameplate (Almond Model)
18	Nameplate (Black)
18	Nameplate (White)
19	Handle (White)
19	Handle (Almond)
19	Handle (Black)
20	Hole Plug (White)
20	Hole Plug (Almond)
20	Hole Plug (Black)
22	350956 Whirlpool Spray Assembly
22	799344 Whirlpool Refrigerator Paint
22	350930 Whirlpool White Spray Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	Door Reversal Instructions
22	WP72107 Whirlpool Touchup
22	Almond (Uncut)
22	WP505587 Whirlpool Refrigerator Sealer
22	TAPE, VINYL (3/4 X 108“)
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	WPL 799832
22	WPL 799833
22	WP503695 Whirlpool Refrigerator Sealer
22	876370 Whirlpool Refrigerator Insulation
22	833938 Whirlpool Refrigerator Terminal
22	606755 Whirlpool Refrigerator Bag
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	285006 Whirlpool Spray
22	72032 Whirlpool Touch Up Paint Black
22	ENDCAP
22	212643 Whirlpool Refrigerator Permagum Sealer
22	WPL 876029
22	WP542638 Whirlpool Refrigerator Grease
