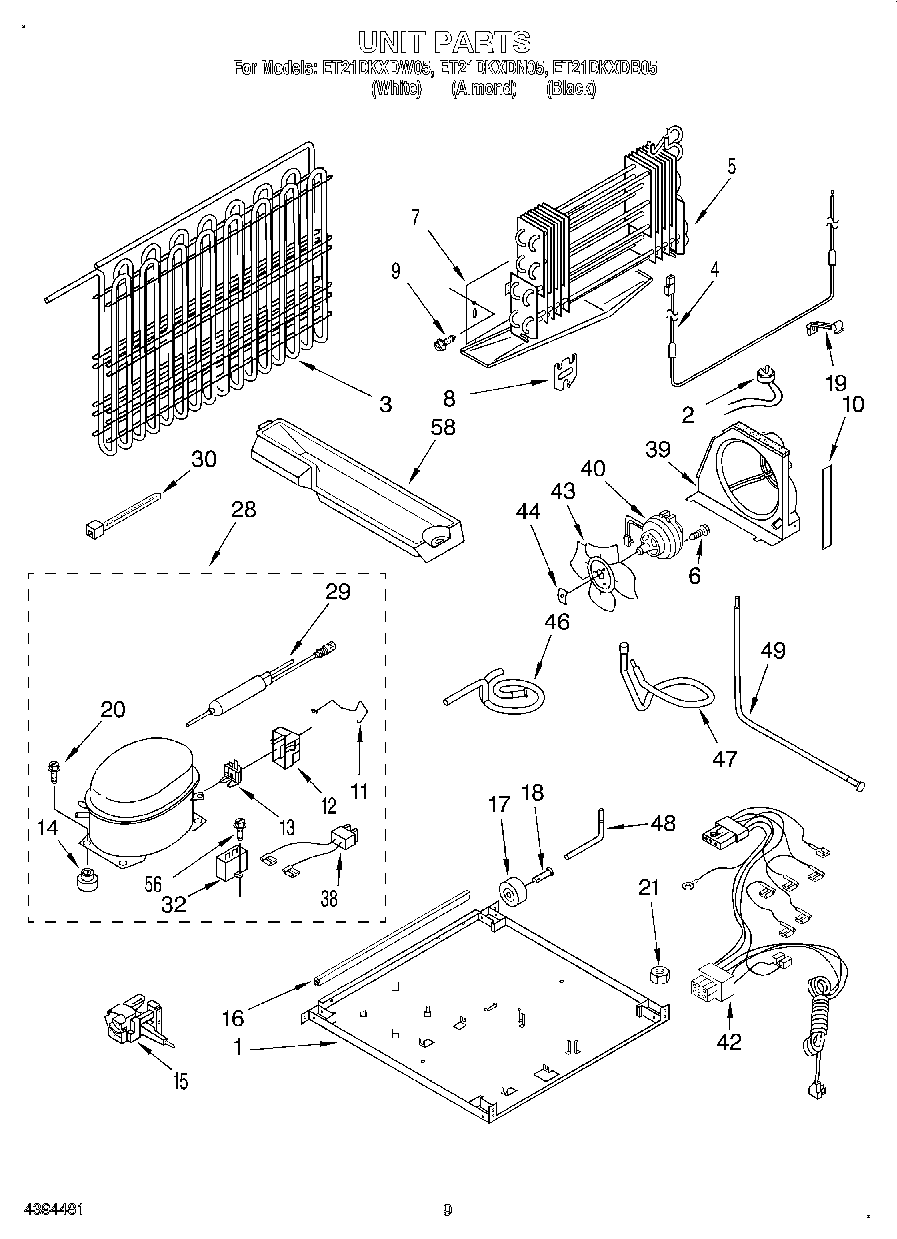

ET21DKXDW05 05 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
3	Condenser
4	WP2315530 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WP489489 Whirlpool Screw
7	Drain Pan
8	Bracket, Heater
9	WP489478 Whirlpool Refrigerator Screw
10	Extension, Air Baffle
11	Clamp (Production Only)
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	Overload (Production (Includes Relay))
13	4387913 Whirlpool Refrigerator Primary Overload Relay
14	W11661108 Whirlpool Grommet
14	876811 Whirlpool Grommet
15	Module
16	Protector
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	W11594405 Whirlpool Axle
19	Clip, Heater
20	SCREW
21	Nut (Not Serviced)
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	Capacitor
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
38	WP2172890 Whirlpool Refrigerator Wire
39	Air Baffle
40	W10822259 Whirlpool Refrigerator Condenser Fan Motor
42	Wire Assy. Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
46	Tube, Discharge
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Condenser To Heat Loop
56	W11693756 Whirlpool Screw Assembly
58	Evap. Tray
58	VALVE, ACCESS (5/8“)
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	WP978025 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (1/2“)
58	Start Kit
