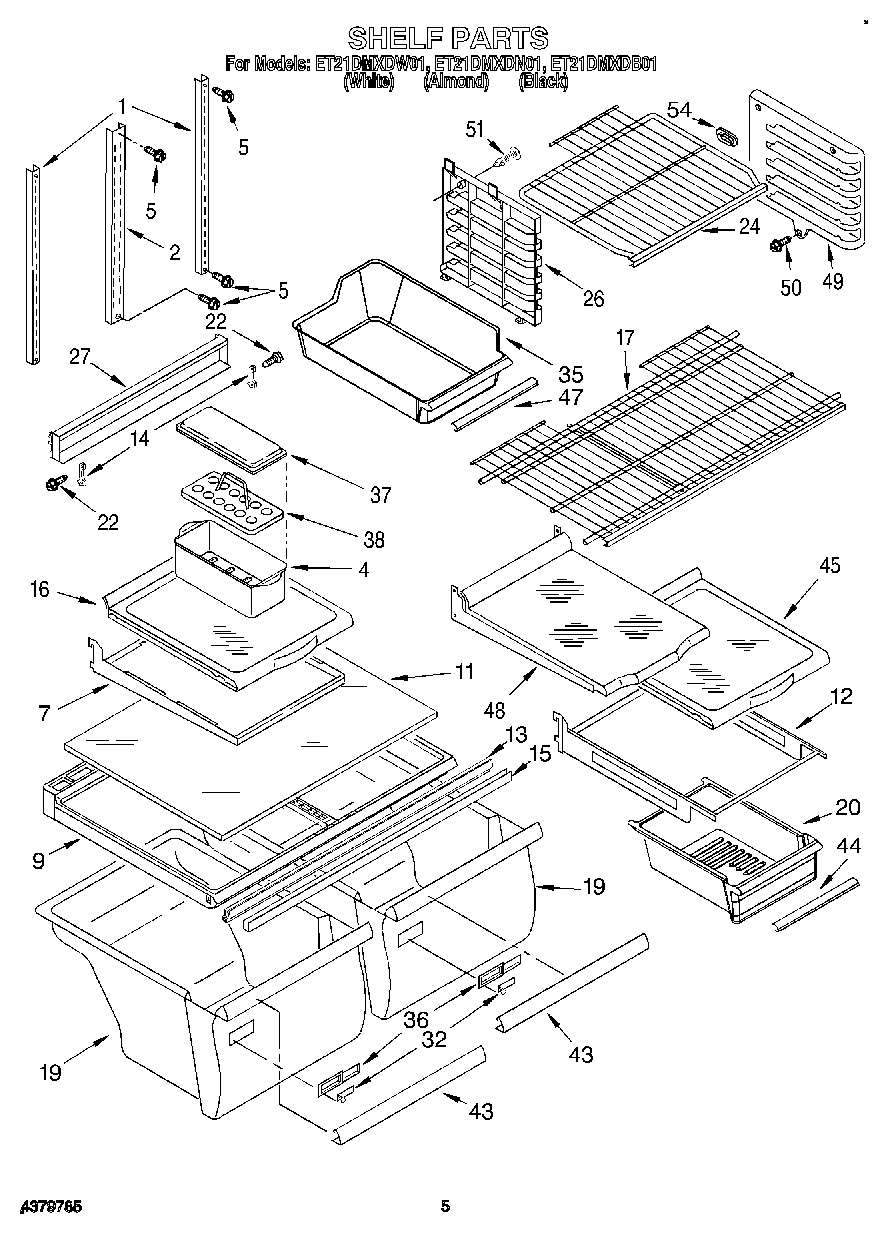

ET21DMXDB01 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
7	Frame Assembly, Shelf (2)
9	WP2314549 Whirlpool Refrigerator Cover
11	WP2176225 Whirlpool Glass Shelf
12	Frame Assembly, Meat Shelf
13	Gasket, Crisper Cover
14	Hook, Shelf
15	WP2172748 Whirlpool Drawer Support
16	WP999520 Whirlpool Refrigerator Glass Shelf
17	Shelf, Freezer
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	WP2218132K Whirlpool Crisper Meat Pan
22	Screw
24	Shelf, Freezer (Top)
26	Bracket, Shelf Mounting (L.S.)
27	Track Assembly, Shelf
32	WP2176222 Whirlpool Refrigerator Slide
35	2254352A Whirlpool Refrigerator Ice Container
36	WP2212446 Whirlpool Refrigerator Control Body
37	Cover
38	WP2177817 Whirlpool Refrigerator Egg Container
43	Trim, Crisper Pan
44	Trim, Meat Pan
47	Trim, Ice Bucket
48	Shelf Assembly, Spillguard
49	Bracket, Shelf Mounting (R.S.)
50	WP489442 Whirlpool Refrigerator Screw
51	Fastener
54	Plug, Shelf Cup
