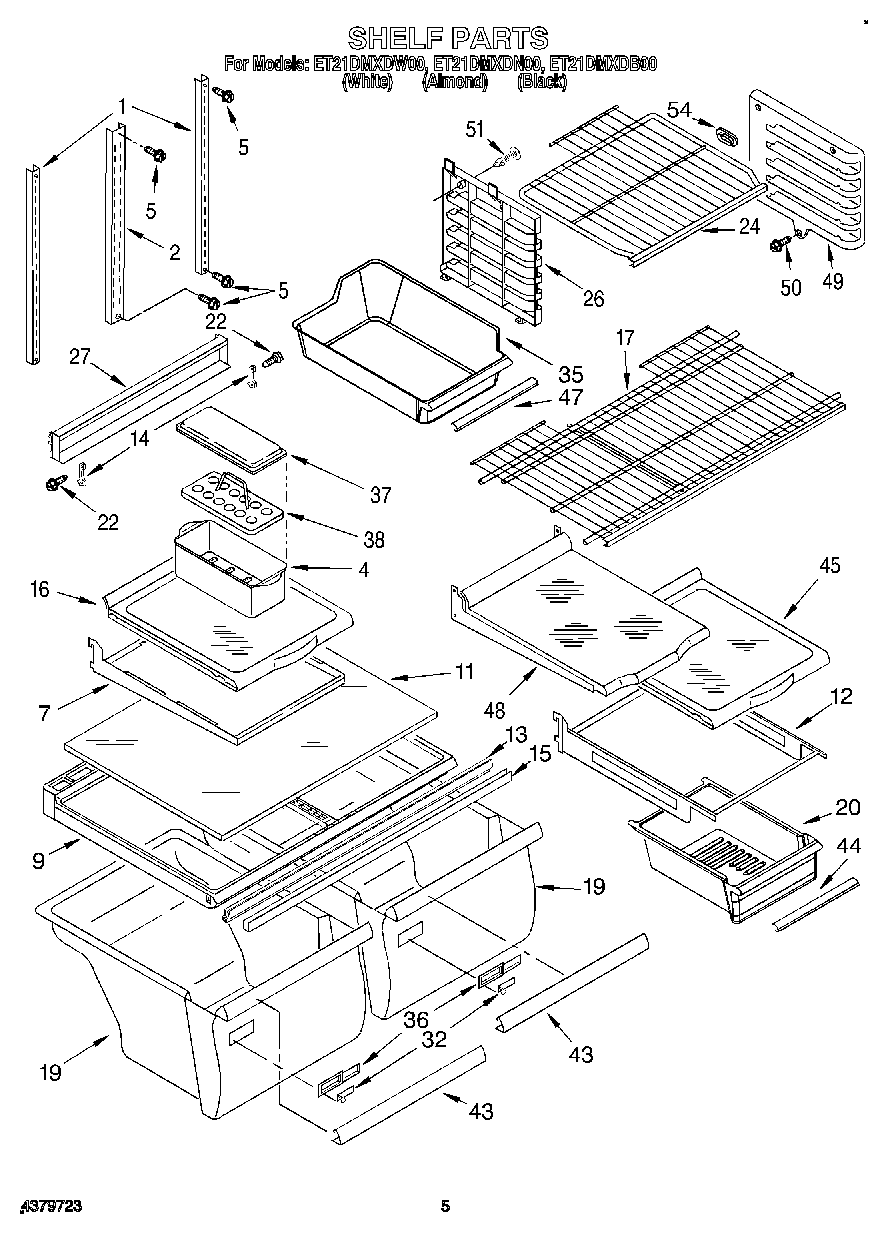

| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 4 | W10136387A Whirlpool Refrigerator Egg Container |
| 5 | W11544659 Whirlpool Refrigerator Screw |
| 7 | Frame Assembly, Shelf (2) |
| 9 | WP2314549 Whirlpool Refrigerator Cover |
| 11 | WP2176225 Whirlpool Glass Shelf |
| 12 | Frame Assembly, Meat Shelf |
| 13 | Gasket, Crisper Cover |
| 14 | Hook, Shelf |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | WP999520 Whirlpool Refrigerator Glass Shelf |
| 17 | Shelf, Freezer |
| 19 | W10854037 Whirlpool Refrigerator Crisper Pan |
| 20 | WP2218132K Whirlpool Crisper Meat Pan |
| 22 | Screw |
| 24 | Shelf, Freezer (Top) |
| 26 | Bracket, Shelf Mounting (L.S.) |
| 27 | Track Assembly, Shelf |
| 32 | WP2176222 Whirlpool Refrigerator Slide |
| 35 | 2254352A Whirlpool Refrigerator Ice Container |
| 36 | WP2212446 Whirlpool Refrigerator Control Body |
| 37 | Cover |
| 38 | WP2177817 Whirlpool Refrigerator Egg Container |
| 43 | Trim, Crisper Pan |
| 44 | Trim, Meat Pan |
| 47 | Trim, Ice Bucket |
| 48 | Shelf Assembly, Spillguard |
| 49 | Bracket, Shelf Mounting (R.S.) |
| 50 | WP489442 Whirlpool Refrigerator Screw |
| 51 | Fastener |
| 54 | Plug, Shelf Cup |
