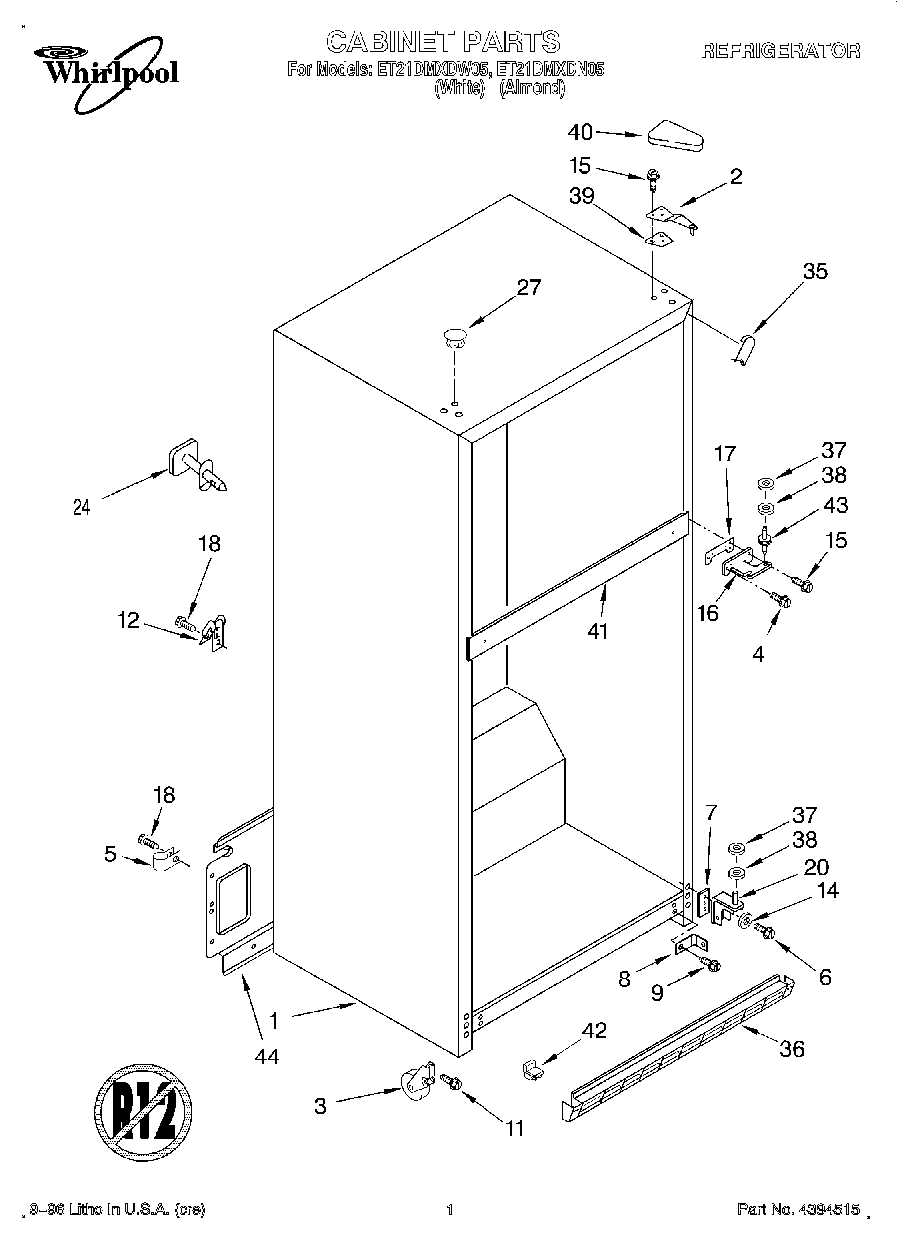

ET21DMXDW05 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Hinge (Top)
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4Screw
5WP488366 Whirlpool Refrigerator Clamp
6Screw
7Shim, Bottom Hinge
8Bracket, Bottom Hinge
9Screw
11Screw
12549193 Whirlpool Refrigerator Power Clamp
15WP999367 Whirlpool Refrigerator Screw
16Hinge, Center
17Shim, Hinge Center
18WP489464 Whirlpool Refrigerator Screw
20Hinge Butt
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Almond)
27WP2151652 Whirlpool Refrigerator Button Plug
35Corner Filler (2) (Almond)
35WPW10283959 Whirlpool Refrigerator Filler
36Grille (Almond)
36Grille (White)
37WP489467 Whirlpool Hinge Shim
38WP487576 Whirlpool Washer
39Shim
40Cover-Hinge (Almond)
40Cover-Hinge (White)
41Rail Center (Not Serviced)
42Corner Filler, Grille (Almond)
42Corner Filler, Grille (White)
43WP2254618 Whirlpool Center Door Hinge
44Cover, Unit
