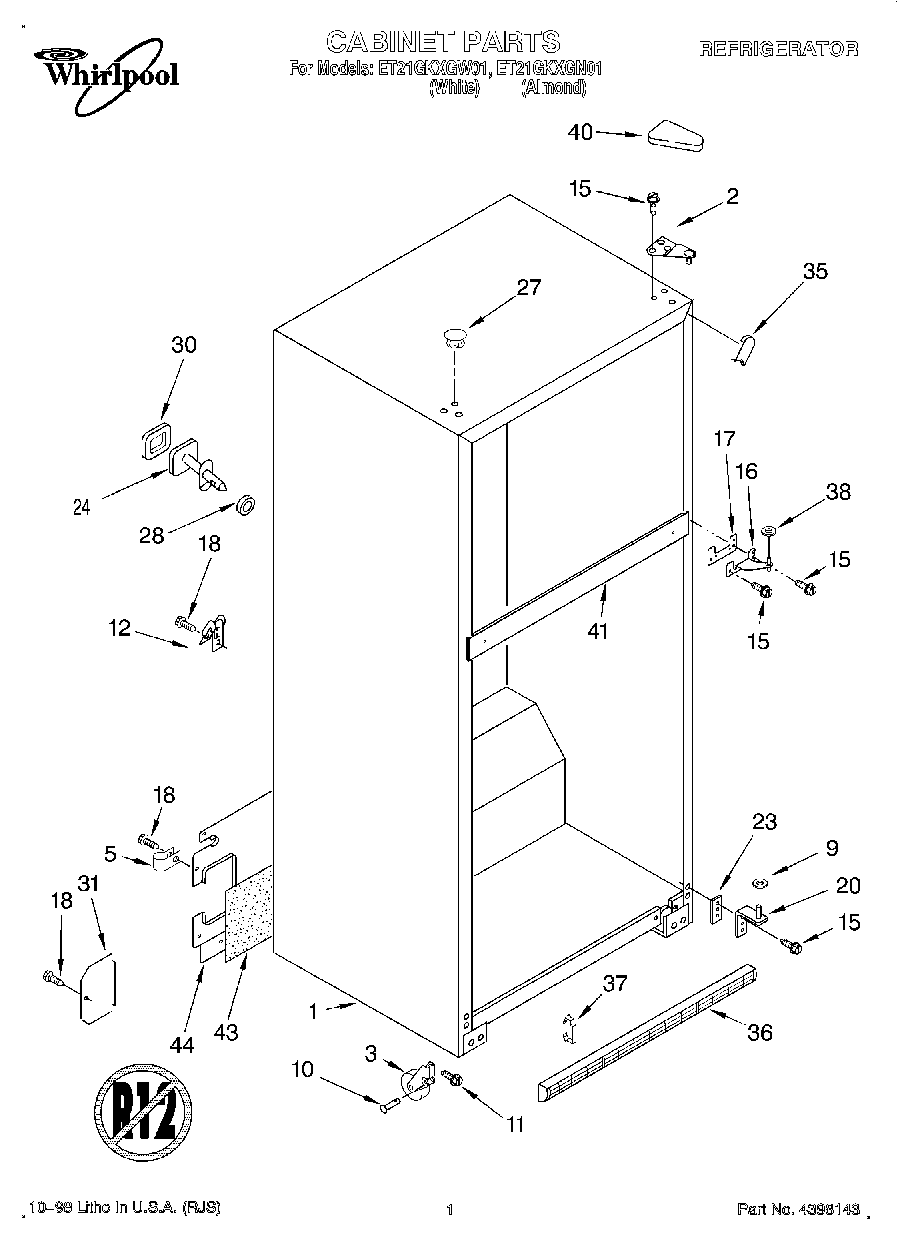

ET21GKXGW01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
9	WP489467 Whirlpool Hinge Shim
10	W11594405 Whirlpool Axle
11	Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	WP2151652 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Almond)
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
31	Cover, Water Valve
35	WPW10283959 Whirlpool Refrigerator Filler
35	Corner Filler (2) (Almond)
36	Grille (Almond)
36	Grille (White)
37	CLIP, GRILLE
38	WP487576 Whirlpool Washer
40	Cover, Hinge (Almond)
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
43	Insulation
44	Cover, Unit
