ET21PKXGN01 03 – LINER

ET21PKXGN01 03 – LINER

Written by

in

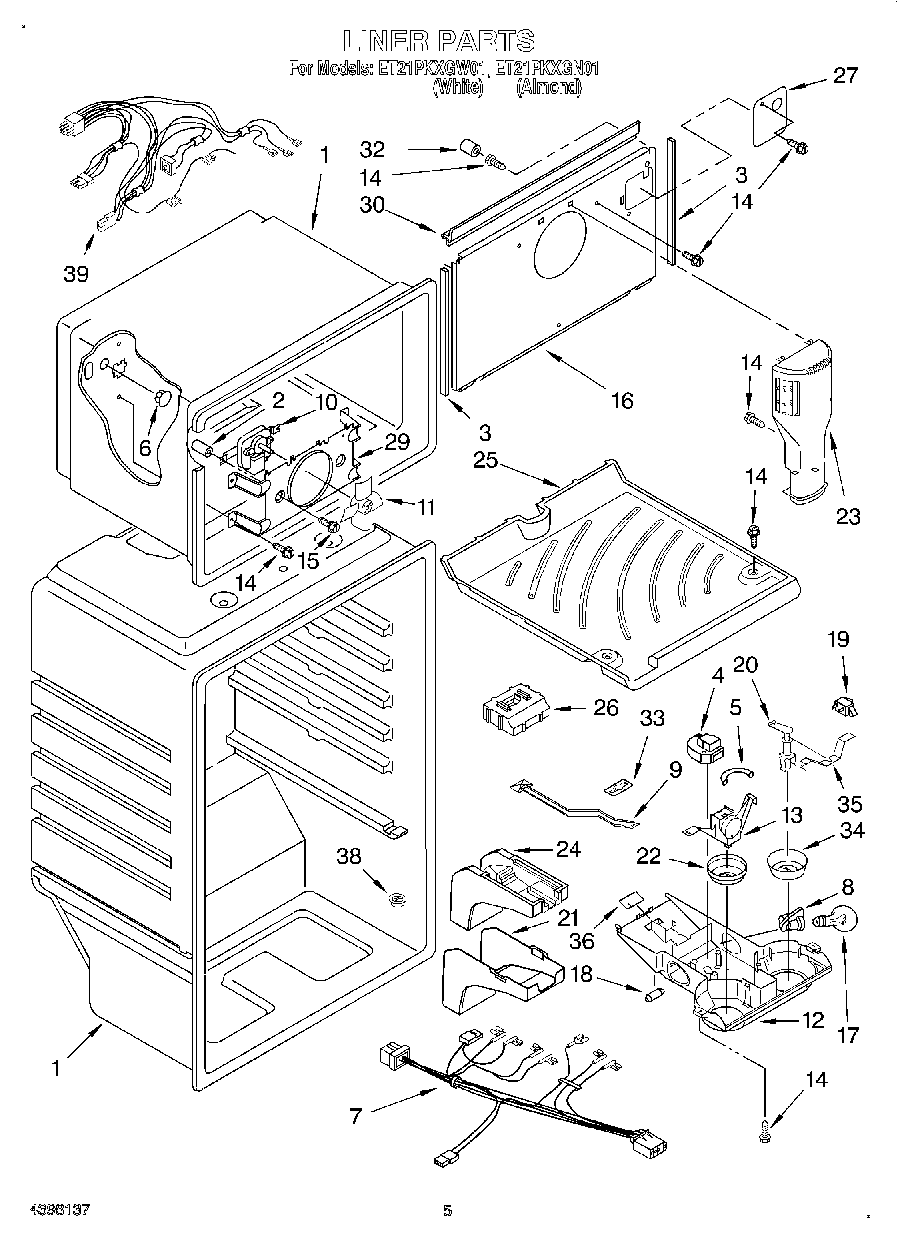

ET21PKXGN01 03 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4Timer, Defrost
5WP2196003 Whirlpool Refrigerator Bar Riser
6WP941839 Whirlpool Refrigerator Button Plug
7Wire Assy. Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Items 5, 18 & 36)
14WP489478 Whirlpool Refrigerator Screw
15Screw
16Cover-Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Post, Damper
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Floor, Freezer
26Air Diffuser, Top
27WP2217784 Whirlpool Refrigerator Cover
29Bracket, Fan Motor
32WP487996 Whirlpool Refrigerator Cap Tube
33Clip, Defrost Timer
34Knob, Damper
35Bracket, Damper Knob
36WP2205079 Whirlpool Refrigerator Seal
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly, Freezer Compartment
