ET21UMXGW00 05 – SHELF, LIT/OPTIONAL

ET21UMXGW00 05 – SHELF, LIT/OPTIONAL

Written by

in

ET21UMXGW00 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2199058
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2195481
	Torx Key
	WPL LIT2199009
	WPL LIT677971
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
4	Support, Screw
5	W11544659 Whirlpool Refrigerator Screw
6	W10136387A Whirlpool Refrigerator Egg Container
7	Glass, Full Shelf
8	Trim, Rear Shelf
9	WP2314549 Whirlpool Refrigerator Cover
10	Frame Assembly, Shelf (2)
11	WP2176225 Whirlpool Glass Shelf
12	Frame Assembly, Meat Shelf
13	WP999520 Whirlpool Refrigerator Glass Shelf
14	Trim, Meat Pan
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Full Cantilever
17	Shelf, Freezer
19	Gasket, Crisper Cover
20	WP2218132K Whirlpool Crisper Meat Pan
21	WP2195341 Whirlpool Refrigerator Pan Trim
23	WP2176222 Whirlpool Refrigerator Slide
24	W10854037 Whirlpool Refrigerator Crisper Pan
25	WP2212446 Whirlpool Refrigerator Control Body
26	2254352A Whirlpool Refrigerator Ice Container
100	606755 Whirlpool Refrigerator Bag
100	511873 Whirlpool Refrigerator Paint
100	350942 Whirlpool Spray Paint
100	Almond (Uncut)
100	212643 Whirlpool Refrigerator Permagum Sealer
100	WP72107 Whirlpool Touchup
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	350956 Whirlpool Spray Assembly
100	350930 Whirlpool White Spray Paint
100	Door Reversal Instructions
100	833938 Whirlpool Refrigerator Terminal
100	876370 Whirlpool Refrigerator Insulation
100	72032 Whirlpool Touch Up Paint Black
100	WPL 876029
100	WPL 799833
100	285006 Whirlpool Spray
100	WPL 799832
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	TAPE, VINYL (3/4 X 108“)
100	WP542638 Whirlpool Refrigerator Grease
100	WP505587 Whirlpool Refrigerator Sealer
100	WP503695 Whirlpool Refrigerator Sealer

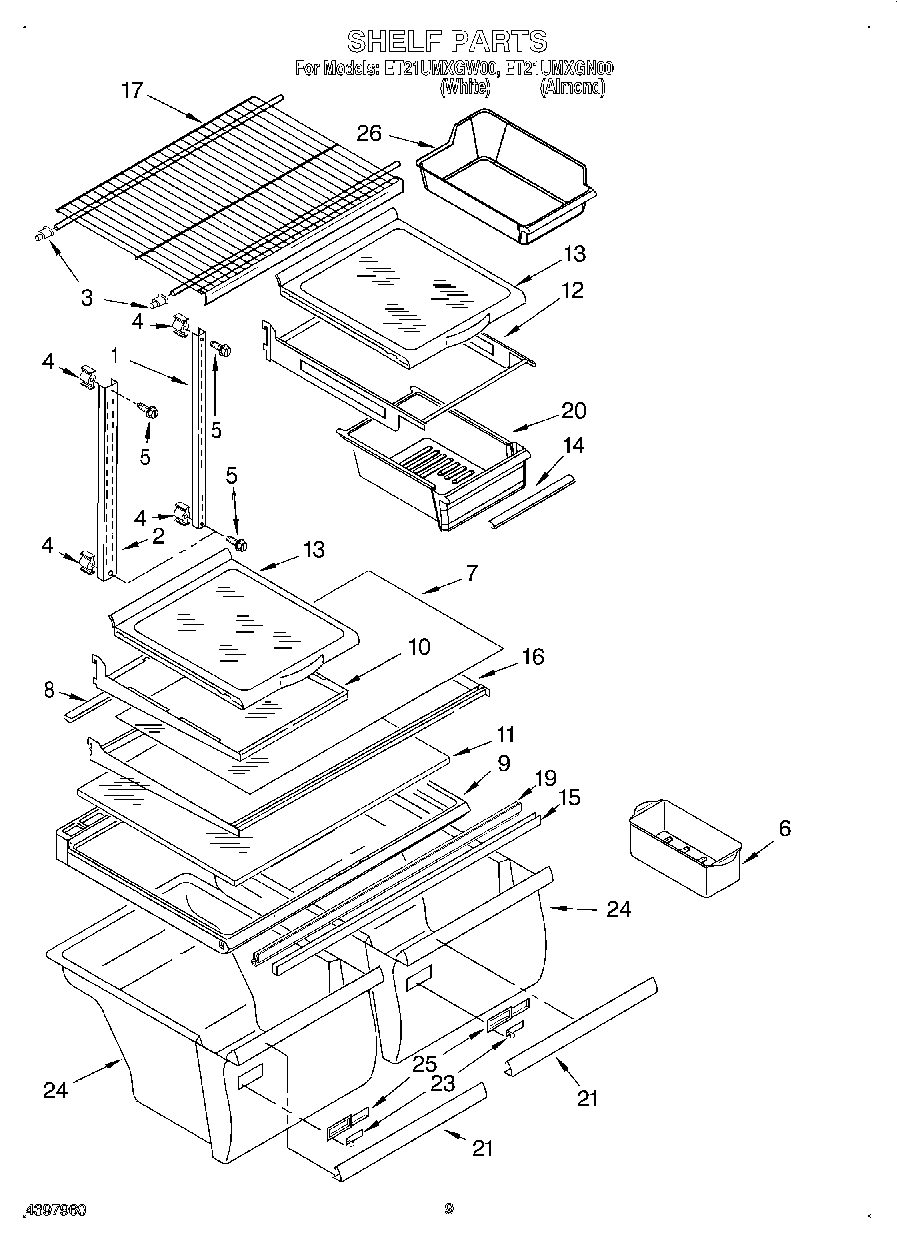

100	FeaturePak (Includes 16, 21, 25 29, 30, 31, 37, 41, 42) Also See Shelf Parts Page.
