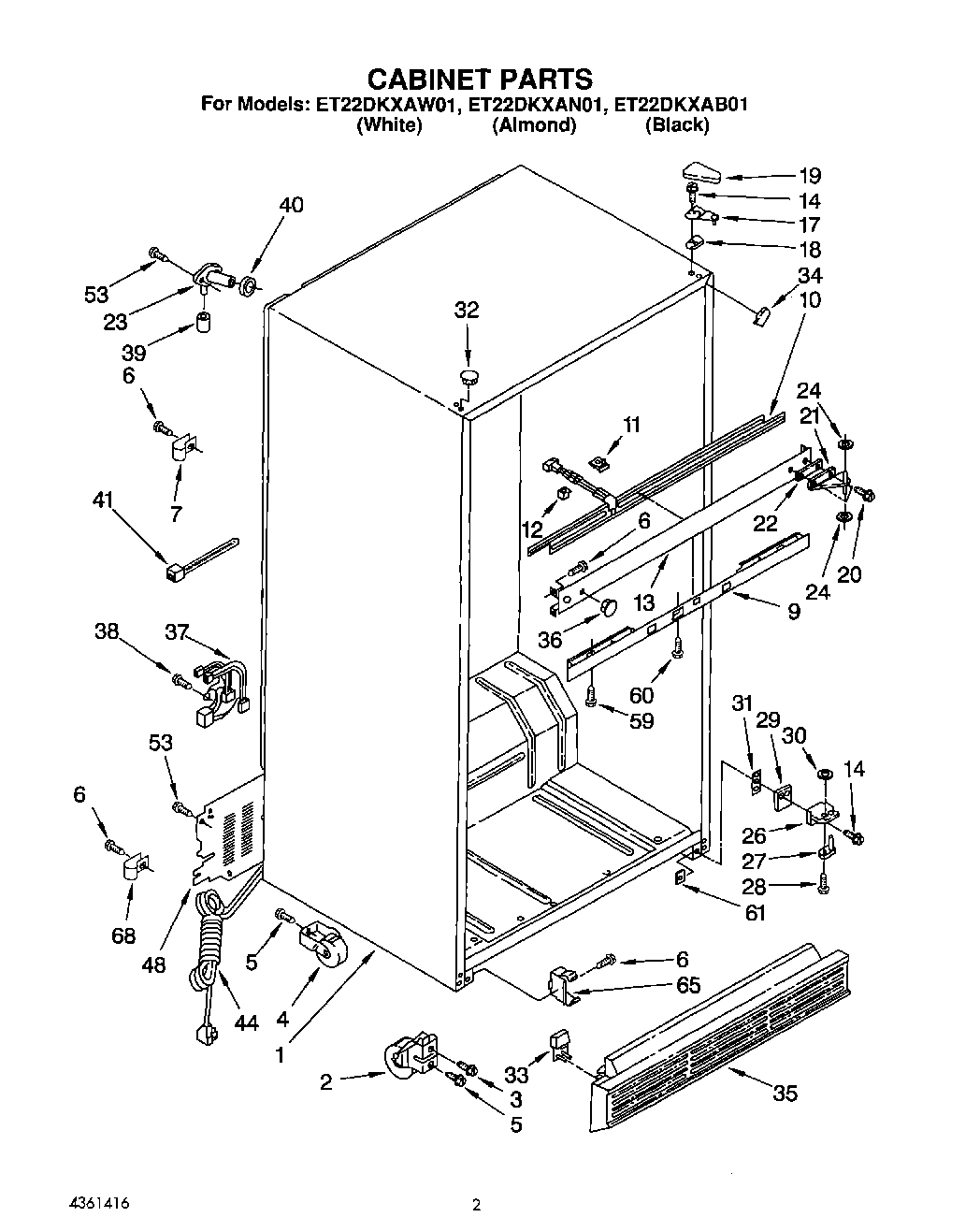

ET22DKXAB01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	WP489478 Whirlpool Refrigerator Screw
7	WP488366 Whirlpool Refrigerator Clamp
8	WP489464 Whirlpool Refrigerator Screw
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail (White)
14	Screw
17	WP2189412 Whirlpool Refrigerator Door Hinge
18	Shim, Hinge Top
19	Cover, Hinge (Almond)
19	WP2213360 Whirlpool Refrigerator Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP2196157 Whirlpool Fill Tube
24	WP487802 Whirlpool Refrigerator Washer
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP487576 Whirlpool Washer
31	Spacer
32	WP2151652 Whirlpool Refrigerator Button Plug
32	Hole Plug (6) (Almond)
33	Corner Filler, Grille (Almond)
33	Corner Filler, Grille (White)
34	Filler, Wrapper Corner (2) (Almond)
34	Filler, Wrapper Corner (2) (White)
35	Grille (Almond)
35	Grille (White)
36	Hole Plug (4) (Almond)
36	Hole Plug (4) (White)
37	Wiring Assembly, Intermediate
38	WP250830 Whirlpool Refrigerator Screw
39	WP487996 Whirlpool Refrigerator Cap Tube
40	WP1106508 Whirlpool Refrigerator Gasket
41	WPW10339879 Whirlpool Wire Tie
44	Cord, Service
48	Cover, Unit
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap Plate (2)
65	WP2155013 Whirlpool Refrigerator Clip
68	549193 Whirlpool Refrigerator Power Clamp
