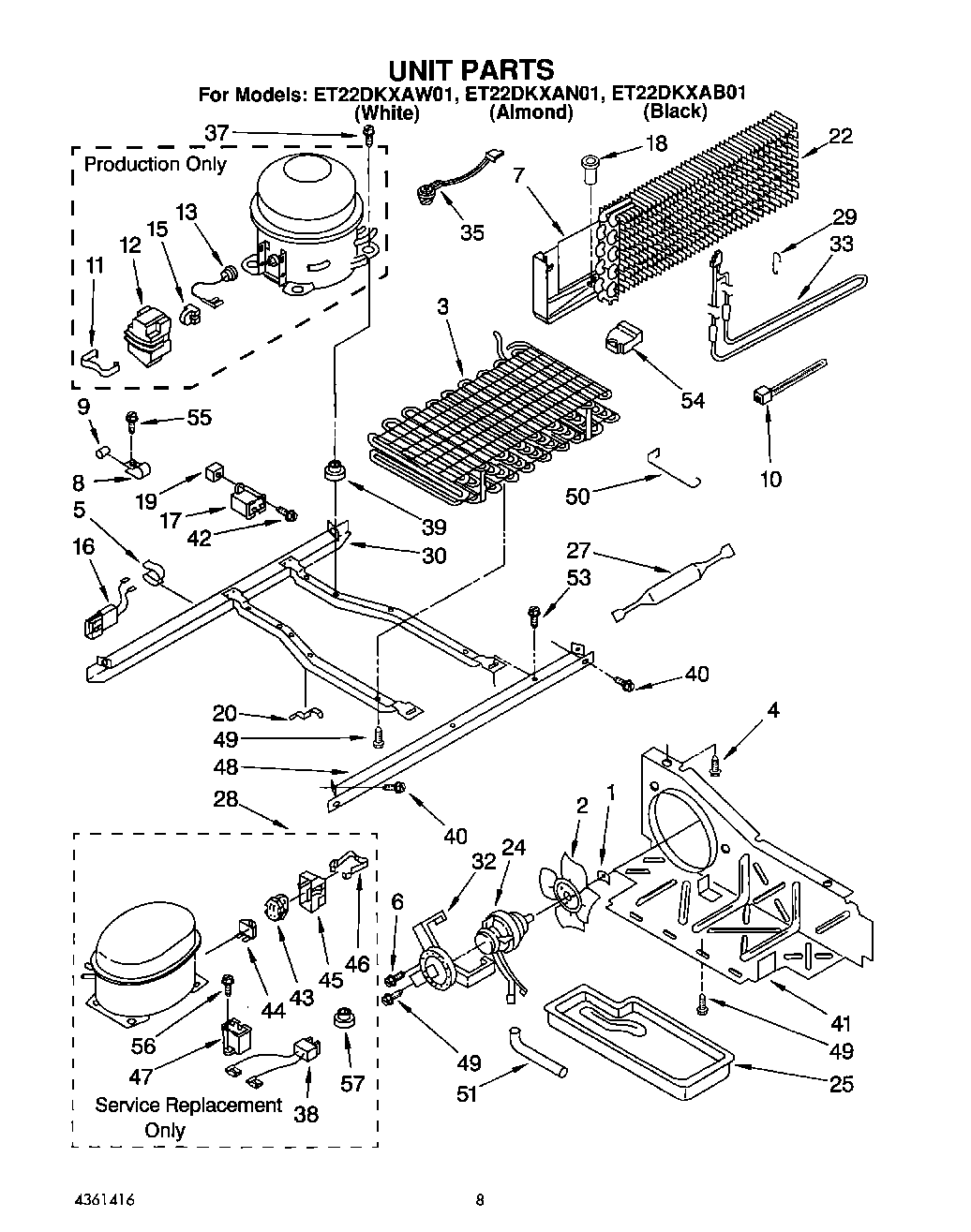

ET22DKXAB01 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	Screw, 8-32 x 1/2
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
8	Tube Clamp (2)
9	Dampener (2)
10	WPW10339879 Whirlpool Wire Tie
13	OVERLOAD
16	Housing Plug
17	Running Capacitor (Service)
18	Drain Fitting
19	Screw Grommet
20	Clip (2)
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
29	Support, Heater
30	2304903 Whirlpool Refrigerator Frame
32	Fan, Motor Bracket
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
38	WP2172890 Whirlpool Refrigerator Wire
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover
46	Strap
47	WPW10662129 Whirlpool Refrigerator Run Capacitor
48	Unit Mounting Rail
49	WP489464 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	WP489427 Whirlpool Refrigerator Screw
54	Support-Evaporator (L.S.)
54	Support (R.S.)
56	W11693756 Whirlpool Screw Assembly
57	876764 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (5/8“)
57	VALVE, ACCESS (1/2“)
57	WP978025 Whirlpool Refrigerator Valve
57	876811 Whirlpool Grommet
57	978030 Whirlpool Refrigerator Valve
57	978027 Whirlpool Refrigerator Primary Valve
57	978026 Whirlpool Refrigerator Primary Valve
