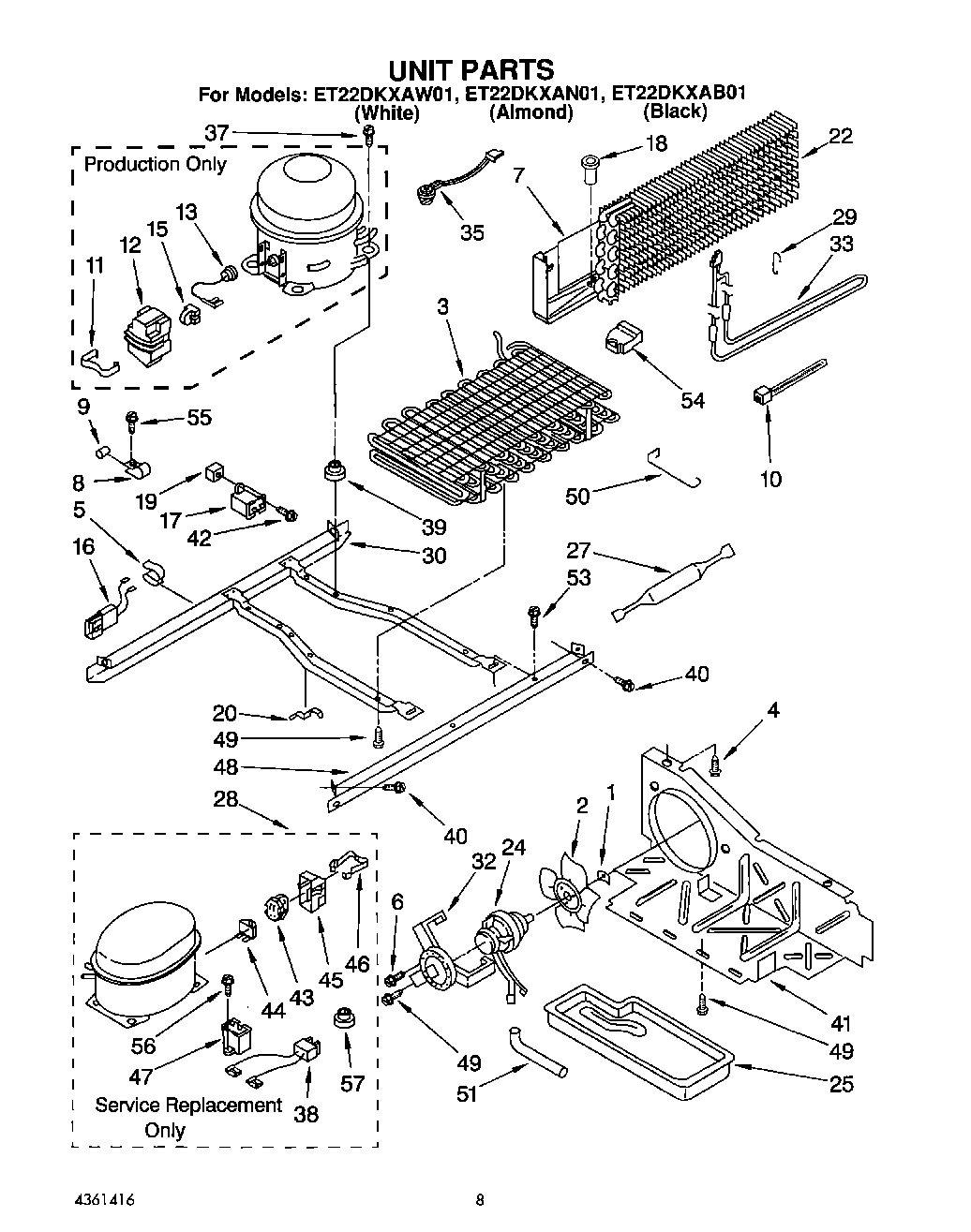

ET22DKXAW01 06 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4Screw, 8-32 x 1/2
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Drain Pan/ Heat Shield
8Tube Clamp (2)
9Dampener (2)
10WPW10339879 Whirlpool Wire Tie
13OVERLOAD
16Housing Plug
17Running Capacitor (Service)
18Drain Fitting
19Screw Grommet
20Clip (2)
22Evaporator
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
27W10843121 Whirlpool Refrigerator Tube
28W10439652 Whirlpool Refrigerator Compressor
29Support, Heater
302304903 Whirlpool Refrigerator Frame
32Fan, Motor Bracket
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
38WP2172890 Whirlpool Refrigerator Wire
40489340 Whirlpool Refrigerator Screw
41Air Baffle
43WP2262181 Whirlpool Refrigerator Start Relay
44Overload
45Cover
46Strap
47WPW10662129 Whirlpool Refrigerator Run Capacitor
48Unit Mounting Rail
49WP489464 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
51Drain Extension
53WP489427 Whirlpool Refrigerator Screw
54Support-Evaporator (L.S.)
54Support (R.S.)
56W11693756 Whirlpool Screw Assembly
57876764 Whirlpool Refrigerator Primary Valve
57VALVE, ACCESS (5/8“)
57VALVE, ACCESS (1/2“)
57WP978025 Whirlpool Refrigerator Valve
57876811 Whirlpool Grommet
57978030 Whirlpool Refrigerator Valve
57978027 Whirlpool Refrigerator Primary Valve
57978026 Whirlpool Refrigerator Primary Valve
