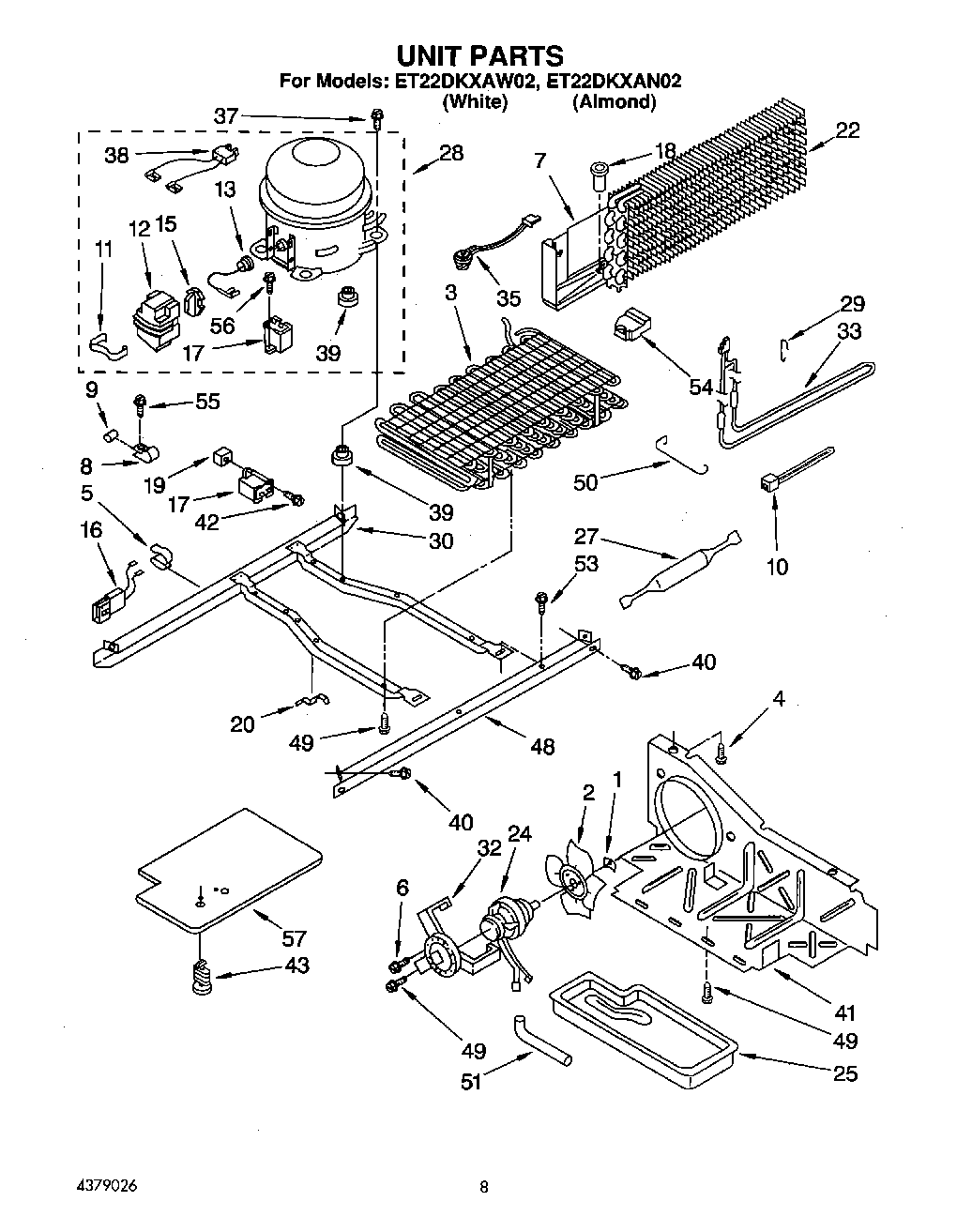

ET22DKXAW02 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	Screw, 8-32 x 1/2
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
8	Tube Clamp (2)
9	Dampener (2)
10	WPW10339879 Whirlpool Wire Tie
11	Strap
12	Cover
13	OVERLOAD
13	Overload
15	WP2262181 Whirlpool Refrigerator Start Relay
16	Housing Plug
17	Running Capacitor (Service)
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	Drain Fitting
19	Screw Grommet
20	Clip (2)
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Support, Heater
30	2304903 Whirlpool Refrigerator Frame
32	Fan, Motor Bracket
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
43	489396 Whirlpool Refrigerator Clip
48	Unit Mounting Rail
49	WP489464 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	WP489427 Whirlpool Refrigerator Screw
54	Support (R.S.)
54	Support-Evaporator (L.S.)
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	W11693756 Whirlpool Screw Assembly
57	876764 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (5/8“)
57	978026 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (1/2“)
57	Cover-Unit Btm.
57	WP978025 Whirlpool Refrigerator Valve
57	978030 Whirlpool Refrigerator Valve
57	978027 Whirlpool Refrigerator Primary Valve
