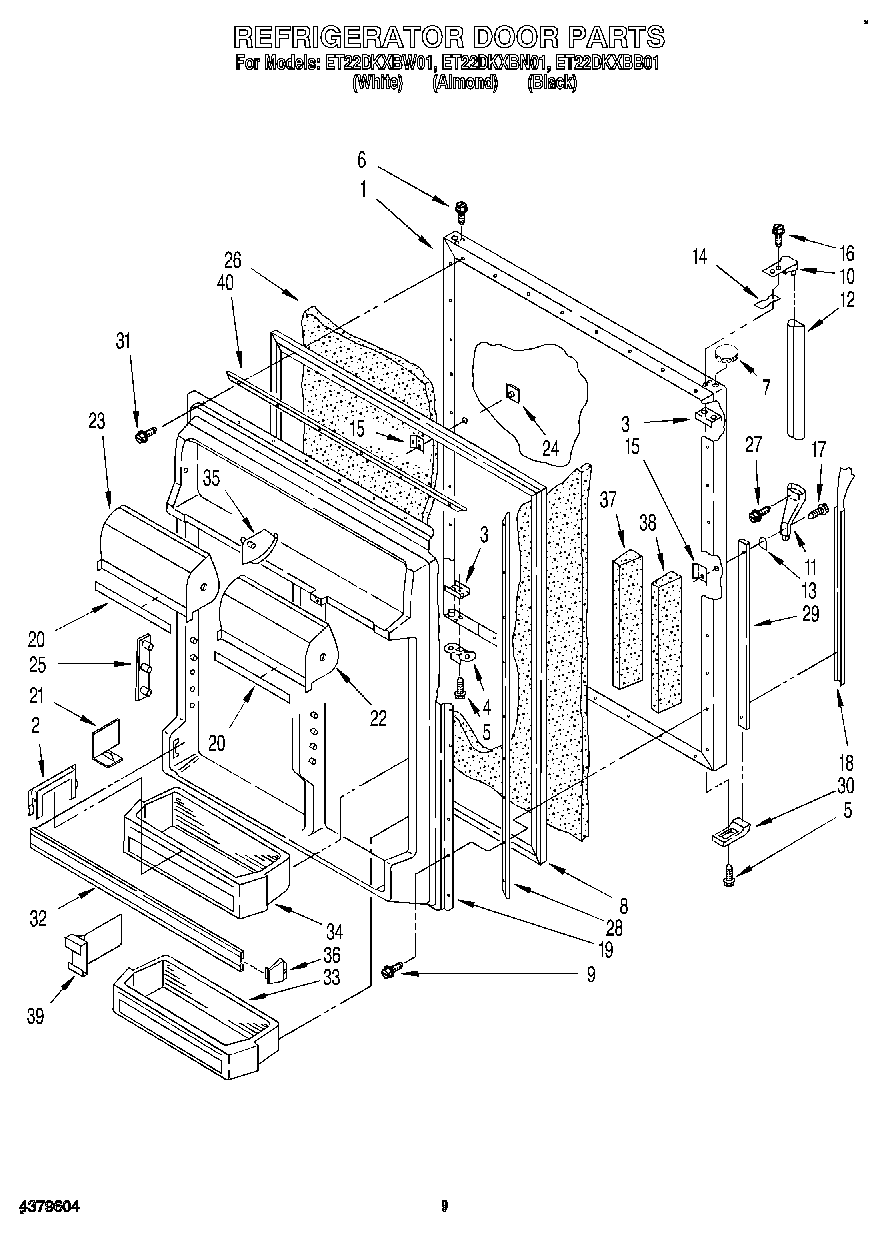

ET22DKXBB01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Black (Also Order Item 27))
2	Retainer, Bottle
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
8	Door Gasket, Magnetic (Black Model)
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center
12	Handle, Center
12	Handle Center (Almond)
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle
18	Insert, Handle (White)
18	Insert, Handle (Almond)
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider-Door
22	Compartment Door
23	Compartment Door,
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	WP2189009 Whirlpool Refrigerator Handle Plug
25	Pin Plate (8)
26	WPL 876029
27	Screw
28	Gasket, Retainer
29	Retainer, Insert
30	WPL 1105804
32	WPL 2162841
33	WPL 2162894
34	WPL 2162895
35	WP1118001 Whirlpool Hinge Pin
36	4386917 Whirlpool Endcap Kit
37	WPL 1122711
38	WPL 1122709
39	Divider (3)
40	Gasket Retainer, Top & Bottom
