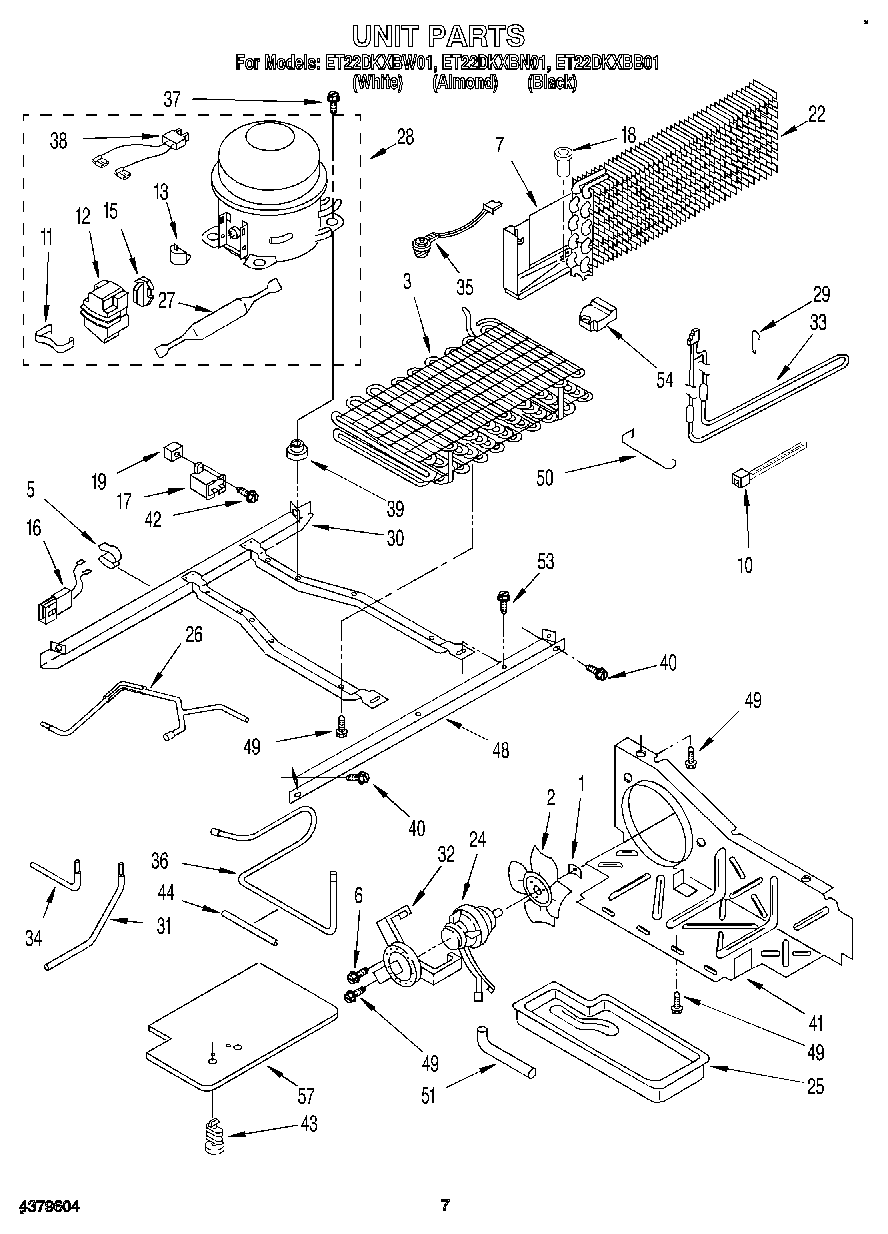

ET22DKXBW01 05 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Drain Pan/ Heat Shield
10WPW10339879 Whirlpool Wire Tie
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
15Relay (See Overload)
16Housing Plug
17Capacitor
18Drain Fitting
19Screw Grommet
22Evaporator
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
26Tube, Discharge
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
29Support, Heater
302304903 Whirlpool Refrigerator Frame
31Tube, Condenser To Heat Loop
32Fan, Motor Bracket
33Heater, Defrost
342154109 Whirlpool Refrigerator Tube
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36Tube, Suction
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
42W11693756 Whirlpool Screw Assembly
43489396 Whirlpool Refrigerator Clip
44SLEEVE
48Unit Mounting Rail
49WP489464 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
51Drain Extension
53WP489427 Whirlpool Refrigerator Screw
54Support-Evaporator (L.S.)
54Support (R.S.)
57VALVE, ACCESS (5/8“)
57978026 Whirlpool Refrigerator Primary Valve
57978027 Whirlpool Refrigerator Primary Valve
57978030 Whirlpool Refrigerator Valve
57WP978025 Whirlpool Refrigerator Valve
57VALVE, ACCESS (1/2“)
57876764 Whirlpool Refrigerator Primary Valve
57Cover-Unit Btm.
