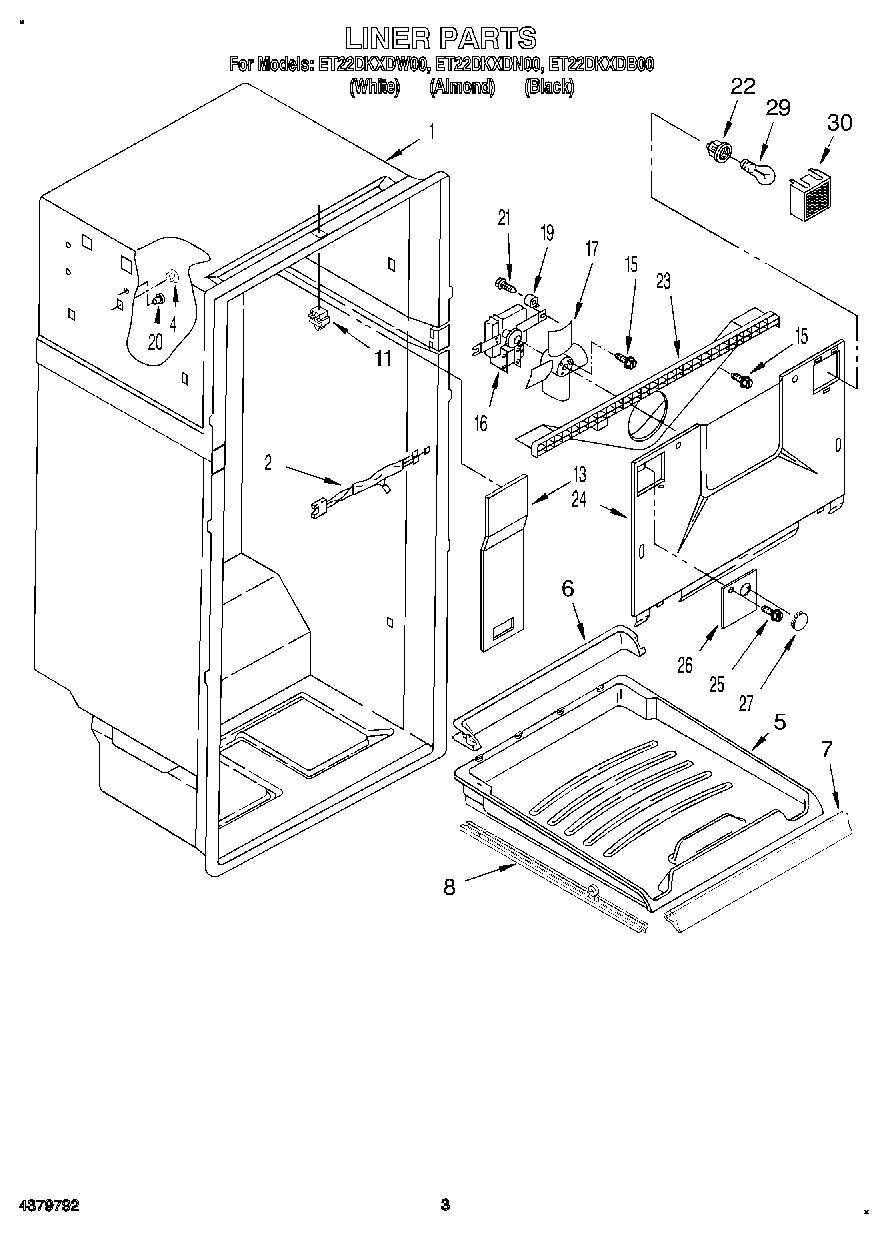

ET22DKXDB00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Wiring, Fan Motor
4	WP941839 Whirlpool Refrigerator Button Plug
5	Floor, Pull-Out Freezer
6	Fence, Freezer Floor
7	Trim, Freezer Floor
8	Track, Freezer Floor (2)
11	W11384469 Whirlpool Door Switch
13	Cover, Air Duct
15	WP489478 Whirlpool Refrigerator Screw
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
19	Grommet
20	Grommet (8)
21	Screw (2)
22	SOCKET
23	Scroll, Fan
24	Evaporator Cover
25	WP488729 Whirlpool Refrigerator Door Screw
26	WP2217784 Whirlpool Refrigerator Cover
27	Hole Plug
29	4396822 Whirlpool Refrigerator Light Bulb
30	Light Lens
