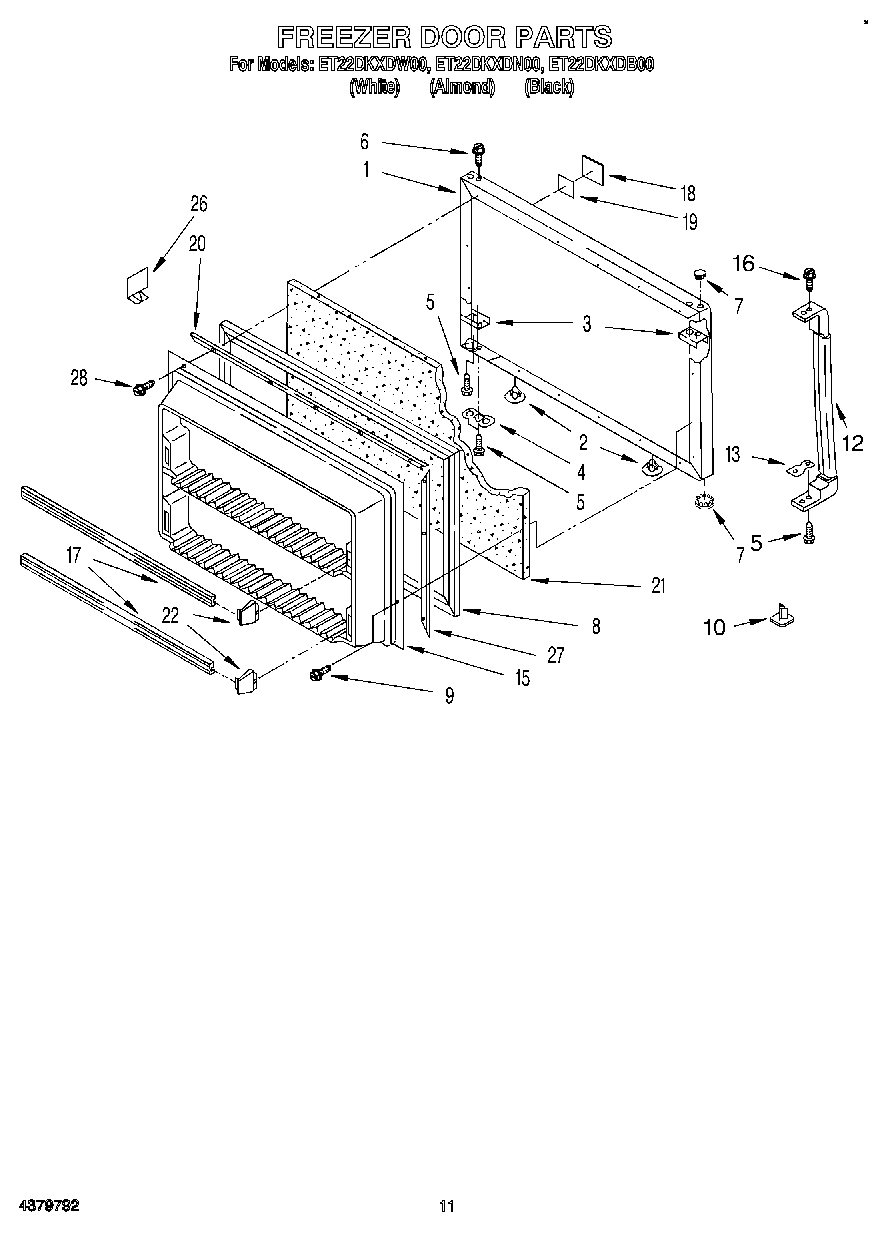

ET22DKXDB00 07 – FREEZER DOOR, LIT/OPTIONAL

ET22DKXDB00 07 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

ET22DKXDB00 07 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2174832
WPL LIT677971
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
Torx Key
WPL LIT2175886
WPL LIT2179516
1Panel, Freezer Door (Also Order Item 21) (White)
1Panel, Freezer Door (Also Order Item 21) (Almond)
1Panel, Freezer Door (Also Order Item 21) (Black)
2Hole Plug (2)
2Hole Plug (2) (Black)
2Hole Plug (2) (Almond)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket Magnetic (Black Model)
82188460A Whirlpool Refrigerator Door Gasket
9WP489069 Whirlpool Compactor Screw
10Hole Plug (Almond)
10Hole Plug (Black)
10Hole Plug (White)
12Handle, Door (Almond Model)
12Handle, Door (Black Model)
12Handle, Door (White Model)
13Shim, Bottom
15Interior Door Panel
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door Shelf (2)
18Nameplate (Almond and Gold Models)
18Nameplate
18Nameplate (Almond)
19Tape Strip
20Gasket Retainer, Top & Bottom
224386917 Whirlpool Endcap Kit
26Divider-Door
27Retainer, Gasket
28Door Reversal Instructions
28WP503695 Whirlpool Refrigerator Sealer
28WPL 799833
28350930 Whirlpool White Spray Paint
28CEMENT, ALUMILASTIC (1 1/4 OZ.)
28WPL 876029
28TAPE, VINYL (3/4 X 108“)
28WP505587 Whirlpool Refrigerator Sealer
28350956 Whirlpool Spray Assembly
28WP542638 Whirlpool Refrigerator Grease
28WP489442 Whirlpool Refrigerator Screw
28799344 Whirlpool Refrigerator Paint
28876370 Whirlpool Refrigerator Insulation
28350942 Whirlpool Spray Paint
28511873 Whirlpool Refrigerator Paint
2872032 Whirlpool Touch Up Paint Black
28212643 Whirlpool Refrigerator Permagum Sealer
28285006 Whirlpool Spray
28606755 Whirlpool Refrigerator Bag
28Almond (Uncut)
28WP72107 Whirlpool Touchup
28833938 Whirlpool Refrigerator Terminal
2872017 Whirlpool Appliance Touch-Up Paint White
