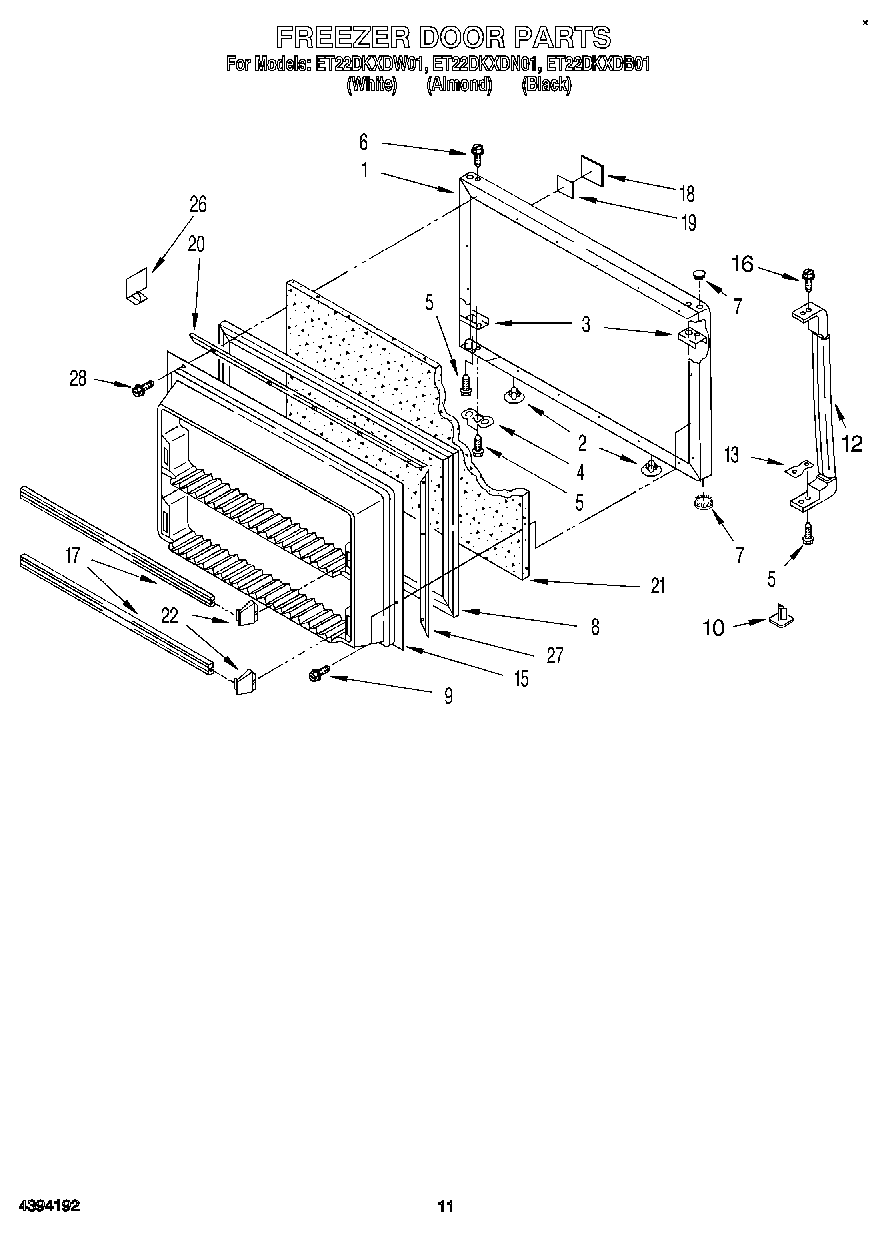

ET22DKXDW01 07 – FREEZER DOOR, LIT/OPTIONAL

ET22DKXDW01 07 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

ET22DKXDW01 07 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2176899
	Torx Key
	WPL LIT2182520
	WPL LIT677971
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2173969
1	Panel, Freezer Door (Also Order Item 21) (Almond)
1	Panel, Freezer Door (Also Order Item 21) (Black)
1	Panel, Freezer Door (Also Order Item 21) (White)
2	Hole Plug (2)
2	Hole Plug (2) (Black)
2	Hole Plug (2) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
7	Hole Plug (Almond)
8	Door Gasket Magnetic (Black Model)
8	2188460A Whirlpool Refrigerator Door Gasket
10	Hole Plug (White)
10	Hole Plug (Almond)
10	Hole Plug (Black)
12	Handle, Door (White Model)
12	Handle, Door (Almond Model)
12	Handle, Door (Black Model)
13	Shim, Bottom
15	Interior Door Panel
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	Nameplate (Black)
18	Nameplate (Almond Model)
18	Nameplate (White)
19	Tape Strip
20	Gasket Retainer, Top & Bottom
22	4386917 Whirlpool Endcap Kit
26	Divider-Door
27	Retainer, Gasket
28	606755 Whirlpool Refrigerator Bag
28	511873 Whirlpool Refrigerator Paint
28	350942 Whirlpool Spray Paint
28	212643 Whirlpool Refrigerator Permagum Sealer
28	Almond (Uncut)
28	WP72107 Whirlpool Touchup
28	799344 Whirlpool Refrigerator Paint
28	72017 Whirlpool Appliance Touch-Up Paint White
28	350956 Whirlpool Spray Assembly
28	350930 Whirlpool White Spray Paint
28	833938 Whirlpool Refrigerator Terminal
28	876370 Whirlpool Refrigerator Insulation
28	WPL 799833
28	Door Reversal Instructions
28	CEMENT, ALUMILASTIC (1 1/4 OZ.)
28	TAPE, VINYL (3/4 X 108“)
28	WP542638 Whirlpool Refrigerator Grease
28	WP505587 Whirlpool Refrigerator Sealer
28	WP489442 Whirlpool Refrigerator Screw
28	285006 Whirlpool Spray
28	WP503695 Whirlpool Refrigerator Sealer
28	WPL 876029
28	72032 Whirlpool Touch Up Paint Black
