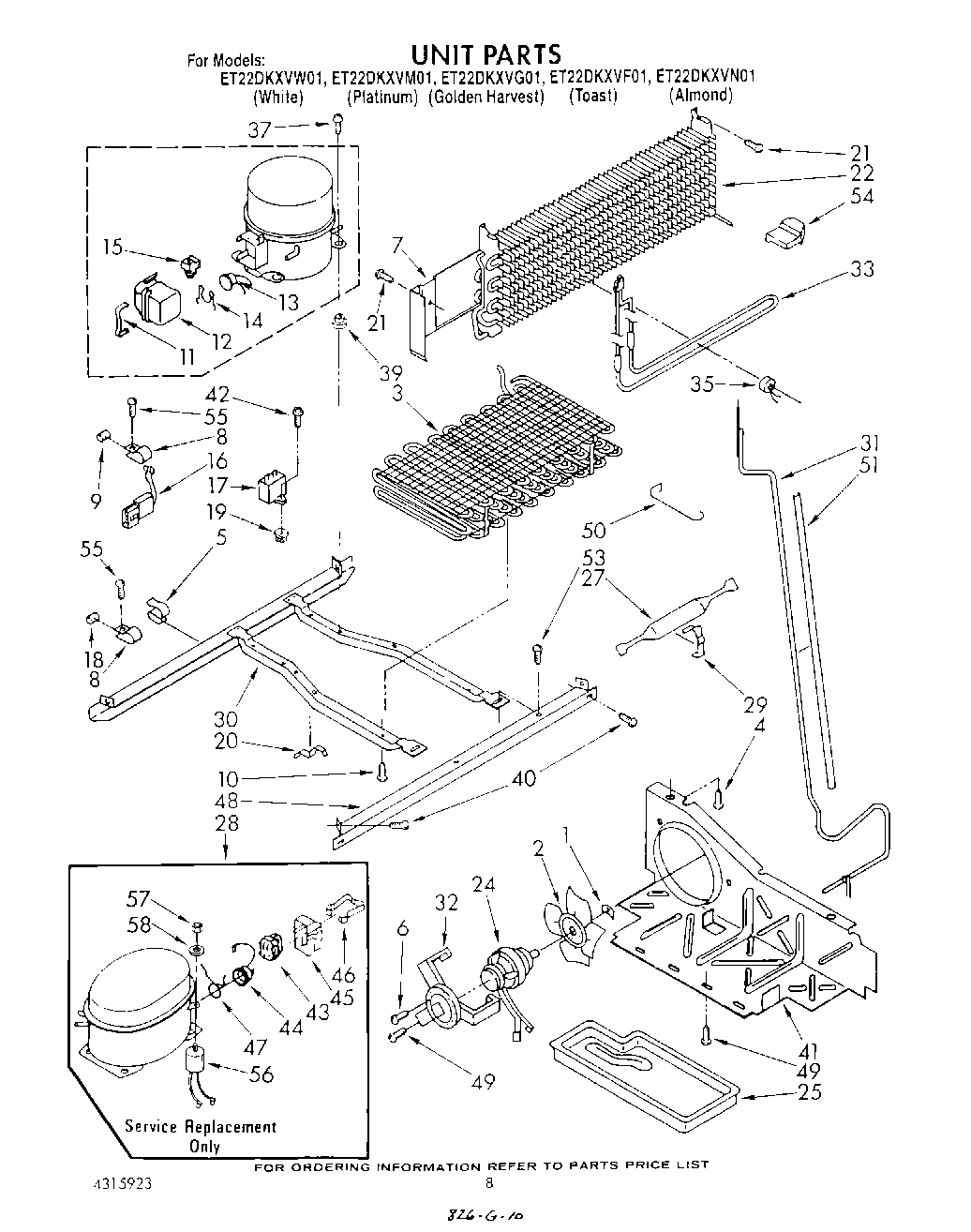

ET22DKXVF01 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	Screw, 8-32 x 1/2
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener (2)
10	WP489069 Whirlpool Compactor Screw
11	case spring
12	Case, Relay
13	Overload
14	Spring, Overload
15	Relay
16	Housing Plug
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	WP2158826 Whirlpool Refrigerator Dampener
19	Screw Grommet
20	Clip (2)
21	W11624204 Whirlpool Screw
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
29	Clamp, Dryer
30	2304903 Whirlpool Refrigerator Frame
31	Exchanger, Heat
32	Bracket, Motor
33	Heater, Defrost
35	WP4387500 Whirlpool Refrigerator Bimetallic Defrost
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Baffle, Air
42	W11693756 Whirlpool Screw Assembly
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Overload Spring
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	Guard, Fan
51	WP2002171 Whirlpool Refrigerator Sleeve
53	Screw, 1/4-28 x 1/2 (2)
54	Support (R.S.)
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	Capacitor
57	Nut
58	VALVE, ACCESS (5/8“)
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	WP978025 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (1/2“)
58	Washer
