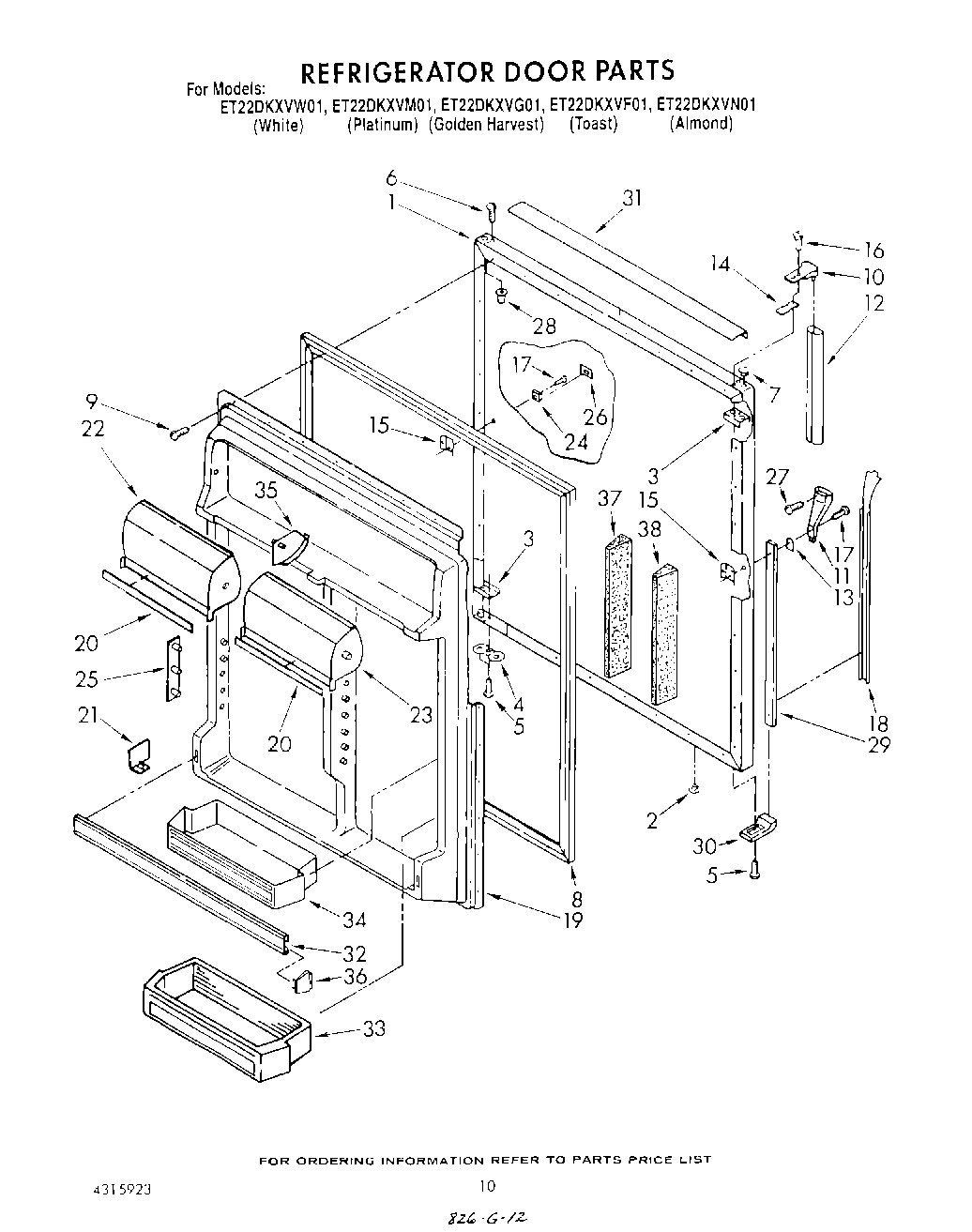

ET22DKXVN01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Almond)
1	Panel, Refrigerator Door (Golden Harvest)
1	Panel, Refrigerator Door (Platinum) (Also Order Item 23)
1	Panel, Refrigerator Door (Toast)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Screw (Repair)
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Toast)
7	Hole Plug (Platinum)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center (For Platinum Model Only)
12	Handle, Center
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	Screw (Repair)
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle
18	Insert, Handle (For Platinum Model Only)
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider, Shelf
22	Compartment Door, Right Side
23	Compartment Door, Left Side
24	Clip, Medallion
25	Pin Plate (8)
26	Medallion
27	Screw
28	Cap, Hinge Sleeve (2)
29	Retainer, Insert
30	WPL 1105804
31	Trim, Door
32	Trim, Door Shelf
33	Bin, Door Shelf (2)
34	Bin, Door Shelf (Deep) (2)
35	WP1118001 Whirlpool Hinge Pin
36	4386917 Whirlpool Endcap Kit
37	WPL 1122711
38	WPL 1122709
