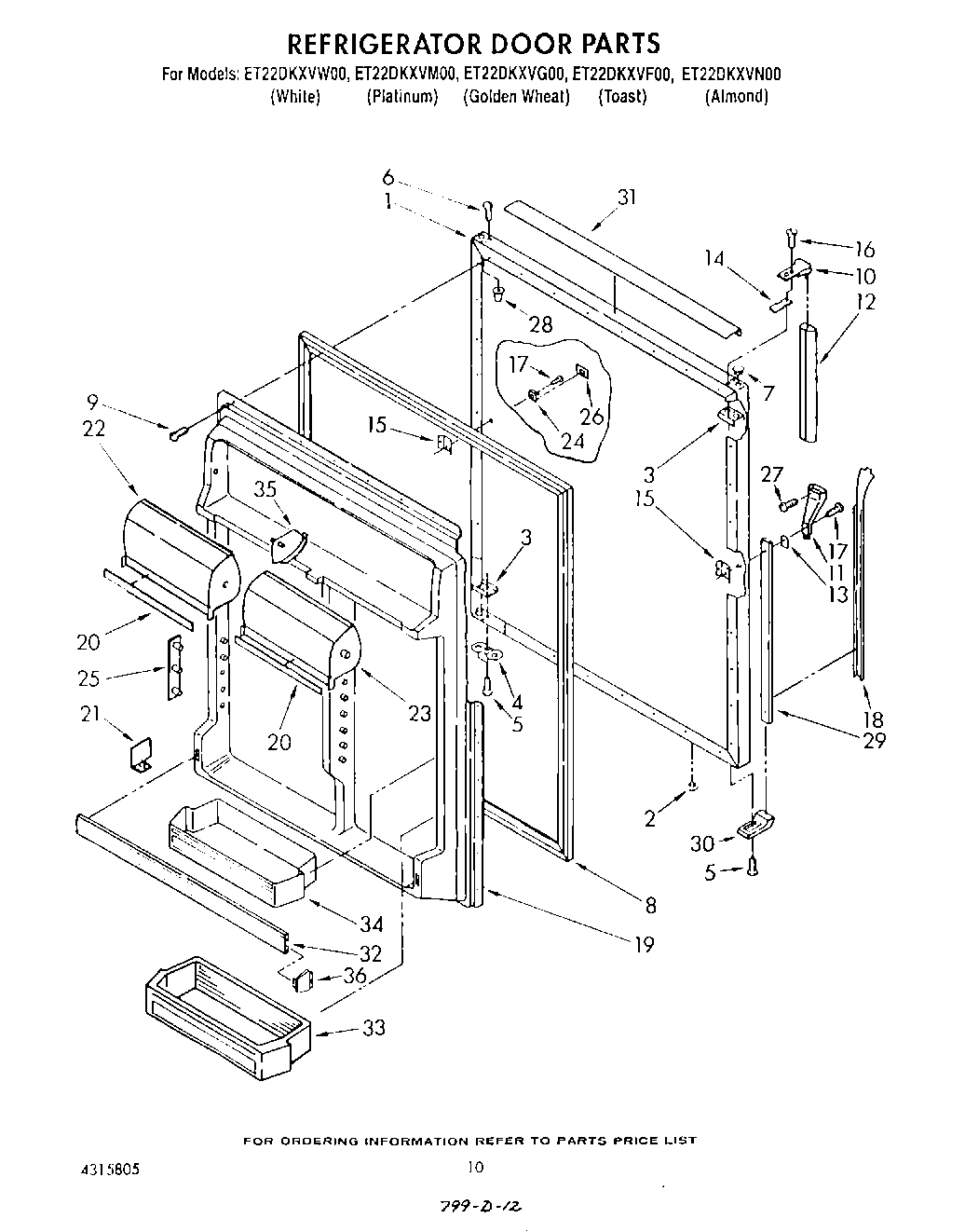

ET22DKXVW00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Toast)
1	Panel, Refrigerator Door (Platinum) (Also Order Item 23)
1	Panel, Refrigerator Door (Golden Harvest)
1	Panel, Refrigerator Door (Almond)
1	Panel, Refrigerator Door (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Screw (Repair)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
7	Hole Plug (Toast)
7	Hole Plug (Platinum)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center
12	Handle, Center (For Platinum Model Only)
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
16	Screw (Repair)
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle (For Platinum Model Only)
18	Insert, Handle
19	Interior Door Panel
20	Trim, Door Compartment
21	Divider, Shelf
22	Compartment Door, Right Side
23	Compartment Door, Left Side
24	Clip, Medallion
25	Pin Plate (8)
26	Medallion
27	Screw
28	Cap, Hinge Sleeve (2)
29	Retainer, Insert
30	WPL 1105804
31	Trim, Door
32	Trim, Door Shelf
33	Bin, Door Shelf (2)
34	Bin, Door Shelf (Deep) (2)
35	WP1118001 Whirlpool Hinge Pin
36	4386917 Whirlpool Endcap Kit
