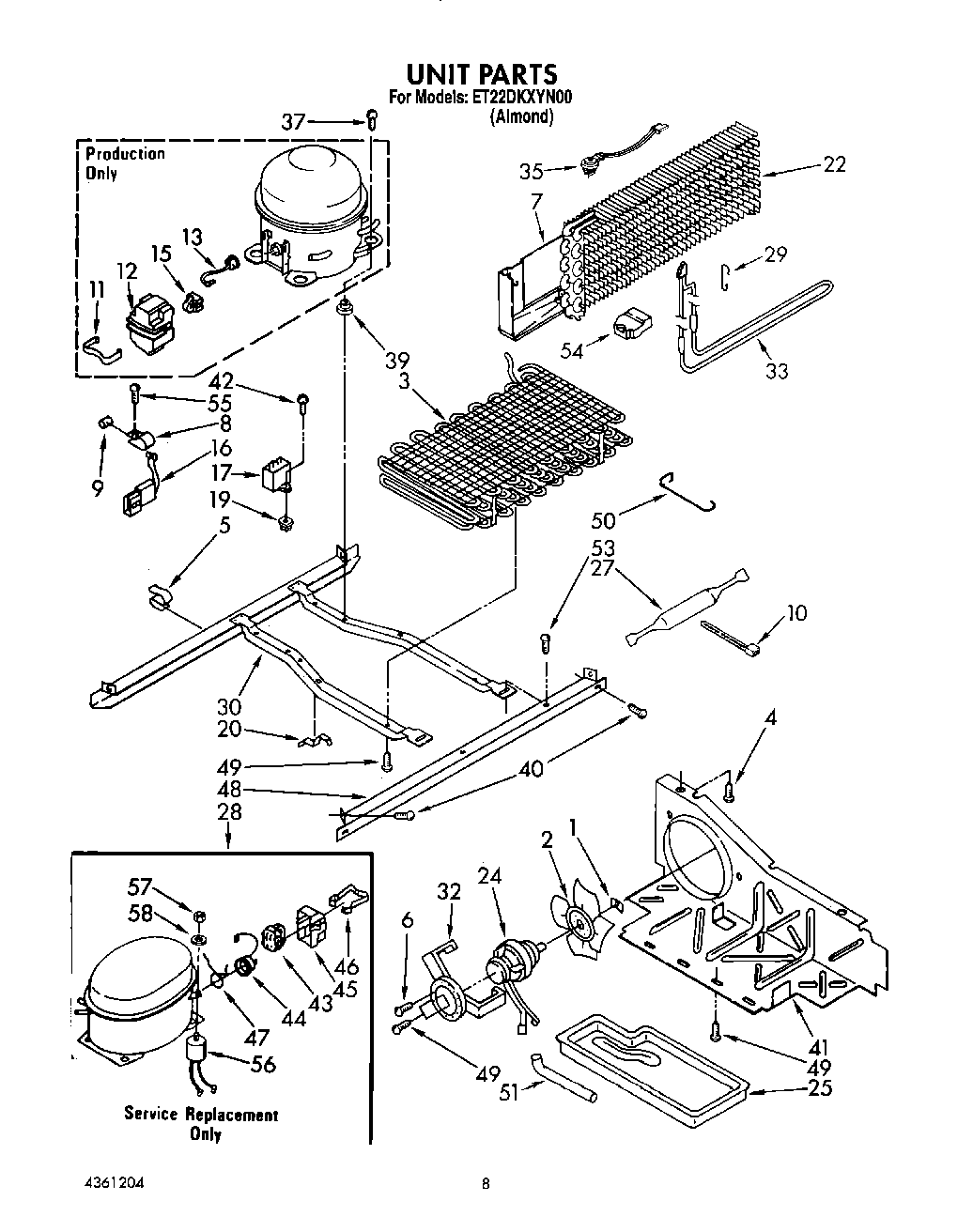

ET22DKXYN00 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	Screw, 8-32 x 1/2
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
8	Clamp Tube
9	Dampener (2)
10	WPW10339879 Whirlpool Wire Tie
11	case spring
12	Case, Relay
13	Overload
15	2154436 Whirlpool Refrigerator Start Relay
16	Housing Plug
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Screw Grommet
20	Clip (2)
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 59) (Also Order 876765 Tube Kit)
29	Support, Heater
30	2304903 Whirlpool Refrigerator Frame
32	Bracket, Motor
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover
46	Strap
47	Overload Spring
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	WP489427 Whirlpool Refrigerator Screw
54	Support (L.S.)
54	Support (R.S.)
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
57	Nut
58	978026 Whirlpool Refrigerator Primary Valve
58	WP978025 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (5/8“)
58	978030 Whirlpool Refrigerator Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (1/2“)
58	876764 Whirlpool Refrigerator Primary Valve
58	Washer
