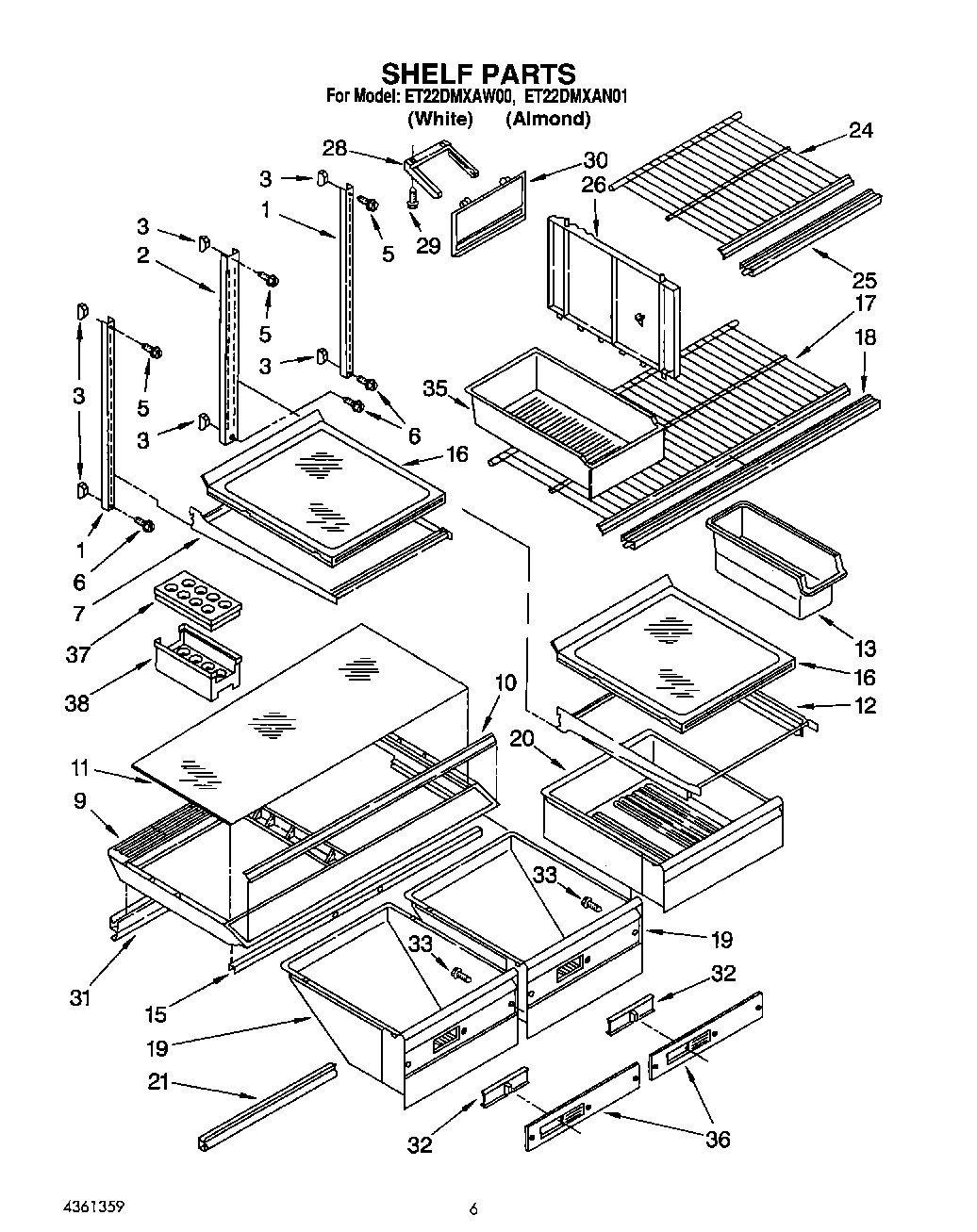

ET22DMXAW01 05 – SHELF, LIT/OPTIONAL

ET22DMXAW01 05 – SHELF, LIT/OPTIONAL

Written by

in

ET22DMXAW01 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4361359
Torx Key
WPL LIT2162621
WPL LIT2154076
WPL LIT2160152
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13WP982704 Whirlpool Refrigerator Container
15WP2172748 Whirlpool Drawer Support
16Shelf Assembly, Spillguard
17Shelf, Freezer
18Trim, Shelf Front
19Pan, Crisper
20Pan, Meat
21Gasket-Front
24Shelf, Freezer (Top)
25Trim, Shelf
26Divider
28Slide, Ice Compartment
29WP489478 Whirlpool Refrigerator Screw
30Door, Ice Compartment
31Gasket, Rear
32Slide, Crisper
33Screw (3)
35PAN-ICE
36Crisper Front
37Egg Container-Top
38WPL 799833
3872032 Whirlpool Touch Up Paint Black
38350942 Whirlpool Spray Paint
38350930 Whirlpool White Spray Paint
38212643 Whirlpool Refrigerator Permagum Sealer
38Almond (Uncut)
38Leveler (Thinner)
38WP72107 Whirlpool Touchup
38799344 Whirlpool Refrigerator Paint
3872017 Whirlpool Appliance Touch-Up Paint White
38511873 Whirlpool Refrigerator Paint
38606755 Whirlpool Refrigerator Bag
38Egg Container- Bottom
38WPL 876029
38CEMENT, ALUMILASTIC (1 1/4 OZ.)
38TAPE, VINYL (3/4 X 108“)
38WP542638 Whirlpool Refrigerator Grease
38WP505587 Whirlpool Refrigerator Sealer
38WP503695 Whirlpool Refrigerator Sealer
38876370 Whirlpool Refrigerator Insulation
38833938 Whirlpool Refrigerator Terminal
38285006 Whirlpool Spray
38350956 Whirlpool Spray Assembly
