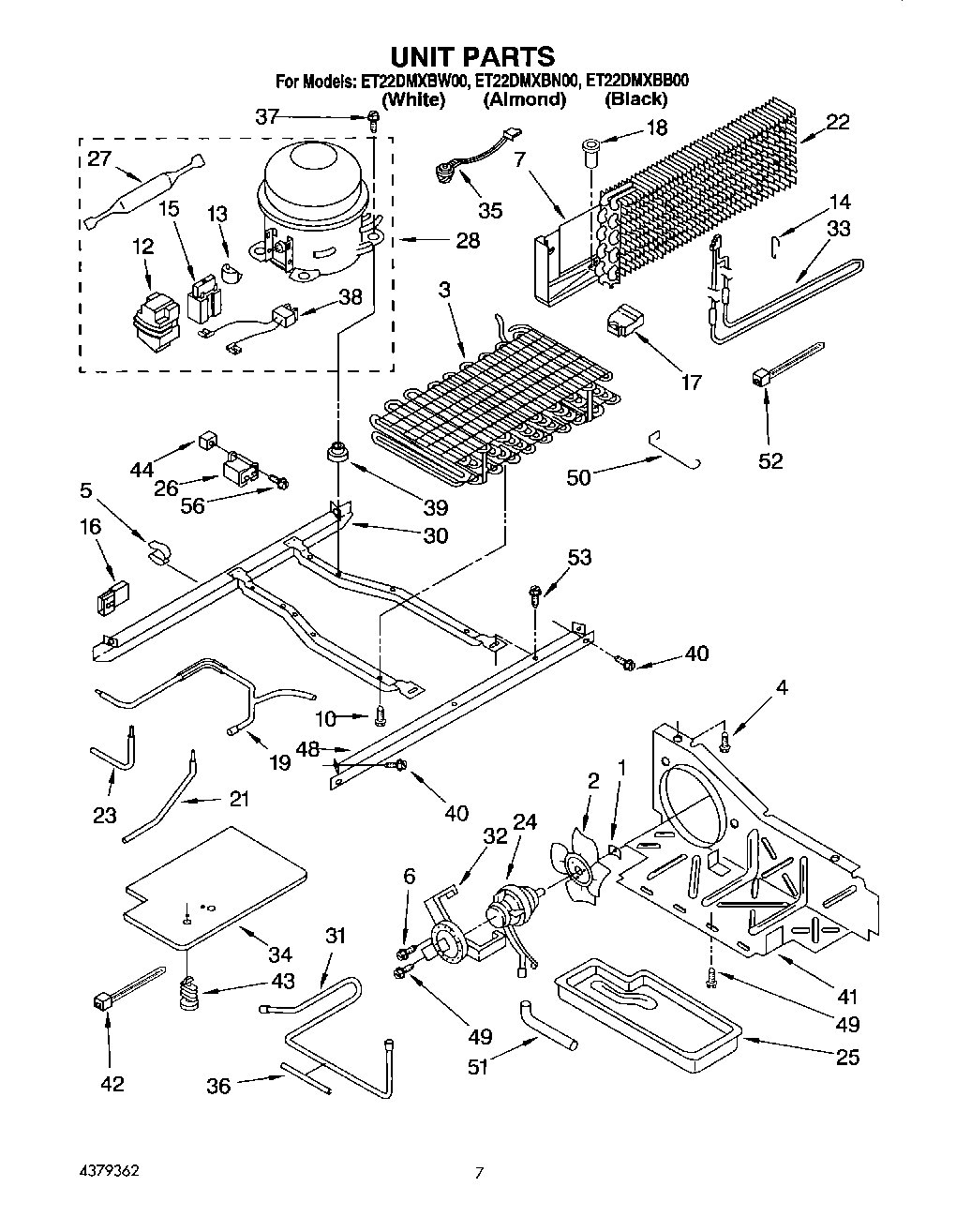

ET22DMXBB00 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
14	Support, Heater
15	WP2262181 Whirlpool Refrigerator Start Relay
16	Housing Plug
17	Support (R.S.)
17	Support-Evaporator (L.S.)
18	Drain Fitting
19	Tube, Discharge
21	Tube, Condenser To Heat Loop
22	Evaporator
23	2154109 Whirlpool Refrigerator Tube
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Running Capacitor (Service)
26	Capacitor
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
30	2304903 Whirlpool Refrigerator Frame
31	Tube, Suction
32	Fan, Motor Bracket
33	Heater, Defrost
34	Cover-Unit Btm.
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	SLEEVE
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
43	489396 Whirlpool Refrigerator Clip
44	Screw Grommet
48	Unit Mounting Rail
49	WP489464 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	Drain Extension
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
56	VALVE, ACCESS (5/8“)
56	W11693756 Whirlpool Screw Assembly
56	978026 Whirlpool Refrigerator Primary Valve
56	876764 Whirlpool Refrigerator Primary Valve
56	VALVE, ACCESS (1/2“)
56	WP978025 Whirlpool Refrigerator Valve
56	978027 Whirlpool Refrigerator Primary Valve
56	978030 Whirlpool Refrigerator Valve
