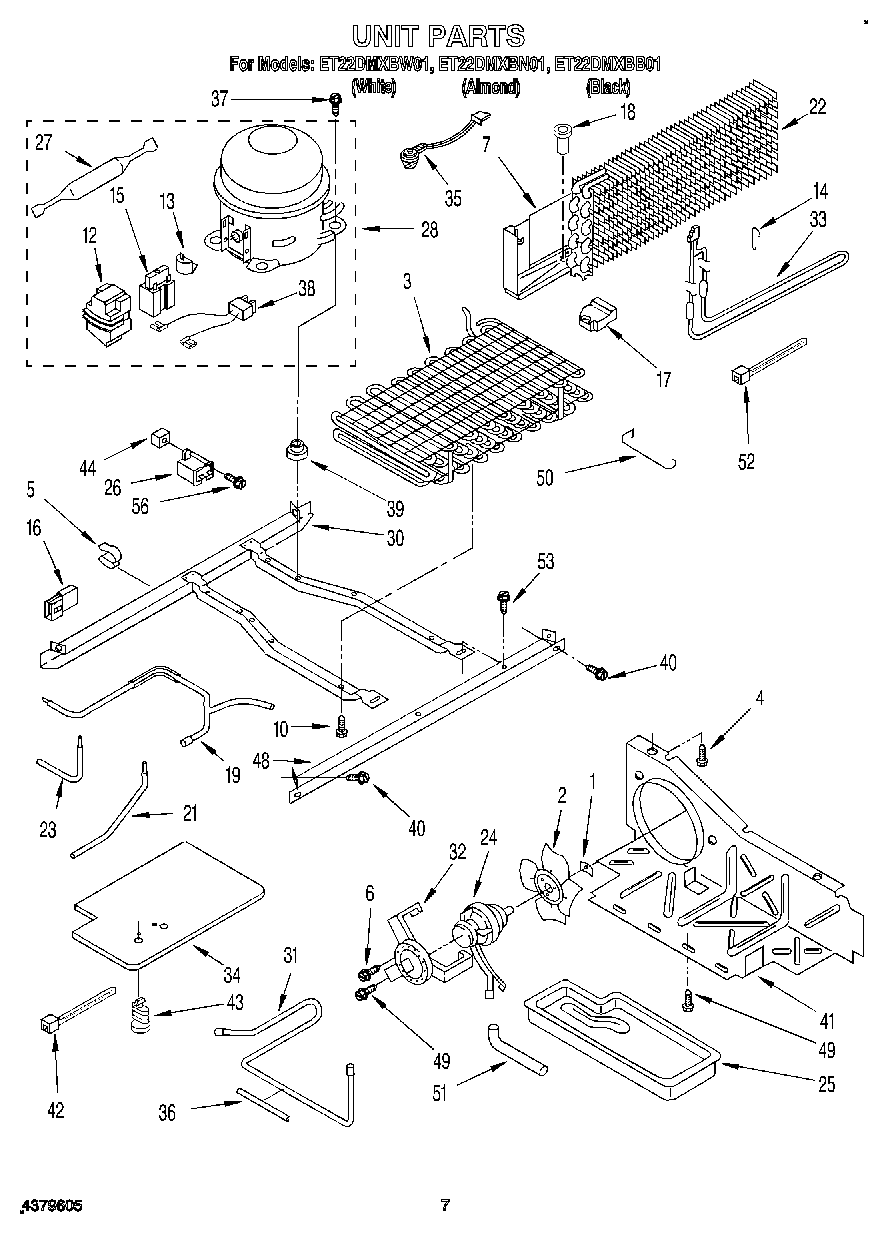

ET22DMXBW01 05 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Drain Pan/ Heat Shield
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
14Support, Heater
15Relay (See Overload)
16Housing Plug
17Support (R.S.)
17Support-Evaporator (L.S.)
18Drain Fitting
19Tube, Discharge
21Tube, Condenser To Heat Loop
22Evaporator
232154109 Whirlpool Refrigerator Tube
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
26Capacitor
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
302304903 Whirlpool Refrigerator Frame
31Tube, Suction
32Fan, Motor Bracket
33Heater, Defrost
34Cover-Unit Btm.
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36SLEEVE
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
43489396 Whirlpool Refrigerator Clip
44Screw Grommet
48Unit Mounting Rail
49WP489464 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
51Drain Extension
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
56VALVE, ACCESS (5/8“)
56W11693756 Whirlpool Screw Assembly
56978027 Whirlpool Refrigerator Primary Valve
56876764 Whirlpool Refrigerator Primary Valve
56VALVE, ACCESS (1/2“)
56WP978025 Whirlpool Refrigerator Valve
56978030 Whirlpool Refrigerator Valve
56978026 Whirlpool Refrigerator Primary Valve
