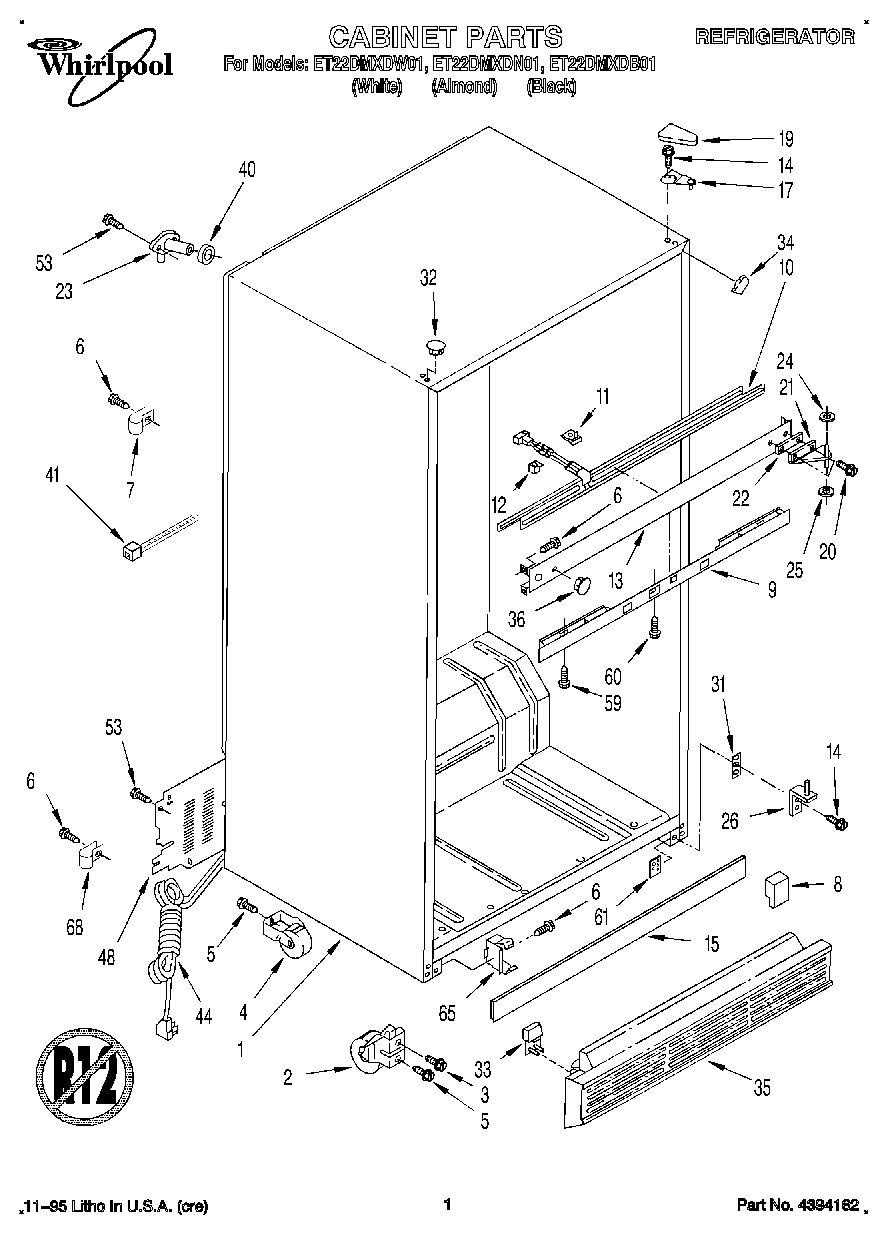

ET22DMXDB01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP489478 Whirlpool Refrigerator Screw
7	WP488366 Whirlpool Refrigerator Clamp
8	Insert, Air Baffle
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail
15	Deck Rail Cover
17	WP2189412 Whirlpool Refrigerator Door Hinge
19	WP2213363 Whirlpool Refrigerator Cover
19	Cover, Hinge (Almond)
19	WP2213360 Whirlpool Refrigerator Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP2196157 Whirlpool Fill Tube
24	WP487802 Whirlpool Refrigerator Washer
25	WP489200 Whirlpool Refrigerator Washer
26	WP2254473 Whirlpool Refrigerator Door Hinge
31	Spacer
32	Hole Plug (6) (Almond)
32	WP2151652 Whirlpool Refrigerator Button Plug
32	WP2183998 Whirlpool Refrigerator Button Plug
33	Corner Filler, Grille (White)
33	Corner Filler, Grille (Almond)
33	Corner Filler, Grille
34	Filler, Wrap Corner (Black)
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Almond)
35	Grille (White)
35	Grille (Almond)
35	Grille (Black)
36	Hole Plug (4) (White)
40	WP1106508 Whirlpool Refrigerator Gasket
41	WPW10339879 Whirlpool Wire Tie
44	Cord, Service
48	Cover, Unit
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap-Plate, Bottom Hinge
65	WP2155013 Whirlpool Refrigerator Clip
68	549193 Whirlpool Refrigerator Power Clamp
