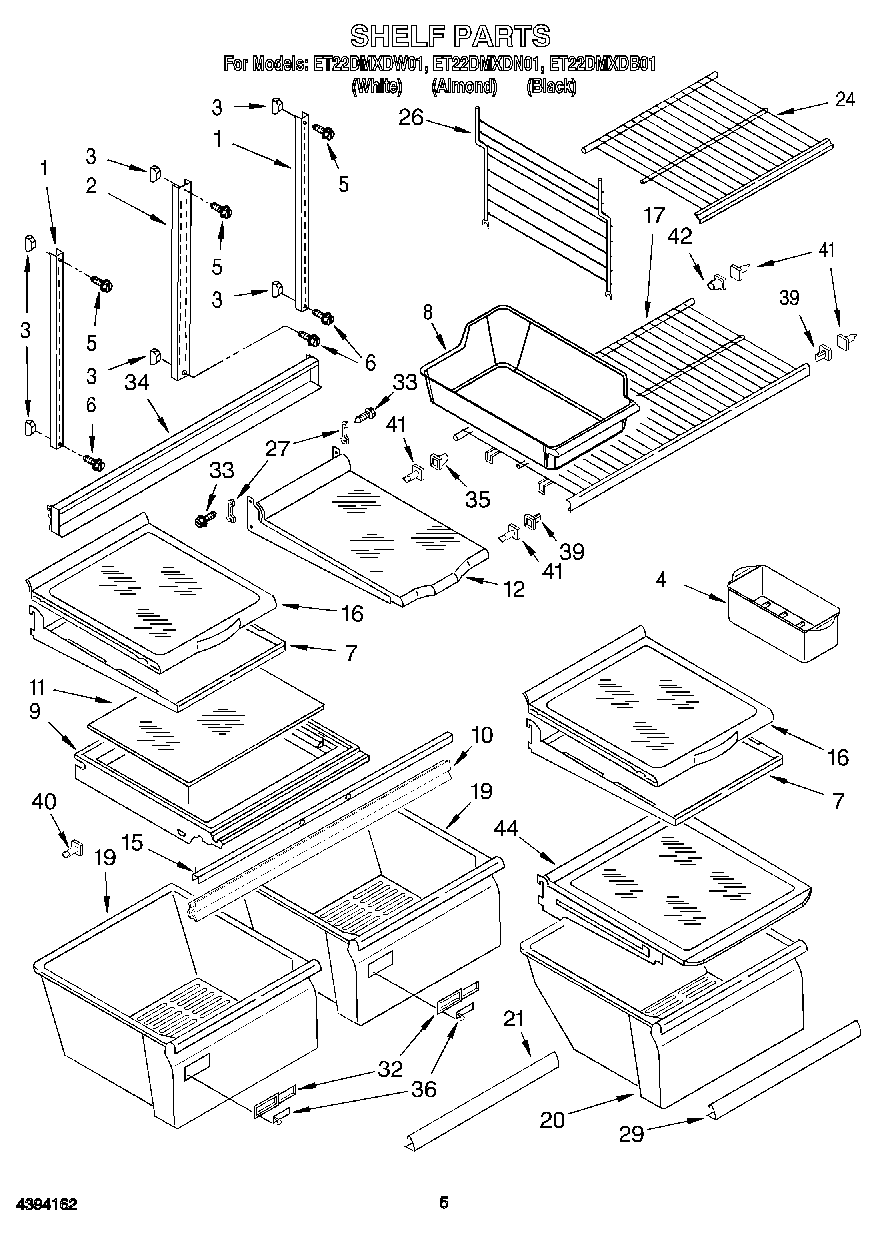

ET22DMXDB01 04 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	W10136387A Whirlpool Refrigerator Egg Container
5	Screw (3)
6	WP489474 Whirlpool Refrigerator Screw
7	Frame Assembly, Cantilever (3)
8	2254352A Whirlpool Refrigerator Ice Container
9	Crisper Cover
10	Crisper Gasket, Front
11	Glass, Crisper Cover
12	Shelf, Slide
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
19	Pan, Crisper
20	Pan, Meat
21	WP2179234 Whirlpool Refrigerator Pan Trim
24	Shelf, Freezer (Top)
26	Divider
27	Hook, Shelf
29	WP2179243 Whirlpool Refrigerator Pan Trim
32	WP2179343 Whirlpool Refrigerator Control Body
33	Screw
34	Slide, Track
36	WP2179342 Whirlpool Refrigerator Slide
39	Stud, Front R.S.
40	W10854959 Whirlpool Refrigerator Shelf Stud
41	Stud, Support
42	819091 Whirlpool Refrigerator Shelf Stud
44	Shelf, Meat Pan
