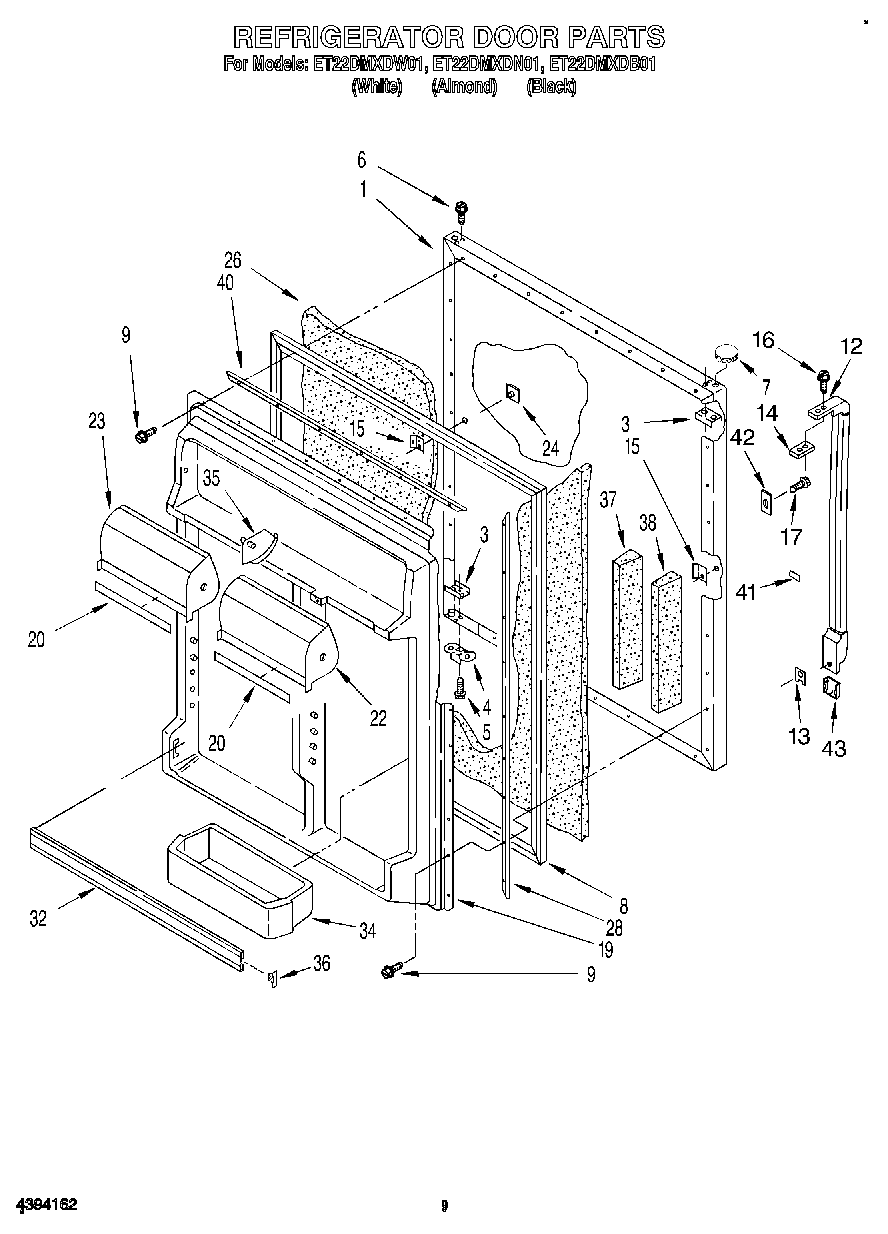

ET22DMXDB01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Black (Also Order Item 27))
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212651 Whirlpool Refrigerator Button Plug
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
8	Door Gasket, Magnetic (Black Model)
9	WP489442 Whirlpool Refrigerator Screw
12	Handle (Black)
12	Handle (Almond)
12	Handle (White)
14	Shim, Bottom
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
19	Interior Door Panel
20	Trim, Door Compartment
22	Compartment Door
23	Compartment Door
24	WP2189009 Whirlpool Refrigerator Handle Plug
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
26	WPL 876029
28	Gasket, Retainer
32	Trim, Door Shelf
34	Bin, Door Shelf
35	WP1118001 Whirlpool Hinge Pin
36	Plug, Trim (2)
37	WPL 2174751
38	WPL 1122709
40	Gasket Retainer, Top & Bottom
41	Shim
42	Shim, Handle
43	Cover, End Cap (Almond)
43	Cover, Endcap (Black)
43	Cover, Endcap (White)
