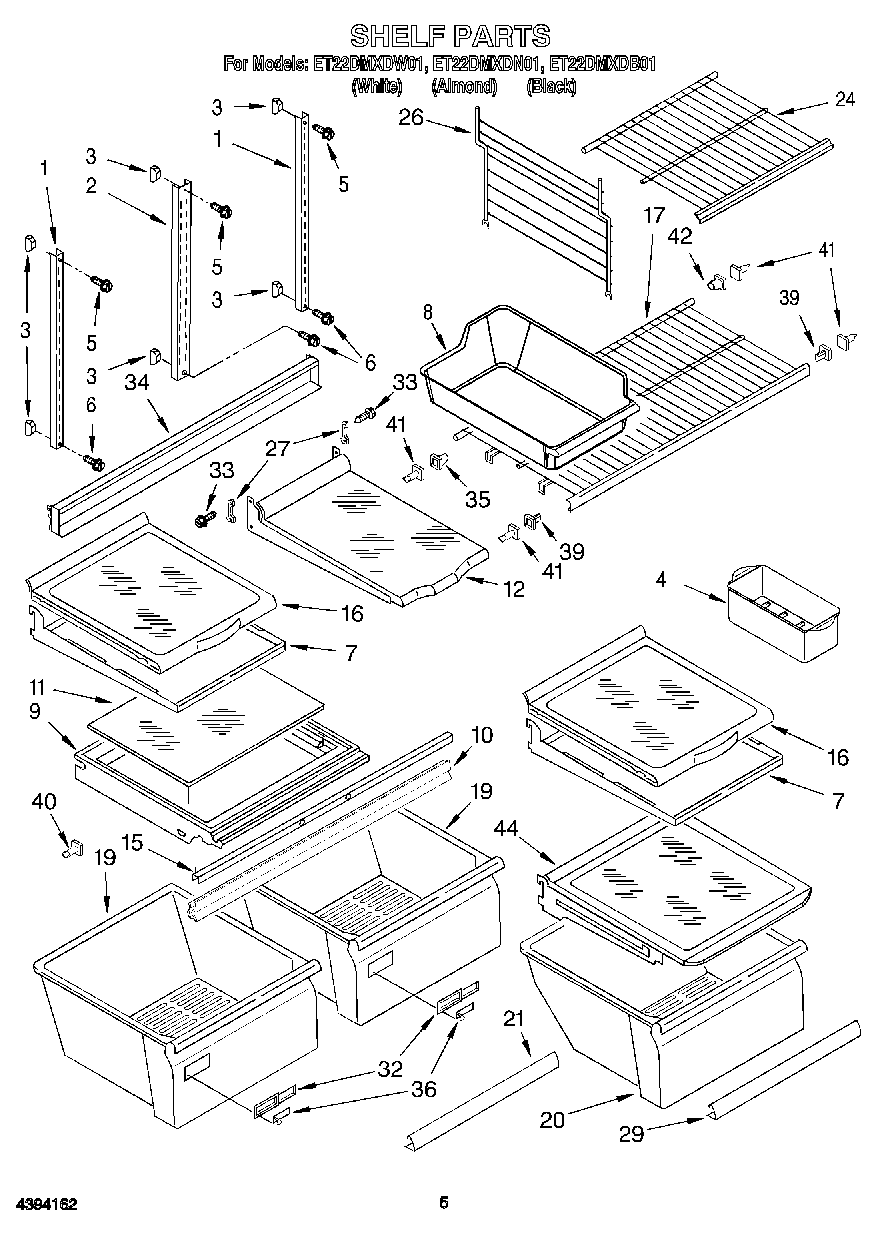

| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | 520965 Whirlpool Refrigerator Support |
| 4 | W10136387A Whirlpool Refrigerator Egg Container |
| 5 | Screw (3) |
| 6 | WP489474 Whirlpool Refrigerator Screw |
| 7 | Frame Assembly, Cantilever (3) |
| 8 | 2254352A Whirlpool Refrigerator Ice Container |
| 9 | Crisper Cover |
| 10 | Crisper Gasket, Front |
| 11 | Glass, Crisper Cover |
| 12 | Shelf, Slide |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | Glass, Shelf |
| 17 | Shelf, Freezer |
| 19 | Pan, Crisper |
| 20 | Pan, Meat |
| 21 | WP2179234 Whirlpool Refrigerator Pan Trim |
| 24 | Shelf, Freezer (Top) |
| 26 | Divider |
| 27 | Hook, Shelf |
| 29 | WP2179243 Whirlpool Refrigerator Pan Trim |
| 32 | WP2179343 Whirlpool Refrigerator Control Body |
| 33 | Screw |
| 34 | Slide, Track |
| 36 | WP2179342 Whirlpool Refrigerator Slide |
| 39 | Stud, Front R.S. |
| 40 | W10854959 Whirlpool Refrigerator Shelf Stud |
| 41 | Stud, Support |
| 42 | 819091 Whirlpool Refrigerator Shelf Stud |
| 44 | Shelf, Meat Pan |
