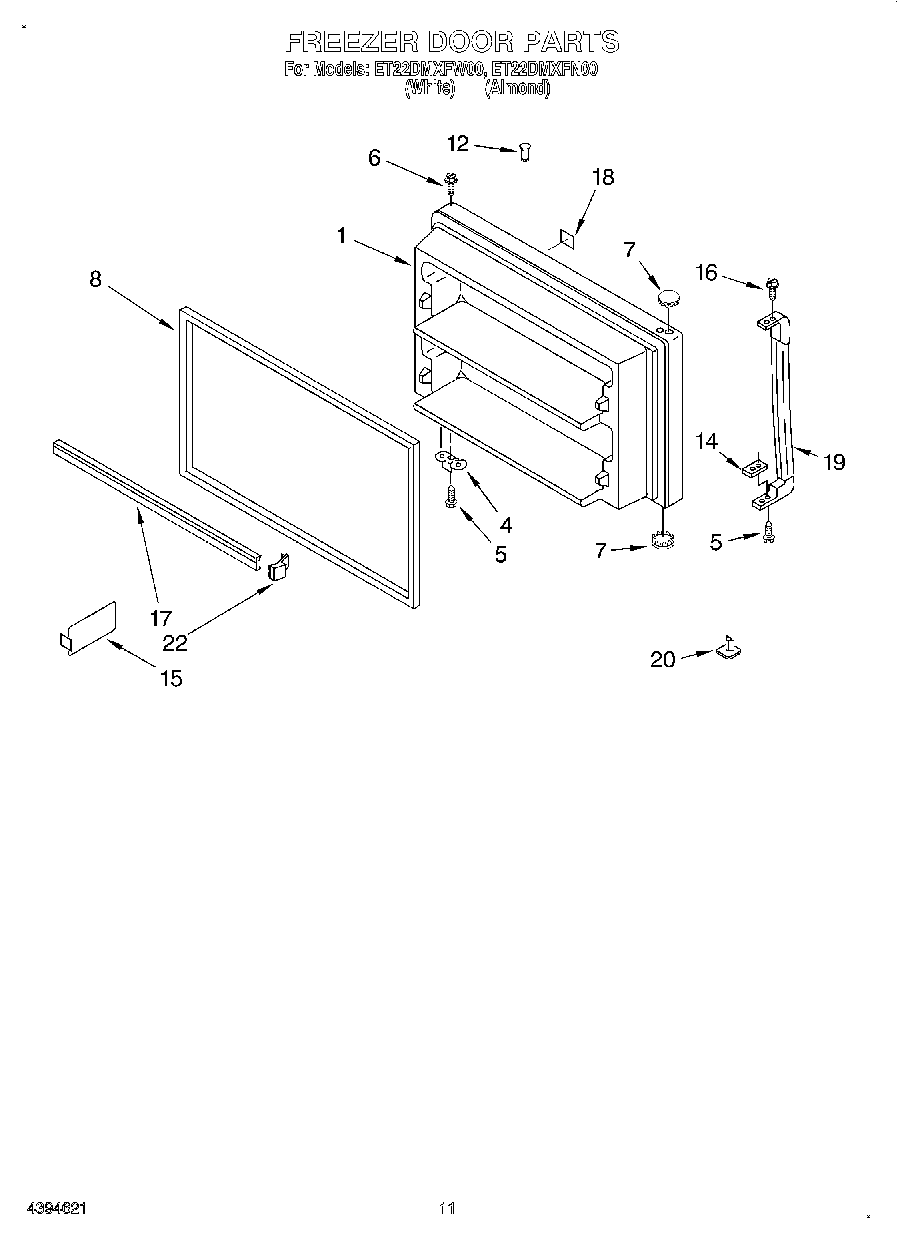

ET22DMXFW00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2195481
	WPL LIT677971
	WPL LIT2195608
	Torx Key
	WPL LIT2195369
1	Freezer Door (Includes No.8) (White)
1	Freezer Door (Includes No.8) (Almond)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	WHITE DOOR GASKET-FIP
12	WP2183003 Whirlpool Thimble
14	Shim, Bottom
15	Divider-Door
16	WP488920 Whirlpool Refrigerator Screw
17	Trim-Door (2)
18	Nameplate
18	Nameplate (Almond)
19	Handle (White)
19	Handle (Almond)
20	Hole Plug (White)
20	Hole Plug (Almond)
22	ENDCAP
100	WPL 876029
100	511873 Whirlpool Refrigerator Paint
100	350942 Whirlpool Spray Paint
100	212643 Whirlpool Refrigerator Permagum Sealer
100	Door Reversal Instructions
100	350930 Whirlpool White Spray Paint
100	Almond (Uncut)
100	WP72107 Whirlpool Touchup
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	FeaturePak (Includes 4,12, 14,16,20,22,27, 37) Also See Ref. & Frz Door Pages.
100	606755 Whirlpool Refrigerator Bag
100	833938 Whirlpool Refrigerator Terminal
100	WPL 799833
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	285006 Whirlpool Spray
100	72032 Whirlpool Touch Up Paint Black
100	WPL 799832
100	TAPE, VINYL (3/4 X 108“)
100	WP542638 Whirlpool Refrigerator Grease
100	WP505587 Whirlpool Refrigerator Sealer
100	WP503695 Whirlpool Refrigerator Sealer
100	876370 Whirlpool Refrigerator Insulation
100	350956 Whirlpool Spray Assembly
