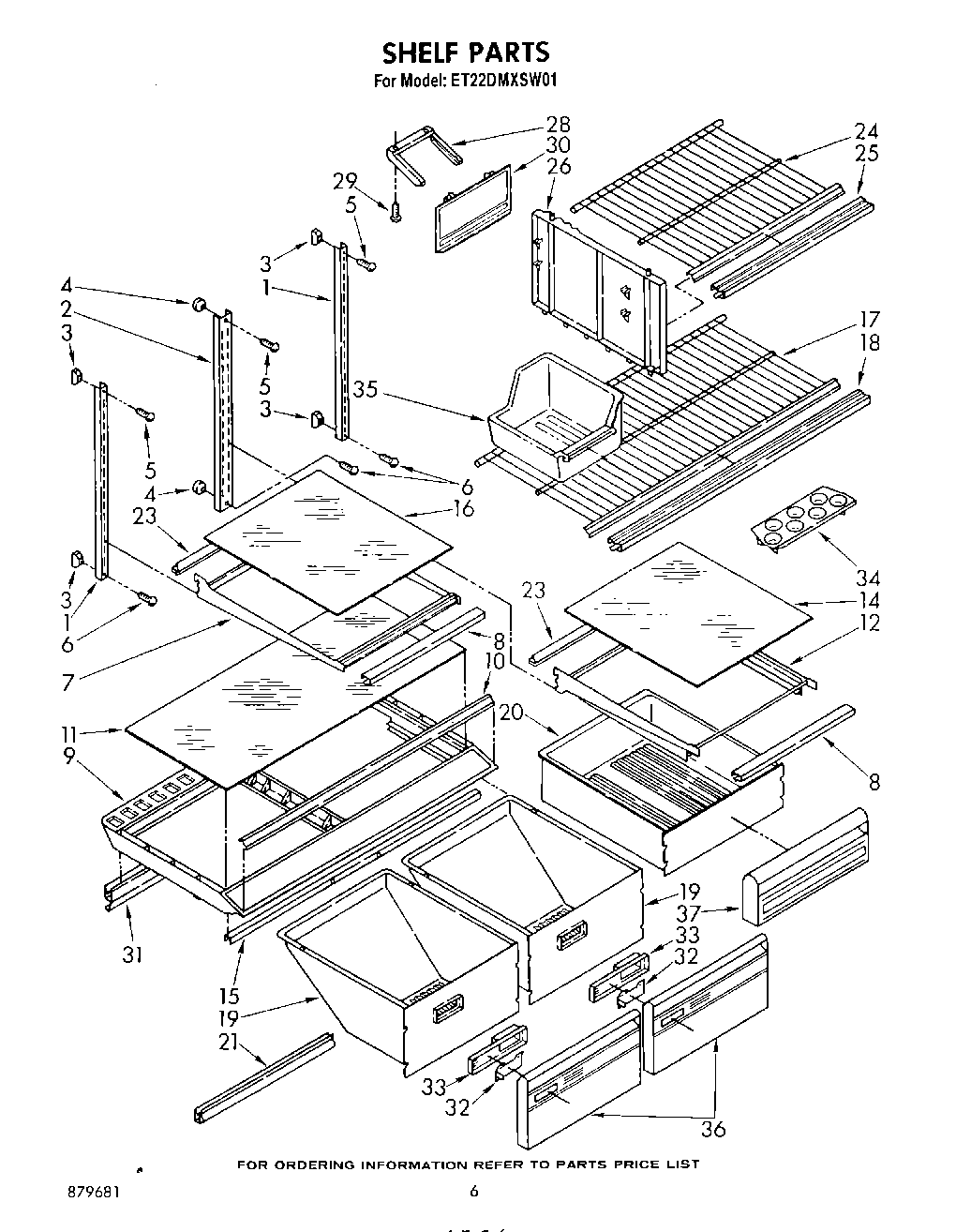

ET22DMXSW01 05 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw, 8-32 x 1-1/4 (3)
5	Screw (Repair)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (3)
8	Trim, Shelf
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
14	Glass, Meat Cover
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Trim, Shelf Front
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
23	Reflector, Shelf
24	Shelf, Freezer (Top)
25	Trim, Shelf
26	Divider
28	Slide, Ice Compartment
29	W11624204 Whirlpool Screw
30	Door, Ice Compartment
31	Gasket, Rear
32	Slide, Humidity Control
33	Housing, Humidity Control
34	Tray, Egg (2)
35	PAN-ICE
36	Crisper, Pan Front
37	Meat Pan, Front
