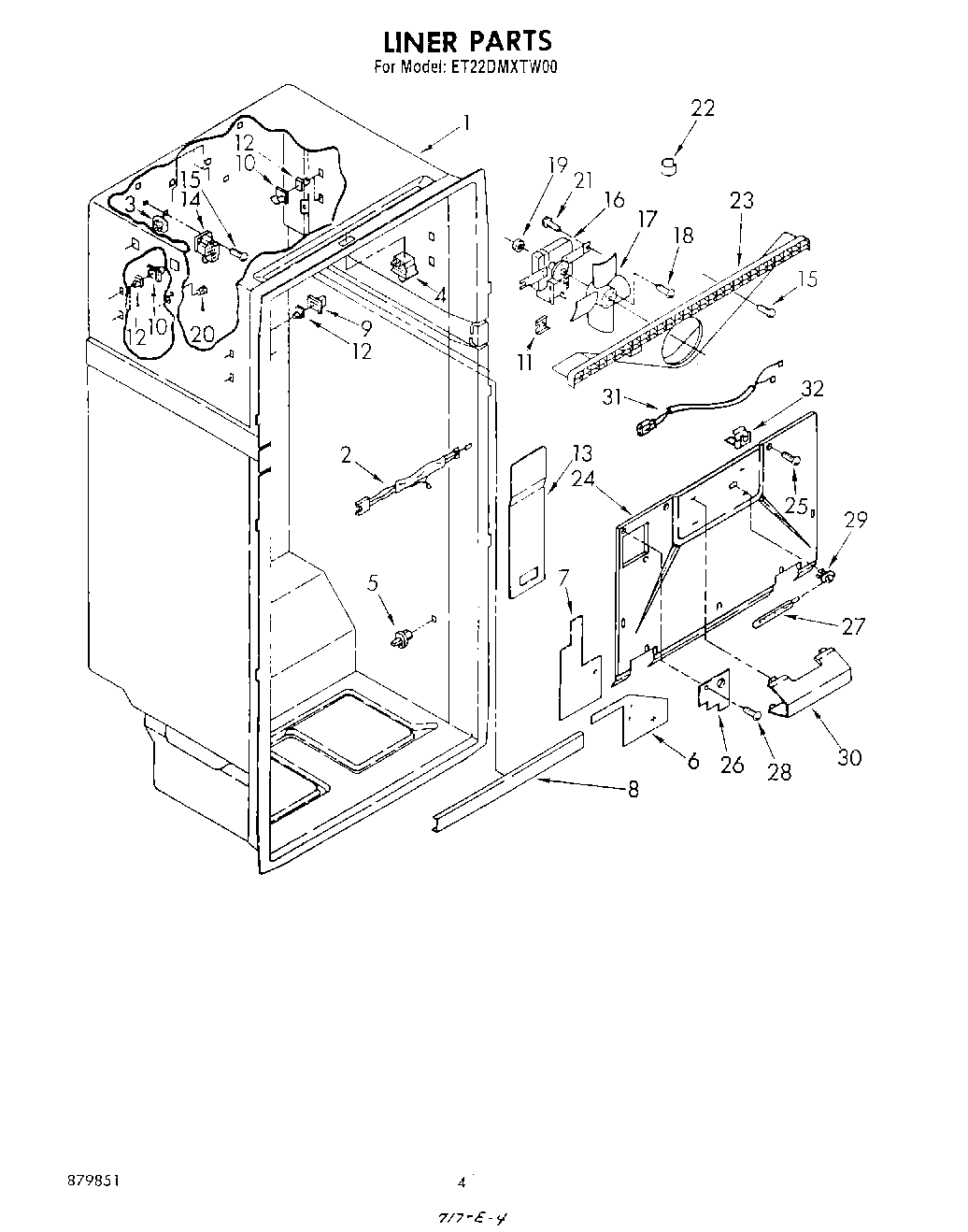

ET22DMXTG00 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Wiring, Fan Motor
3	Hole Plug (2)
4	W11384469 Whirlpool Door Switch
5	W10854959 Whirlpool Refrigerator Shelf Stud
6	Electrical, Shield
7	Electrical Shield
8	Electrical, Shield
9	Stud, Front R.S.
10	819091 Whirlpool Refrigerator Shelf Stud
11	Screw, Anchor
12	Stud, Support
13	Cover, Air Duct
14	Terminal Block, Multiple
15	W11624204 Whirlpool Screw
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
18	WP487887 Whirlpool Refrigerator Screw
19	Fan Grommet (2)
20	Grommet (8)
21	Screw (2)
22	Ground Spacer
23	Scroll, Fan
24	Evaporator Cover
25	Screw, 8-15 x 1/2 (4)
26	WP2217784 Whirlpool Refrigerator Cover
27	WP548049 Whirlpool Refrigerator Light Bulb
28	WP965173 Whirlpool Dishwasher Screw
29	Socket, Light
30	Light Lens
31	Wiring Harness, Frezzer Light
32	Clip (2)
