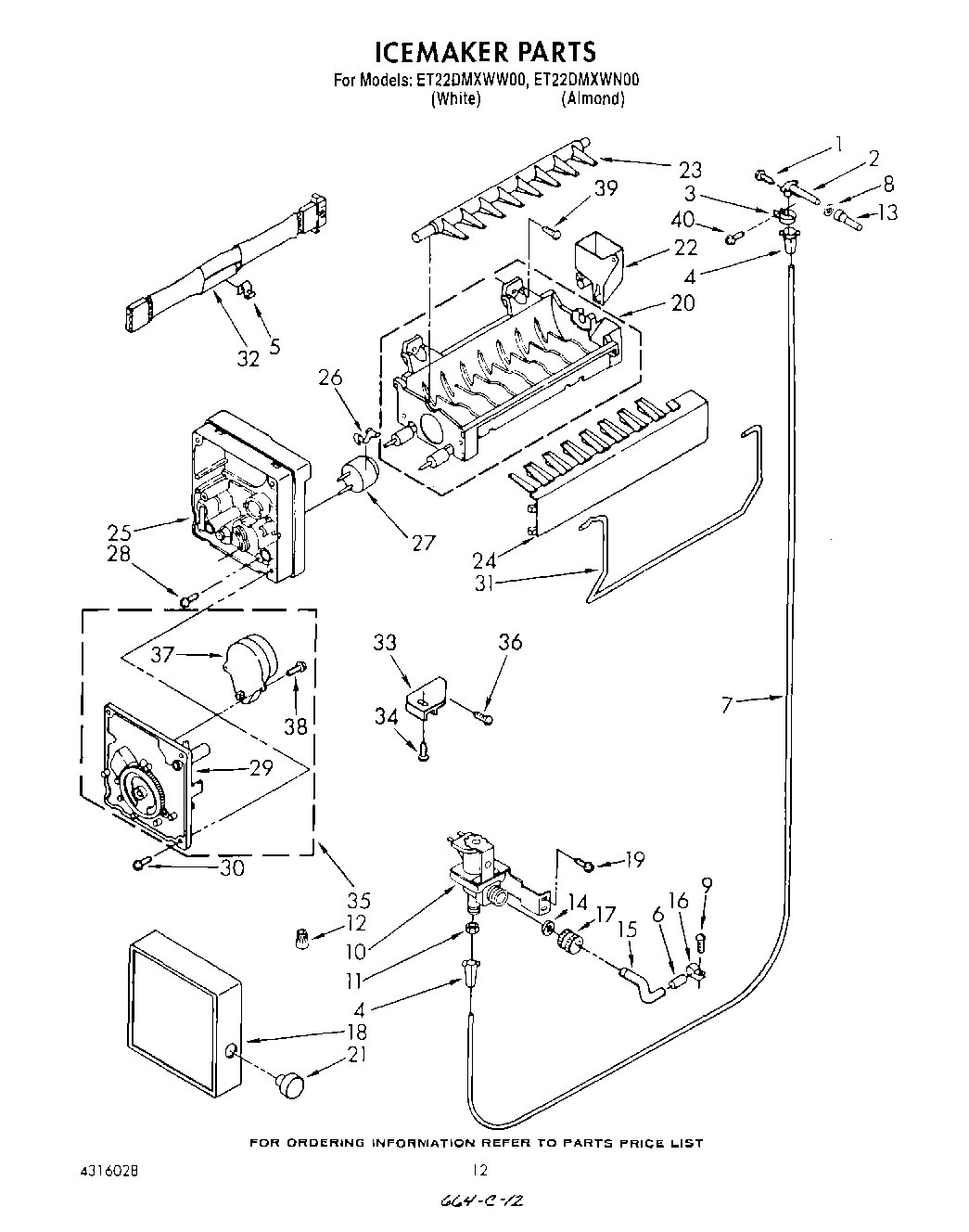

ET22DMXWN00 08 – ICEMAKER

Products

Position	Product
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
10	4318047 Whirlpool Water Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Knob, Water
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
34	WP489128 Whirlpool Refrigerator Screw
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	Screw, 8-15 x 1/2 (4)
38	489136 Whirlpool Refrigerator Screw
39	WP488163 Whirlpool Refrigerator Screw
40	WP488787 Whirlpool Refrigerator Screw
100	Torx Key
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
