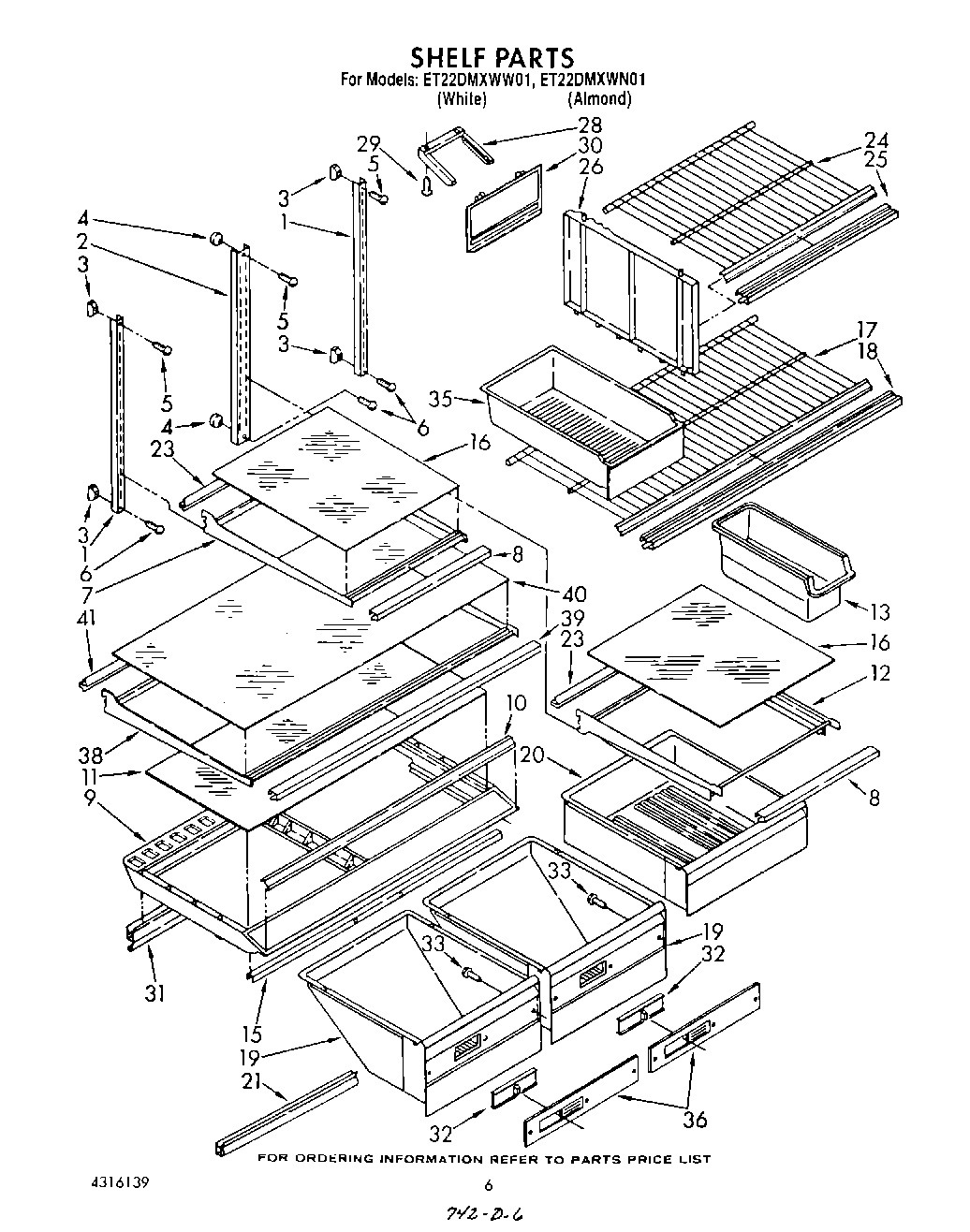

ET22DMXWN01 05 – SHELF , LIT/OPTIONAL

ET22DMXWN01 05 – SHELF , LIT/OPTIONAL

Written by

in

ET22DMXWN01 05 – SHELF , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Torx Key
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	WPL LIT1124256
	Leveler (Thinner)
	WPL LIT2148341
	WPL LIT2149861
	WPL LIT4316139
	350956 Whirlpool Spray Assembly
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (3)
8	Trim, Shelf
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	WP982704 Whirlpool Refrigerator Container
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Trim, Shelf Front
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
23	Reflector, Shelf
24	Shelf, Freezer (Top)
25	Trim, Shelf
26	Divider
28	Slide, Ice Compartment
29	W11624204 Whirlpool Screw
30	Door, Ice Compartment
31	Gasket, Rear
32	Slide
33	Screw (3)
35	PAN-ICE
36	Crisper Pan, Front
38	Shelf, Full Cantilever
39	Trim, Shelf
40	Glass, Full Shelf
41	WP72107 Whirlpool Touchup
41	799344 Whirlpool Refrigerator Paint
41	72017 Whirlpool Appliance Touch-Up Paint White
41	72032 Whirlpool Touch Up Paint Black
41	WPL 876029
41	Almond (Uncut)
41	Reflector, Shelf
41	WP503695 Whirlpool Refrigerator Sealer
41	WPL 799833
41	WP505587 Whirlpool Refrigerator Sealer
41	876370 Whirlpool Refrigerator Insulation
41	WP542638 Whirlpool Refrigerator Grease
41	TAPE, VINYL (3/4 X 108“)
41	606755 Whirlpool Refrigerator Bag
41	511873 Whirlpool Refrigerator Paint
41	212643 Whirlpool Refrigerator Permagum Sealer
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	833938 Whirlpool Refrigerator Terminal
